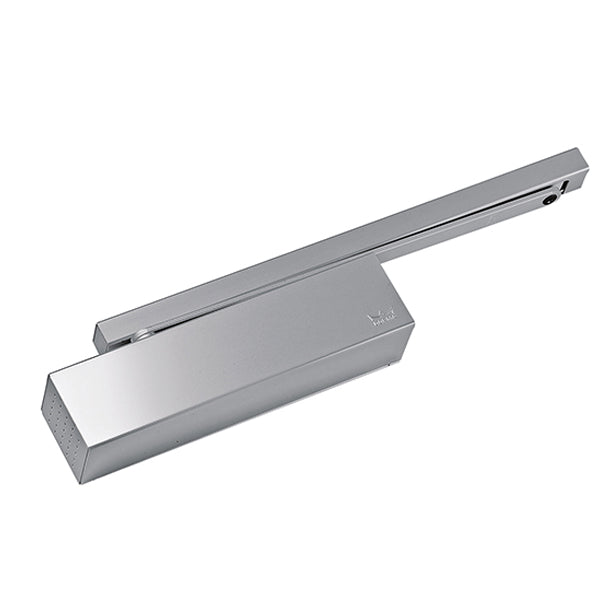

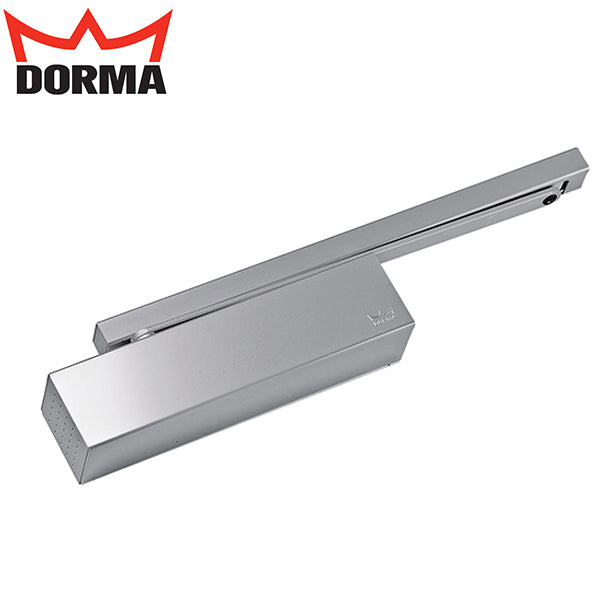

DORMA - TS93 - Hydraulic Door Closer - Back Check Function - Regular Arm - Size 1-5 - Push Side Saffit Mounted - Grade 1
DORMA - TS93 - Hydraulic Door Closer - Back Check Function - Regular Arm - Size 1-5 - Push Side Saffit Mounted - Grade 1
Quantity
Couldn't load pickup availability
Doors equipped with the TS93 will open much easier than doors with rack and pinion closers with track arms. The TS93 is a closer with regular arm operating efficiency and track arm aesthetics. Adjustable delayed action extends the closing cycle to allow unobstructed pass through opening.
Push side installation
When necessary, push side installation provides the benefits of track arm assemblies with the closer mounted to the door and the track mounted to the stop, creating a more tamper-resistant application.
Adjustable Spring sizes for barrier free requirements
The TS9315 will be available with field adjustable spring power from size 1 to 5 for barrier-free requirements.
Hydraulic backcheck
The adjustable backcheck prevents uncontrolled opening of door.
More Information Below:
View full details
Details
Specifications:
- Available as TS9315 closers for interior and exterior barrier-free requirements (adjustable size 1–5).
- Available as TS9356 closers for greater closing force for exceptionally wide, tall, or heavy doors (size 5–6 +50% adjustment).
- Adjustable backcheck prevents uncontrolled opening of door.
- Adjustable delayed action extends the closing cycle to allow unobstructed pas sage through opening.
- SN3 sex nuts supplied standard for 1-3/4" thick door
- Certified to the requirements of ANSI/BHMA A156.4 Grade 1.
- UL10C listed for positive pressure.
- Meets the requirements of ANSI/BHMA A117.1 and ADA for barrierfree accessibility.
- California State Fire Marshall Approved (CSFM).
