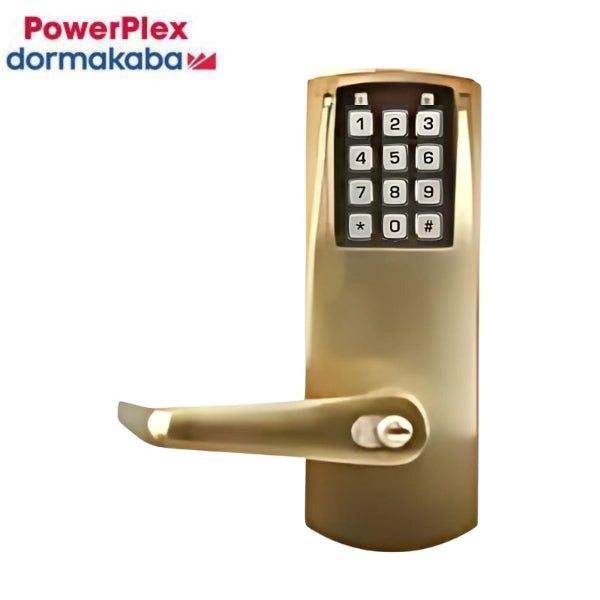

• Dormakaba PowerPlex P2032XSLL-613-41 electronic cylindrical lock front view

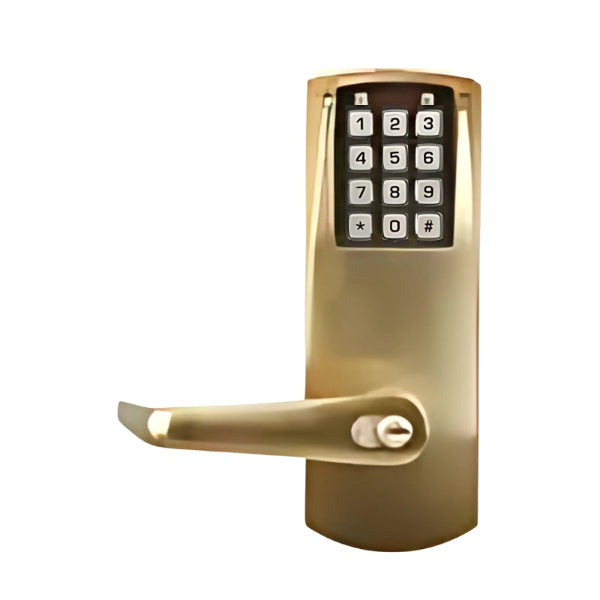

  • Keypad and lever of Dormakaba P2032XSLL-613-41 in oil rubbed bronze finish
1 2
Dormakaba - PowerPlex

PowerPlex - P2032XSLL - Electronic Self Powered Cylindrical Lock - 100 Codes - Schlage 'C' KIL - 2-3/8 Backset - 1/2 In Latch - Oil Rubbed Bronze Finish (613)

PowerPlex - P2032XSLL - Electronic Self Powered Cylindrical Lock - 100 Codes - Schlage 'C' KIL - 2-3/8 Backset - 1/2 In Latch - Oil Rubbed Bronze Finish (613)

In stock
SKU KABA-P2032XSLL61341 NSID 77482
$642.50$771.00On Sale You save $128.50 (17%)
Get it shipped Today! Order within:

The Dormakaba PowerPlex P2032XSLL-613-41 is a self-powered electronic cylindrical lock designed for commercial applications requiring secure, keyless entry. Utilizing PowerStar™ technology, it generates its own power through lever operation, eliminating the need for batteries or external wiring. This lock offers a robust solution for facilities aiming to enhance security while minimizing maintenance. Its oil-rubbed bronze finish provides a classic aesthetic, suitable for various architectural styles. The lock supports up to 100 user codes and includes a Schlage C Key-In-Lever (KIL) cylinder for mechanical key override.

Specifications:

  • Model Number: P2032XSLL-613-41

  • Series: PowerPlex 2000

  • Lock Type: Cylindrical

  • Backset: 2-3/8" (60 mm)

  • Latch Throw: 1/2" (13 mm)

  • Finish: Oil Rubbed Bronze (613)

  • Key Override: Schlage C KIL Cylinder included

  • User Codes: Supports up to 100 unique PIN codes

  • Audit Trail: Stores the last 1,000 events (software required for access)

  • Power Source: Self-powered via PowerStar™ technology; no batteries required

  • Operation Modes:

    • PIN access

    • Passage mode (toggle on/off)

    • Lockout mode

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

  • Authority Levels: Five programmable levels, including Master, Manager, Access User, Service, and Maintenance

  • Code Parameters:

    • Code length: 4 to 8 digits

    • Anti-tamper lockout: Adjustable from 3 to 9 invalid attempts; lockout period adjustable from 0 to 90 seconds

    • Re-lock time: Adjustable from 2 to 20 seconds

  • Handing: Non-handed; pre-assembled for left-hand doors, easily field reversible

  • Door Thickness Compatibility: 1-3/4" (44 mm) to 2-1/4" (57 mm)

  • Installation: Fits standard ASA 161 door prep with three additional through-bore holes; suitable for wood or metal doors

  • Certifications:

    • ANSI/BHMA Grade 1

    • UL 10C fire rated

    • ADA compliant

  • Environmental Rating: Suitable for indoor and outdoor use; operational temperature range from -31°F (-35°C) to 151°F (66°C)

    •
