*Discontinued* DynoTech - 750060 - RG59 + 2DC - Siamese CCA Cable - 500ft - White

*Discontinued* DynoTech - 750060 - RG59 + 2DC - Siamese CCA Cable - 500ft - White

Discontinued
SKU DYN-750060 NSID 17038
$67.50

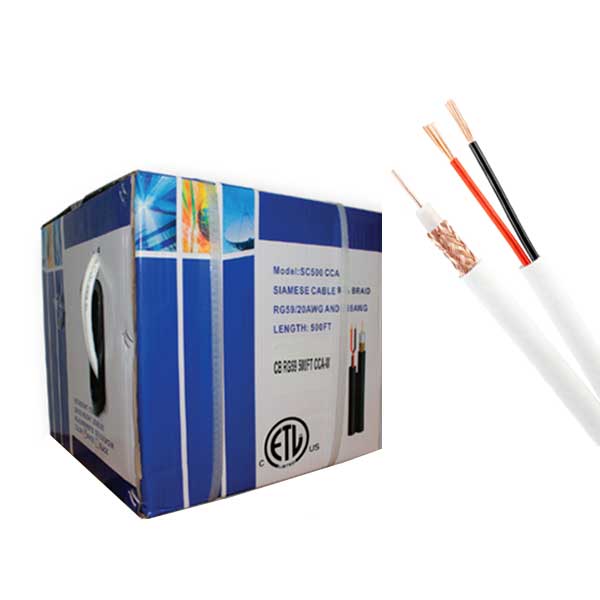

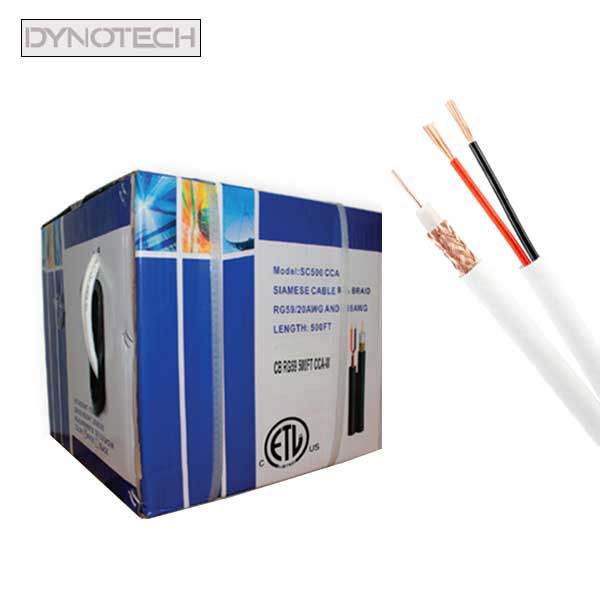

This is a DynoTech 500ft RG59+2DC Siamese CCA Cable with a white finish. Siamese cables make CCTV camera installation easier by carrying video over the coax, and power over the 18/2. This RG59 coax cable features a 20 AWG copper clad steel center conductor for a truly clean video signal. The 95 percentage copper braid ensures longer distance and greater signal reliability. Used for CL1, CL2, CM, CMX and CMG installations.

Features

  • 500ft long
  • White
  • Pull Box

View full details

Details

Specifications

Center Conductor 20AWG(0.81mm) Copper Clad Aluminum
Insulator 3.66mm Foam Polyester
Braid Shield 95% coverage (128x0.12mm) CCA
Power wire 2x18AWG (7x0.38mm) Stranded CCA
Power wire Insulator Polyester in black & red
Jacket Thickness 0.95mm Diameter 6.0mm
PVC CM Rating
Length 500 Feet



Downloads

Specifications Sheet
