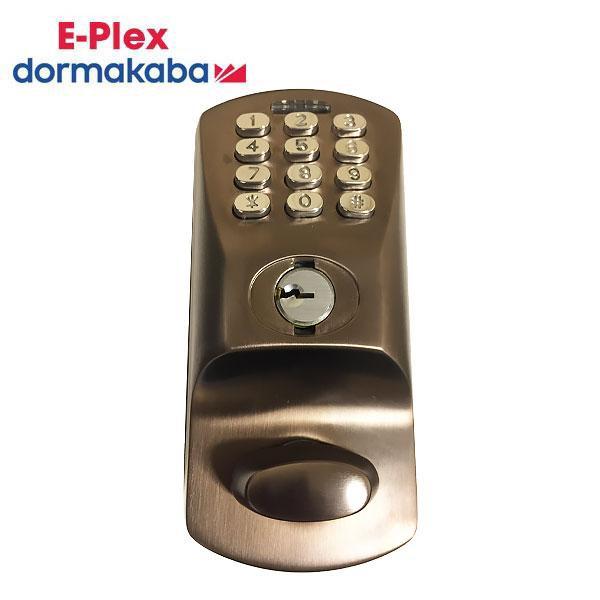

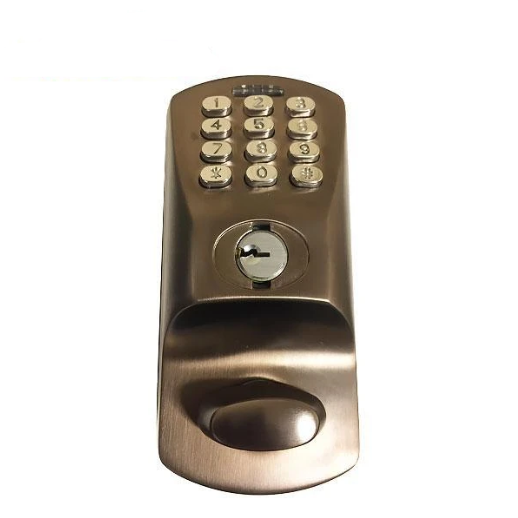

*Discontinued* E-Plex - 1502 - Electronic Pushbutton Keyless Deadbolt Lock - Schlage 'C' - Adjustable Backset - Dark Bronze - Grade 2

*Discontinued* E-Plex - 1502 - Electronic Pushbutton Keyless Deadbolt Lock - Schlage 'C' - Adjustable Backset - Dark Bronze - Grade 2

Discontinued
SKU KABA-E150274441 NSID 2826
$246.93

The E-Plex 1500 Series provides exterior access by PIN code, while allowing free egress. This small, sleek keyless (with override) electronic pushbutton deadbolt lock replaces existing deadbolt and eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

Features:

  • Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
  • Multiple Users—100 Codes
  • The most recent 1,000 lock events are recorded in memory, including the use of mechanical key override. Software is required to view audit events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
  • Key Override: 1539 6-pin cylinder; Schlage "C" Keyway
  • PIN access
  • Authority levels allow who has access to specific lock operations, including: Master, Manager, Service User, Access User, Maintenance Unit User
  • Code length–adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time—adjustable from 2 to 20 seconds


View full details

Details

Specifications:

Construction:

 Heavy-duty Grade 2 lockset, solid brass cast exterior housing with deadbolt, metal pushbuttons

Locking Device:

 1" (25 mm) Tubular Deadbolt, flat front face plate Adjustable 2⅜" (60 mm) to 2¾" (70 mm) backset

Numeric Keypad:

 Vandalism and attack resistant, metal pushbuttons

Handing:

 Thumbturn

Finish:

 Dark bronze 744

Key Override:

 1539 6-pin cylinder; Schlage "C" Keyway

Backset:

 Adjustable 2⅜" (60 mm) or 2¾" (70 mm)

Minimum Stile Recommended:

 4" (102 mm)

Door Preparation:

 ASA 161—easily installs on door preparation with one additional through bore hole; wood or metal doors

Door Thickness:

 1⅝" (41 mm) to 2" (50 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 2 Certified or dust, rain, humidity, and salt spray corrosion tests

Fire Rating:

Meets UL 10C on fire-rated doors up to and including three hours UL fire-rated deadbolt

Warranty:

2 year manufacturer warranty

Downloads:


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
