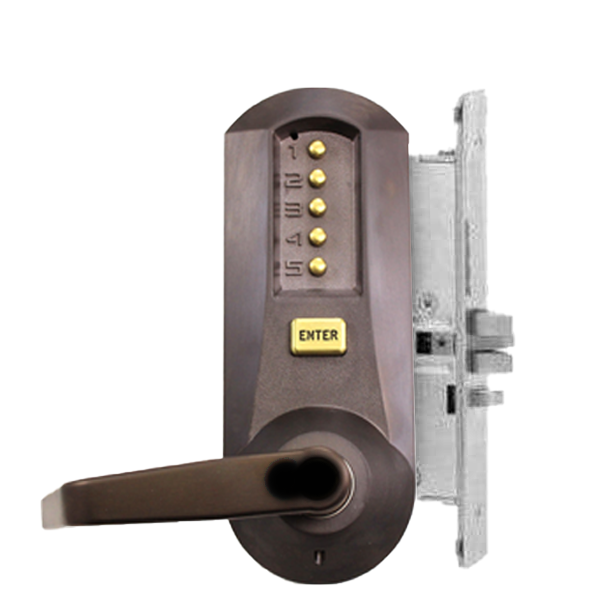

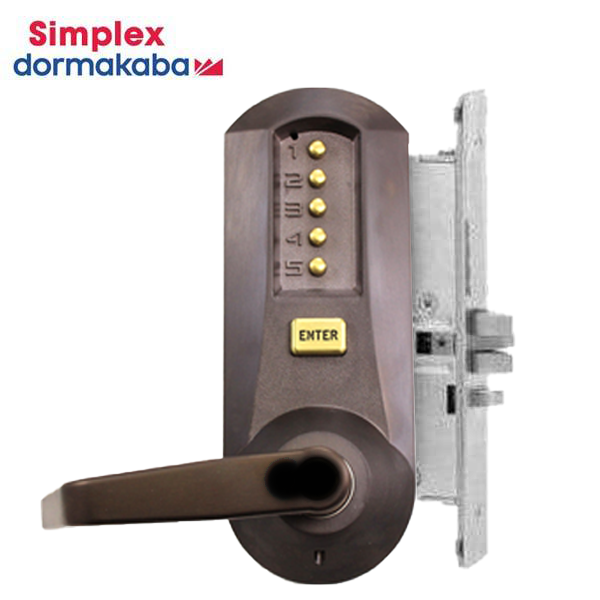

Simplex - 5066R - Mechanical Pushbutton Mortise Lever Lock - LFIC - Winston Lever - 2¾" Backset - Dark Bronze - Grade 1

Simplex - 5066R - Mechanical Pushbutton Mortise Lever Lock - LFIC - Winston Lever - 2¾" Backset - Dark Bronze - Grade 1

In stock
SKU KABA-5066RWL-744-41 NSID 2871
$866.36$1,039.63On Sale You save $173.27 (17%)
Get it shipped Today! Order within:

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex 5000 Series provides exterior access by combination, key override, and exterior combination change, while allowing free egress. Core Not included

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing the lock from the door
  • Non-handed, pre-assembled for left-hand door installations—easily changed in the field


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

    Specifications:


    Construction:

    		 Extra heavy-duty solid cast housings; solid cast levers, ADA-compliant levers, and wear tested for extensive use on indoor and outdoor applications

    Locking Device:

    		 Std Mortise, 1¼” (32 mm) face plate, no deadbolt (non-handed)

    Numeric Keypad:

    		 Vandal resistant, metal pushbuttons

    Handing:

    		 Non-handed, pre-assembled for left-hand door installations—easily changed in the field

    Finish:

    		 Dark Bronze w/ Brass Accents

    Key Override:

    		 LFIC, Sargent; core not included

    Backset:

    		 2¾" (70 mm)

    Latch:

    		 ½" (13 mm) latch, ¾" (19 mm) latch (optional)

    Minimum Stile Recommended:

    		 5" (127 mm)

    Door Preparation:

    		 Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

    Door Thickness:

    		 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).

    Accessibility Standard:

    Americans with Disabilities Act (ADA)

    Certification:

    ANSI/BHMA Grade 1 Certified

    Fire Rating:

    3-hour UL/ULC fire rating for "A" label doors

    Warranty:

    3 years manufacturer warranty
