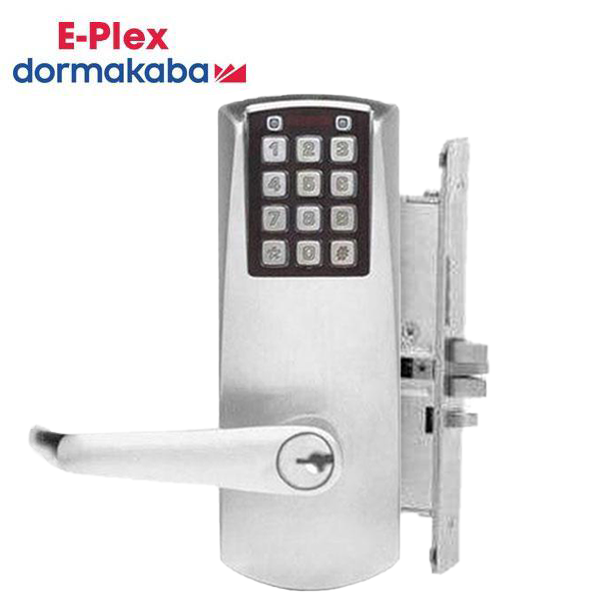

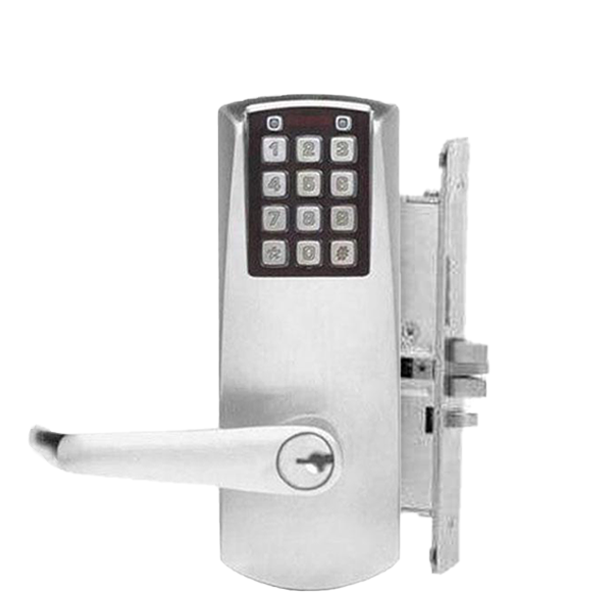

E-Plex - E2067XS - Electronic Pushbutton Mortise Deadbolt Lever Set - Schlage 'C' - 2¾" Backset - Satin Chrome - Grade 1
E-Plex - E2067XS - Electronic Pushbutton Mortise Deadbolt Lever Set - Schlage 'C' - 2¾" Backset - Satin Chrome - Grade 1
Couldn't load pickup availability
The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Includes Deadbolt and Key Override.
Features:
- Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
- Multiple Users—100 Codes
- Non-handed; pre-assembled for left-hand door installations—easily changed in the field
- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
- Five different levels (Master, Manager, Access User, Service, Maintenance) allow who has access to specific lock functions
- Code length—adjustable to accept 4 to 8 digits
- Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time—adjustable from 2 to 20 seconds
Details
Specifications:
Construction: |
Heavy-duty commercial lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
STD Mortise 1¼" (32 mm) face plate with deadbolt (non-handed) |
Handing: |
Non-handed, pre-assembled for left-hand door installation—easily changed in the field |
Finish: |
Satin Chrome |
Key Override: |
Key-In-Lever, Cylinder (Schlage "C" Keyway) included |
Backset: |
2¾" (70 mm) backset |
Latch: |
¾" (19 mm) latch |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
ASA 86 door preparation with three additional through bore holes |
Door Thickness: |
1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
UL 10C fire rated |
Warranty: |
3 years manufacturer warranty from date of installation |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
