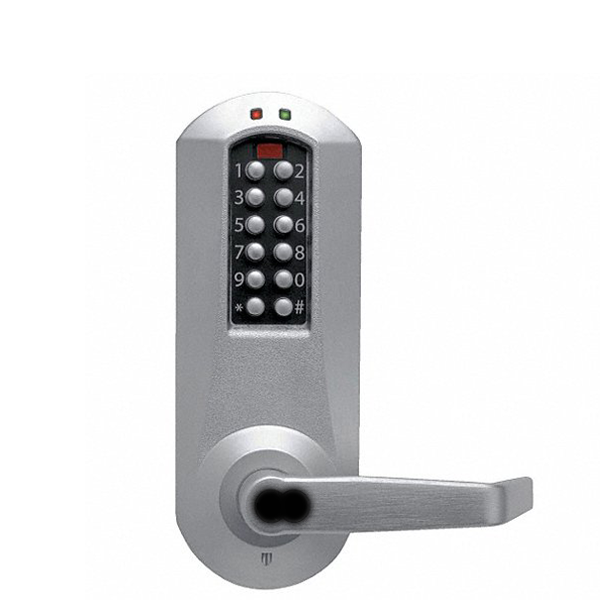

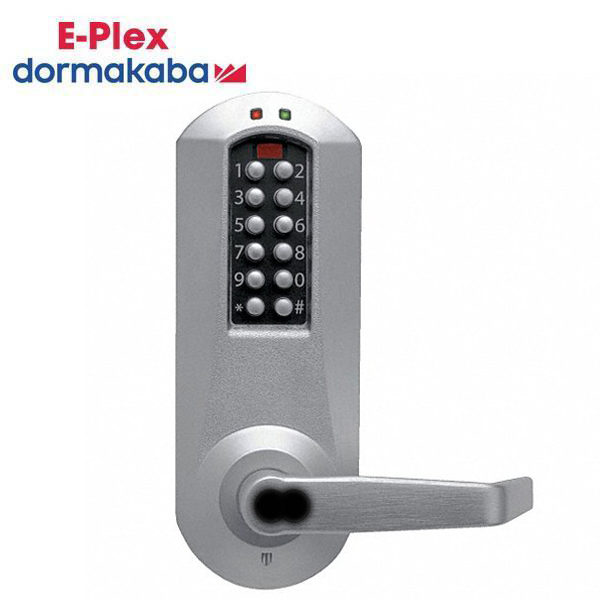

E-Plex - E5051S - Electronic Pushbutton Cylindrical Lever Set - Privacy - LFIC - 2¾" Backset - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $414.93
-
$664.80 - $414.93
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software. Core Not included
Features:
- Multiple Users—100 Codes; upgrades to 300 Codes with optional software
- The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
- Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility’s number of users and access points grow
- Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Large format removable cores
- Included Authority levels (Master, Manager, Access User, Service, Maintenance)
- Code length—Adjustable to accept 4 to 8 digits
- Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Relock time—Adjustable from 2 to 20 seconds
- LectroBolt eliminates wiring to or through the door—no risk of pinched wires
Specifications:
Construction: |
Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
Cylindrical ¾" (19 mm) throw latch, beveled face plate 2¾" (70 mm) backset with Privacy |
Handing: |
Non-handed, pre-assembled for left-hand door installations—easily changed in the field |
Finish: |
Satin Chrome 626 |
Key Override: |
LFIC Schlage Not Included |
Backset: |
2-3/4" (70mm) |
Latch: |
½" (13 mm) throw latch |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
Easily installs on wood or metal doors; four bolt installation; no wiring |
Door Thickness: |
1 3⁄8" (35 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
