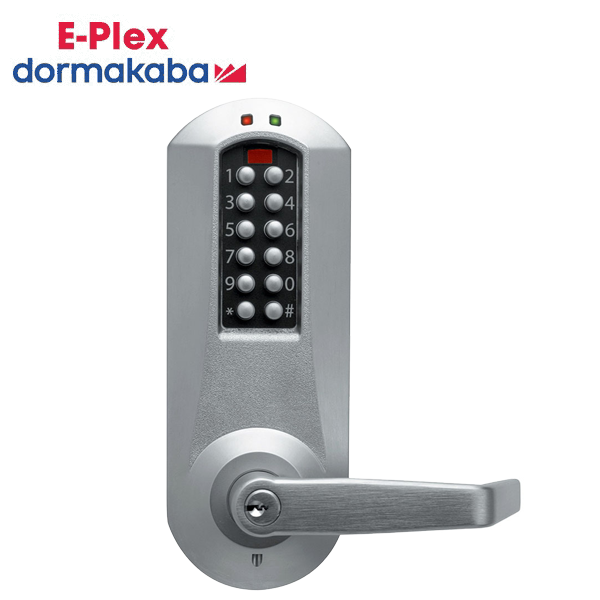

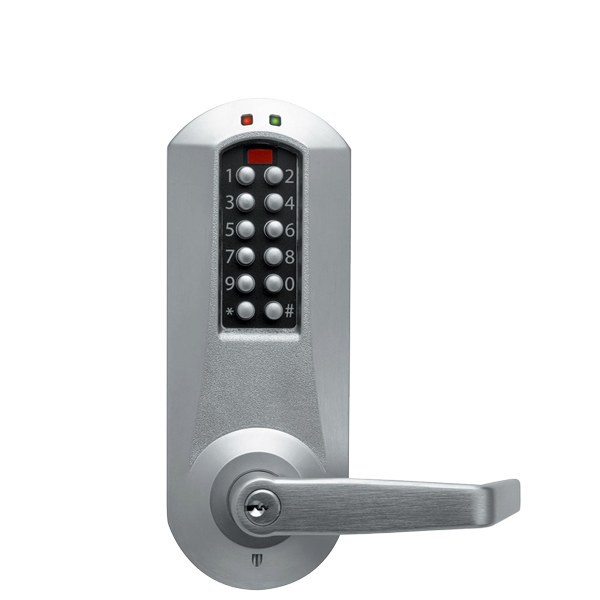

E-Plex - E5231XS - Electronic Pushbutton Cylindrical Lever Lock - Schlage 'C' - Winston Lever - 2¾" Backset - Satin Chrome - Grade 1 - UHS Hardware
E-Plex - E5231XS - Electronic Pushbutton Cylindrical Lever Lock - Schlage 'C' - Winston Lever - 2¾" Backset - Satin Chrome - Grade 1 - UHS Hardware

E-Plex - E5231XS - Electronic Pushbutton Cylindrical Lever Set - Schlage 'C' - Winston Lever Set - 2¾" Backset - Satin Chrome - Grade 1

Ships in 1 or 2 weeks
SKU: KABA-E5231-SWL-626-41
NSID: 17335

Please Note: This product has a lead time

$791.47
$793.00
$791.47


The E-Plex 5200 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

Features:

  • E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks
  • Multiple Users—3,000 Codes
  • 30,000 Audit Events
  • Locks are programmed via E-Plex Enterprise Software (not included)—provides easy management of doors and users
  • Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Key Override: Key-in-Lever cylinder
  • Access schedules—up to 16 different access schedules may be programmed into lock
  • Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock
  • PIN access
  • Five different authority levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
  • Code length—adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time—adjustable from 2 to 20 seconds


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Construction:

Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications

Locking Device:

Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Non-handed, pre-assembled for left-hand door installation—easily changed in the field

Finish:

Satin Chrome 26D (626)

Key Override:

K-I-L Kaba Cylinder (Schlage "C" Keyway) included

Backset:

2¾" (70 mm) backset

Latch:

½" (13 mm) throw latch

Minimum Stile Recommended:

5" (127 mm)

Door Preparation:

—ASA 161 door preparation— easily installs with two additional through bore holes (wood or metal doors)

Door Thickness:

1⅜" (35 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm); hardware kits included for thin and thick doors

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty
