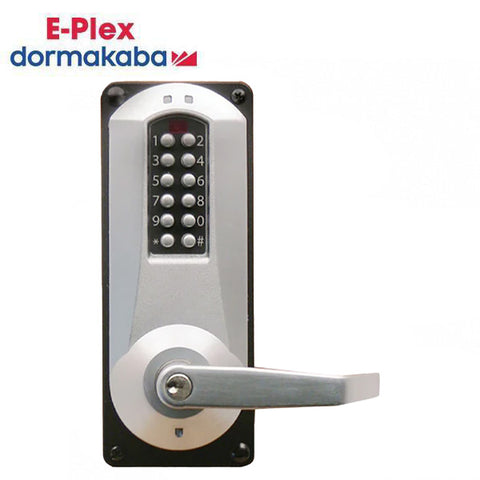

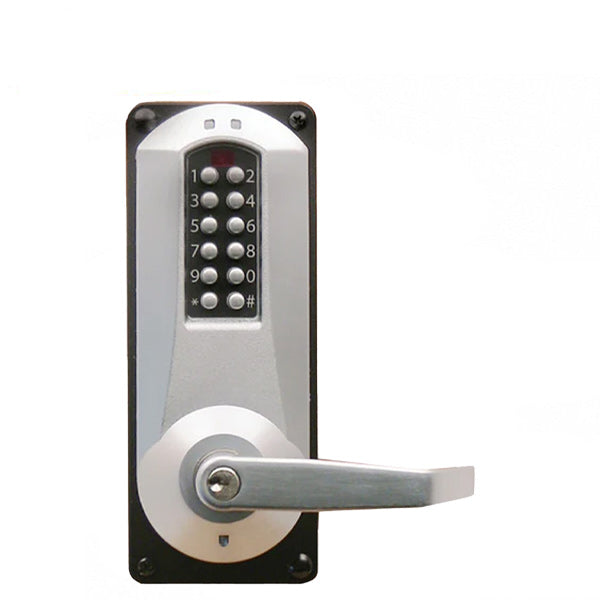

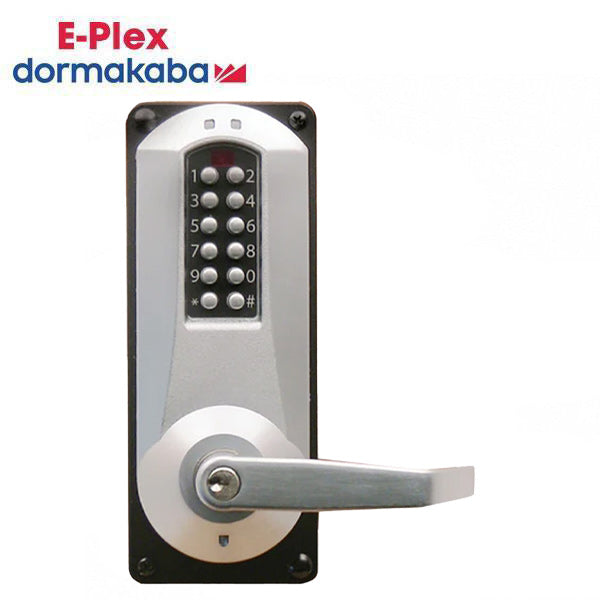

E-Plex - E5286 - Electronic Pushbutton Entry/Egress - Mortise Lock - Back to Back - 90 Keyway - Satin Chrome
E-Plex - E5286 - Electronic Pushbutton Entry/Egress - Mortise Lock - Back to Back - 90 Keyway - Satin Chrome
$1,450.49$2,162.58On Sale
You save $712.09 (33%)
Quantity
Couldn't load pickup availability
The E-Plex 5x86 Electronic pushbutton/card lock provides combination access control for both interior and exterior sides of the door, eliminating problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access control for multiple users using specific PINs (Personal Identification Numbers)—E-Plex 5086 and 5286
Features:

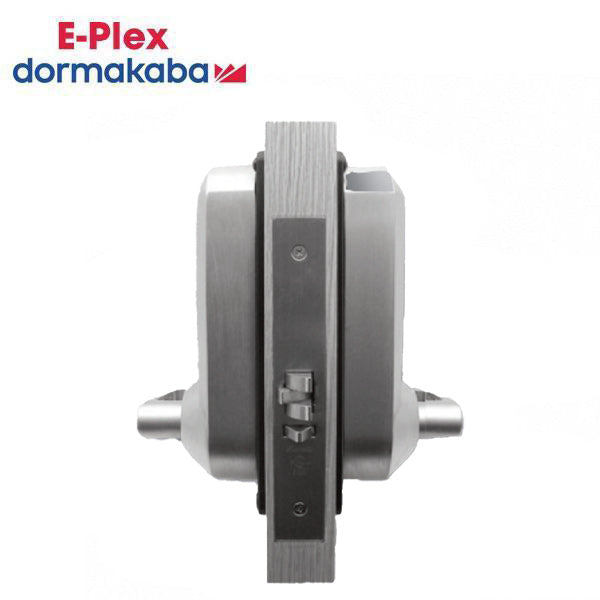

- Locking Device: ASM, American Standard Mortise with 1-1/4" (32mm) face plate
- Access Control: Electronic pushbutton/card lock provides combination access control for both interior and exterior sides of the door. Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access control for multiple users using specific PINs (Personal Identification Numbers)—E-Plex 5086 and 5286
- Number of Codes: 3,000 Access Codes with required software
- Audit Trail: 30,000 Events with required software
- Programming: Locks are programmed via required E-Plex Enterprise Software (not included) - provides easy management of doors and users
- Authority Levels: Five different levels allow those who have access to specific lock functions, including: Service codes-programmed for one-time access or "come-and-go" access for 1 to 96 hours
View full details
Details
User Parameters:
- Code Length: Adjustable to accept 4-8 digits
- Anti-tamper lockout: Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Relock time: Adjustable from 2 to 20 seconds
- Battery Operation: Batteries located behind the faceplate inside the mortise - offers quick and easy battery replacements for institutions. Four AA alkaline batteries provide up to 100,000 cycles (performance varies based on settings). Lock data is maintained if batteries fail.
- Ease of installation: Easily installs on wood or metal doors using supplied mounting plates; includes mortise mounting hardware for hollow steel doors
Specifications:
| Construction | Extra heavy-duty, mortise lockset, solid cast housings, solid-cast levers, wear tested for extensive use in indoor and outdoor applications |
| Numeric Keypad | Vandal-resistant, solid metal pushbuttons |
| Handing | Non-handed, easily changed in the field |
| Backset | 2-3/4" (70mm) backset |
| Latch | 3/4" (19mm) latch |
| Key Override | K-I-L Kaba Cylinder (Kaba 90 Keyway) included |
| Minimum Stile Recommended | 5" (127mm) |
| Door Preparation | ASA 96 door preparation with additional through-bore holes; no additional mortising of the door required |
| Door Thickness | 1-3/4" (44mm) to 2-1/4" (57mm). pre-assembled to accommodate doors 1-5/8" (41mm) to 2" (50mm0 |
| Accessibility Standard | Americans with Disabilities Act (ADA) |
| Durability | ANSI/BHMA A156.13, Grade 1 certification per F30 Asylum Function |
| Fire Rating | Three-hour UL/ULC fire door rating for "A" labeled doors |
| Environmental | Indoor / Outdoor Approved: Interior/Exterior Housing: -31°F (-35°C) to + 151°F (66°C) |
| Warranty | One-Year warranty from the date of installation; built-in warranty counter in lock memory |
| Finish | Satin Chrome |
| Keyway | Kaba 90 Keyway |
