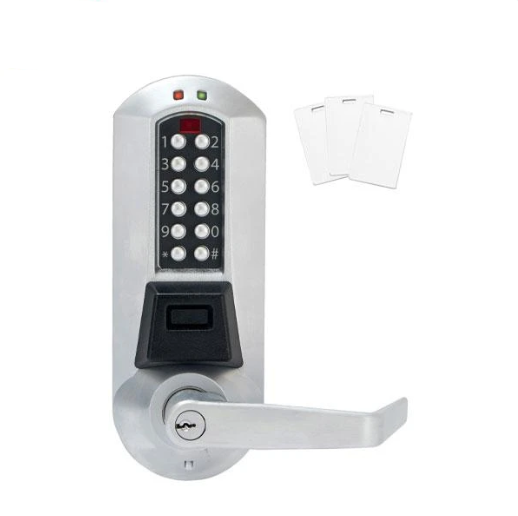

E-Plex - E5731 - Electronic PROX Pushbutton Cylindrical Lever Set - Schlage 'C' - 2¾" Backset - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $1,037.27
-
$1,127.10 - $1,037.27
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The E-Plex 5700 Electronic Pushbutton Lock Series has up to 3,000 Users, 30,000 Audit Events, and supports PIN only, Prox Card only, and PIN + Prox card.
Features:
- E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks
- 3,000 users (per door) with software; 300 in LearnLok mode
- The most recent 30,000 lock events are recorded in memory, including use of the mechanical key override
- Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users
- Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Key Override: Key-in-Lever
- Access schedules—Up to 16 different access schedules may be programmed into lock.
- Holiday/Vacation—Up to 32 different holiday/ vacation blocks may be programmed into lock
- PIN and/or Smart card access
- Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
- Code length—adjustable to accept 4 to 8 digits
- Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time—adjustable from 2 to 20 seconds
Specifications:
Construction: |
Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid castzinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed: pre-assembled for left-hand door installation—easily changed in the field |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
K-I-L Kaba Cylinder (Schlage "C" Keyway) included |
Backset: |
2¾" (70 mm) backset |
Latch: |
½" (13 mm) throw latch |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
ASA 161 (Easily installs on door preparation with two additional through bore holes (wood or metal doors) |
Door Thickness: |
3 ⁄8" (35 mm) to 2 1 ⁄4" (57 mm) Pre-assembled to accommodate doors 1 5 ⁄8" (41 mm) to 2" (50 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
