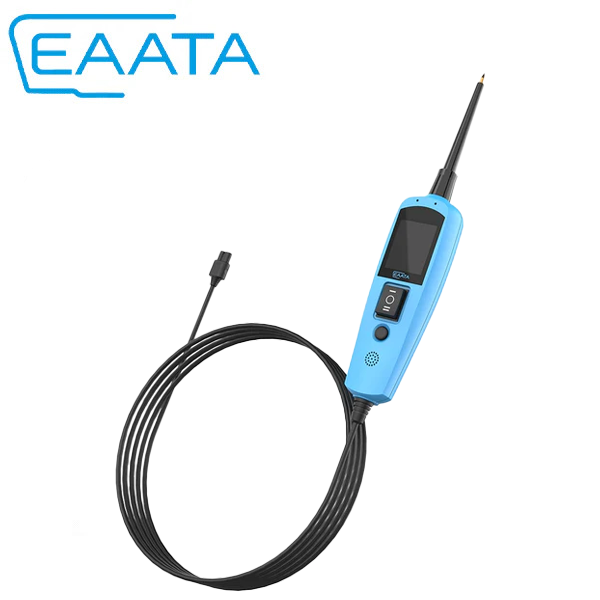

EAATA ECT PRO is a powerful automotive electrical system circuit tester, which can help technicians fast and easily troubleshoot electrical system issues, such as power injection, voltage and polarity testing, signal circuit testing, ground testing, polarity checks, continuity testing, short circuit location, and component activation.
Features:
- Performs every type of service, including power injection, measurement, ground testing, polarity checks, continuity testing, and component activation
- Easy-to-read AVOmeter allows you to read voltage, current, and resistance at the fingertip
- Simultaneously uses the hot lead and the ground lead to activate components right in your hand
- Instantly identifies positive, negative, and circuits
- Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
- Instantly checks the continuity of switches, relays, and diodes
- Circuit breaker protected
- Built-in flashlight enables you to work in the dark
- An extra 6-meter extendable cable provides excellent accessibility to test along the vehicle
- Extremely easy to use and highly reliable
Diagnosis Function:
- Voltage & Polarity Testing - Determine DC/AC voltage and Positive / Negative quickly
- Resistance Continuity Testing - LCD screen displays the value of resistance
- Circuit Signal Testing - Fast to troubleshoot the sensor circuit problem
- Components Activation in your hand, in the vehicle, or on the ground
- Testing Trailer Lights and Connections - A 10m extension cable allows you to test cars or trucks
- Checking for bad ground contacts and locating short circuits
- Diode and switching test mode - Fast test the diode component working status and determine the open circuit and continuity
Specifications:
| Display | 1.77 |
| Operating Temperature | 0 to 60°C (32°F to 140°F) |
| Storage Temperature | -40° to 70°C (-40° to 185°F) |
| External Power | 12.0 or 24.0 V power provided via vehicle battery |
| Dimensions | 165mm x 40mm x 27mm |
| Voltage Testing Range | 0 - 36V |
