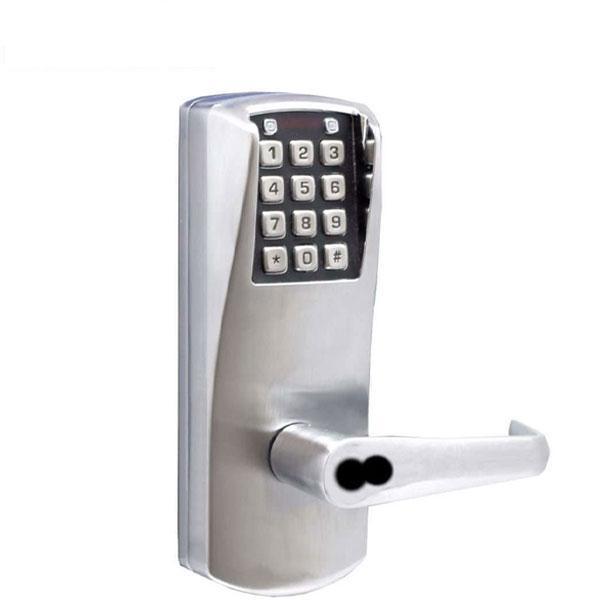

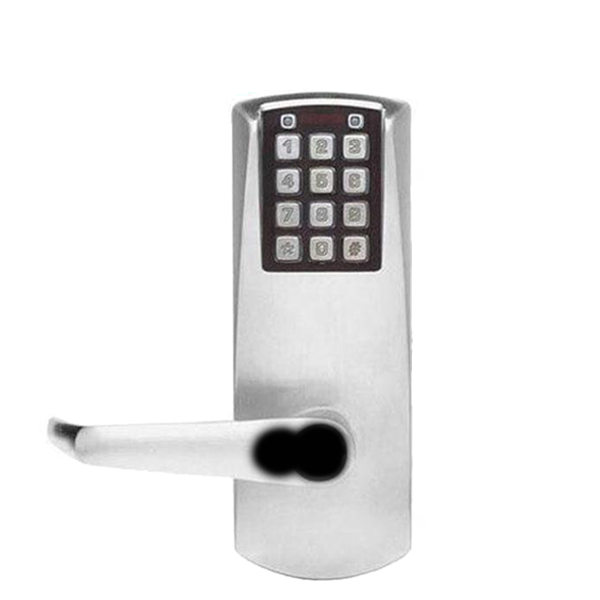

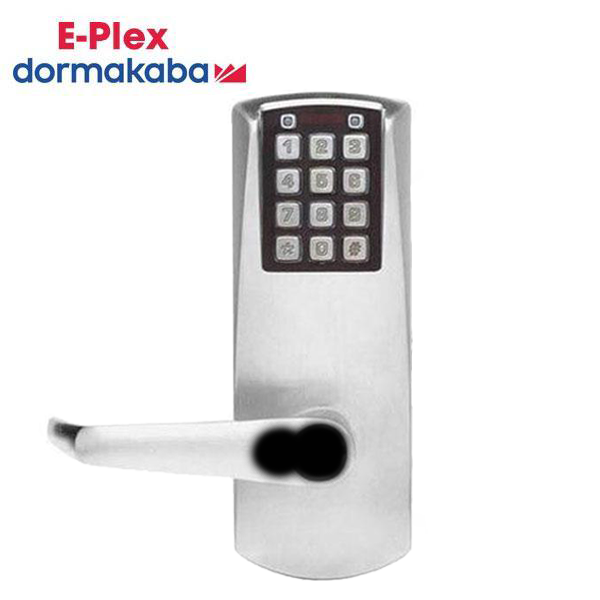

E-Plex - E2031B - Electronic Pushbutton Cylindrical Lever Lock - SFIC - 2¾" Backset - Satin Chrome - Grade 1 - UHS Hardware
E-Plex E2031 Electronic Pushbutton Lock - Backset 2-3/4 - Best IC Core (SFIC) - 626 - Satin Chrome  w/ Key Override - UHS Hardware
E-Plex - E2031B - Electronic Pushbutton Cylindrical Lever Lock - SFIC - 2¾" Backset - Satin Chrome - Grade 1 - UHS Hardware

E-Plex - E2031B - Electronic Pushbutton Cylindrical Lever Set - SFIC - 2¾" Backset - Satin Chrome - Grade 1

In Stock
SKU: KABA-E2031BLL62641
NSID: 2834

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$405.91
$444.87
$405.91

The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Cylinder NOT Included

Features:

  • Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
  • Multiple Users—100 Codes
  • Non-handed; pre-assembled for left-hand door installations—easily changed in the field
  • The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
  • PIN access
  • Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level
  • User Parameters: Code length—adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time—adjustable from 2 to 20 seconds


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Construction:

Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers.

Locking Device:

Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Non-handed, pre-assembled for left-hand door installation—easily changed in the field

Finish:

Satin Chrome 26D (626)

Key Override:

SFIC Best and Equivalents (6 or 7-pin length); cylinder not included (lever preps are not interchangeable)

Backset:

2¾" (70 mm) backset

Latch:

½" (13 mm) throw latch, floating face plate

Minimum Stile Recommended:

5" (127 mm)

Strike:

Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike

Door Preparation:

ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)

Door Thickness:

1⅜" (35 mm) to 2½" (64 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty


Downloads:


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
