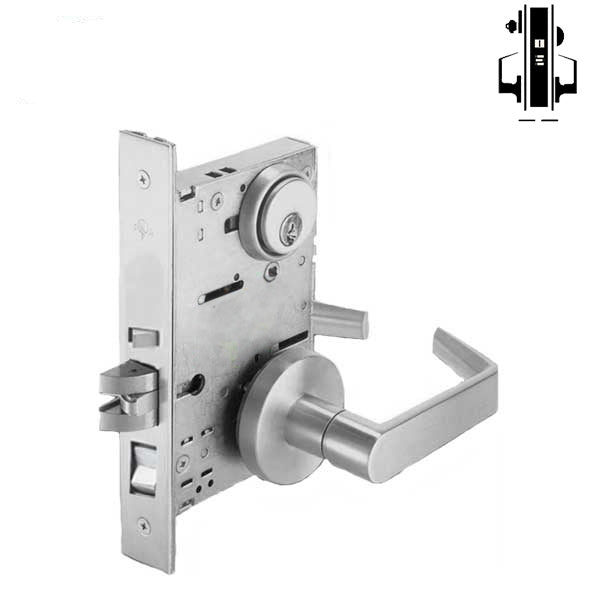

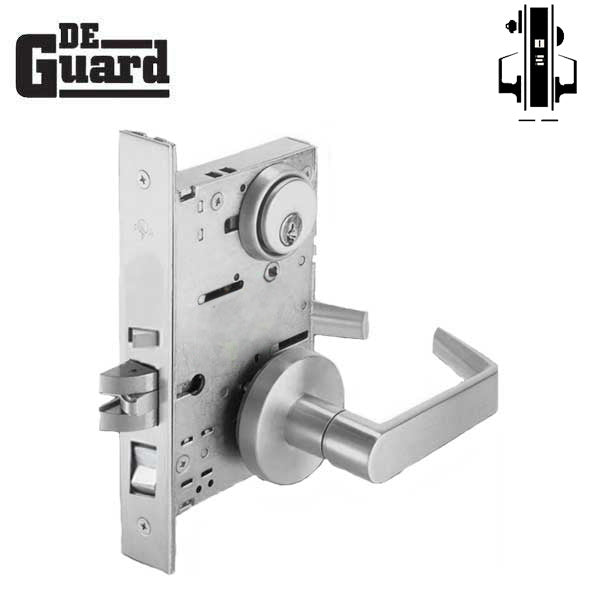

Extra Heavy Duty Mortise Door Lock - Office Entry (No Deadbolt) - Keyed Cylinder - Satin Chrome - Grade 1
Out of Stock
SKU:
DM3004-LR01-RC-26D
NSID:
22380
$131.95$178.80
MEMBER PRICE
The heavy-duty Mortise Locks are designed with a patented construction with superior quality to provide high security, easy installation, and durability. A full range of multiple functions to meet different demands for all commercial, institutional, and industrial applications.
Features:
- Full Reversible Design
- No exposed mounting screws on outside and inside trims
- Can retrofit Schlage L9000 Series mortise lock bodies
- The outside lever is a clutch freewheeling design. The lever rotates when the lever is locked, preventing excessive force from being applied to the lever. Decreasing damage over time.
- Latchbolt Anti-friction reversible tongue
Specifications:
| Function: | 04 - Office Entry - Inside always free, Outside locked by inside thumb turn and keyed - No Deadbolt |
| Construction: | Heavy-Duty wrought steel, zinc dichromate plated |
| Handing: | Field Reversible |
| Backset: | 2-3/4" (70mm) |
| Door Thickness: | 1-3/4" standard |
| C to C: | ℄ lever to ℄ cylinder is 3-7/8” (98mm) |
| Armor Faceplate: | Brass or Stainless Steel; 8” x 1-7/32” (203mm x 31.6mm); ANSI Standard A115.1 |
| Deadbolt: | 1”(25.4mm) throw; hardened stainless steel |
| Latchbolt: | 3/4”(19mm) throw; one-piece stainless steel with anti-friction reversible tongue |
| Auxiliary Latch: | Stainless steel, non-handed |
| Toggle button: | High rust-resistant chrome-plated zinc alloy |
| Trims: | LR01 Rose and Lever |
| Strike: | Brass or Stainless Steel; ANSI Standard A115.1; curved lip with dust box |
| Cylinder: | (RC) 1-1/8" standard cylinder |
| Finishes: | 26D Satin Chrome |
| Grade: | Comply with ANSI/BHMA A156.13-2017 Grade 1 requirement |
