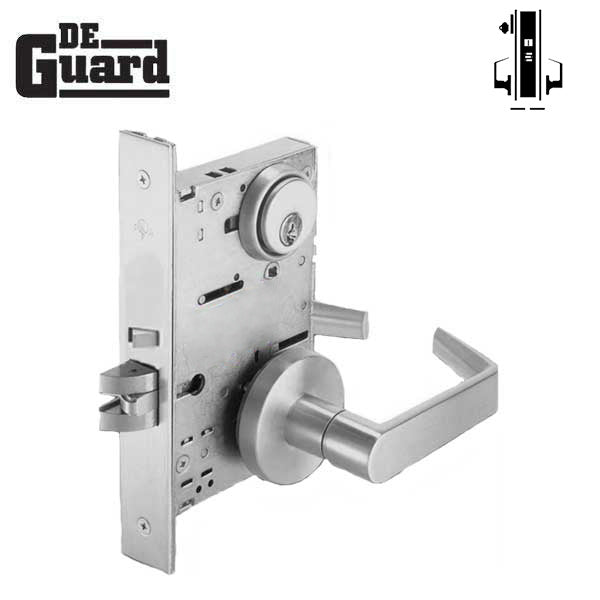

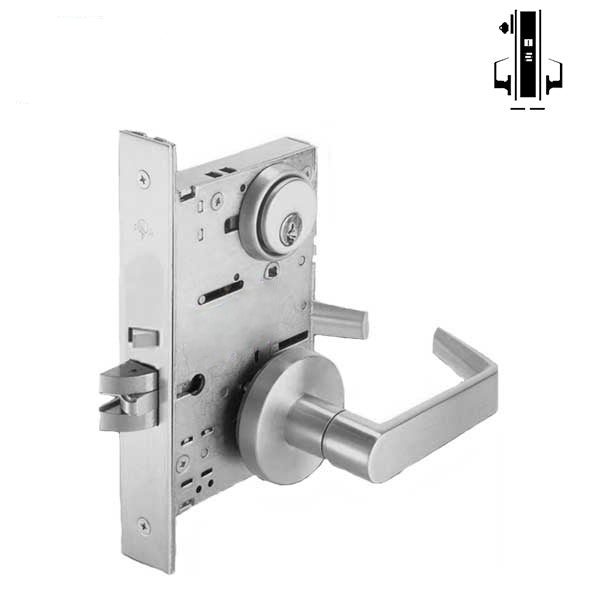

Extra Heavy Duty Mortise Door Lock - Storeroom - Keyed Cylinder - Satin Chrome - Grade 1 - UHS Hardware
Extra Heavy Duty Mortise Door Lock - Storeroom - Keyed Cylinder - Satin Chrome - Grade 1 - UHS Hardware

Extra Heavy Duty Mortise Door Lock - Storeroom - Keyed Cylinder - Satin Chrome - Grade 1

In Stock
SKU: DM2007-LR01-RC-26D
NSID: 22381

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$131.95$164.94
MEMBER PRICE
$118.76

The heavy duty Mortise Locks are designed a patented construction with superior quality to provide high security, easy installation and durability. A full range of multiple functions to meet different demands for all commercial, institutional and industrial applications.

Features:

  • Full Reversible Design
  • No exposed mounting screws on outside and inside trims
  • Can retrofit Schlage L9000 Series mortise lock bodies
  • Outside lever is clutch freewheeling design. The lever rotates when the lever is locked preventing excessive force to be applied on the lever. Decreasing damage over time.
  • Latchbolt Anti-friction reversible tongue

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Function: 07 - Storeroom - Inside Always Open, Outside Always unmovable and Keyed
Construction: Heavy Duty wrought steel, zinc dichromate plated
Handing: Field Reversible
Backset: 2-3/4" (70mm)
Door Thickness: 1-3/4" standard
C to C: ℄ lever to ℄ cylinder is 3-7/8” (98mm)
Armor Faceplate: Brass or Stainless Steel; 8” x 1-7/32” (203mm x 31.6mm); ANSI Standard A115.1
Deadbolt: 1”(25.4mm) throw; hardened stainless steel
Latchbolt: 3/4”(19mm) throw; one-piece stainless steel with anti-friction reversible tongue
Auxiliary Latch: Stainless steel, non-handed
Toggle button: High rust-resistant chrome plated zinc alloy
Trims: LR01 Rose and Lever
Strike: Brass or Stainless Steel; ANSI Standard A115.1; curve lip with dust box
Cylinder: (RC) 1-1/8" standard cylinder
Finishes: 26D Satin Chrome
Fire Rated: UL and cUL listed to Canadian safety standard for A label (3-hour fire door)
Meet UL10C fire label A and UBC 7-2(1997) requirements
Grade: Comply with ANSI/BHMA A156.13-2017 Grade 1 requirement
