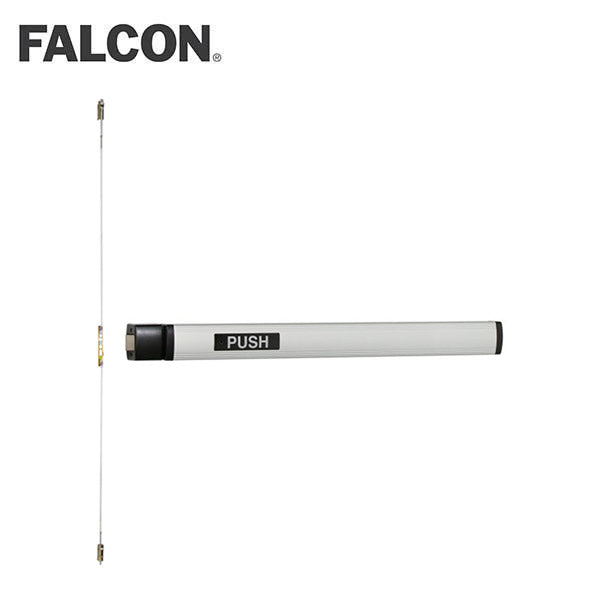

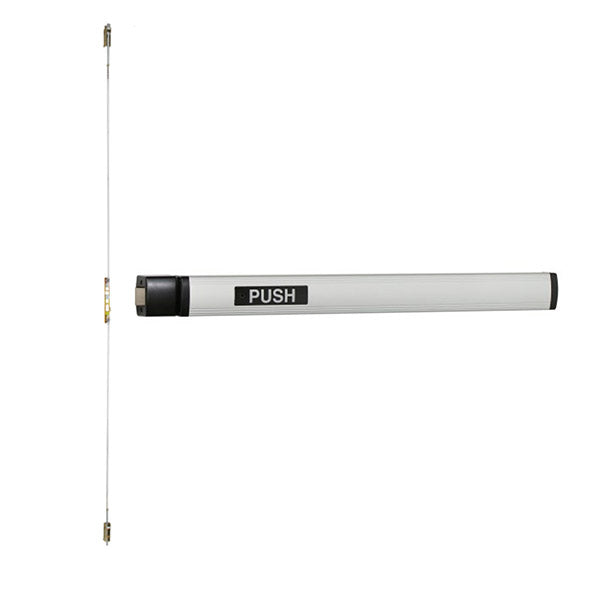

*Discontinued* Falcon - 1490EO - Concealed Vertical Rod Touchbar Exit Device - Exit Device Only - 36" - US28 - Satin Aluminum - RHR - Grade 1
*Discontinued* Falcon - 1490EO - Concealed Vertical Rod Touchbar Exit Device - Exit Device Only - 36" - US28 - Satin Aluminum - RHR - Grade 1
The 1490/1590 Series narrow stile touch bar exit devices provide safe and reliable egress ideal for 1-3/4” aluminum doors. The 1490 Series concealed vertical rod is designed for double door applications, while the 1590 Series rim device is designed for single door applications. The 1490 Series is certified to ANSI/BHMA A156.3 Grade 1 standards. Both products boast a 10-year limited warranty. Trim not included
The 1490/1590 Series are electrified to interface with building security systems. They also are suitable for retrofit applications with interior and exterior doors in commercial, multi-family, office and retail installations. For coastal code requirements, the 1490 Series exit devices provide a hurricane-rated door openings with select door manufacturers (consult the door manufacturer for more details). Hardened steel latch bolts and sturdy aluminum push bars enhance toughness. Options include three lengths, four functions, and three finishes to cover any building needs.
Details
| Handing | Right-hand reverse |
| Functions | No Outside Trim |
| Finish | US28 Anodized Aluminum |
| Strikes | PB48 top |
| Latches | RL - Rod bottom latch (standard) |
| Dogging feature | Quarter turn hex dogging standard. No threaded parts to wear out. |
| Size | 36" |
| Projections | 2 3⁄4" maximum, 2" when dogged. Pushbar height is 3". |
| Doors | 1 3⁄4" thick metal doors-specify if other than 1 3⁄4".* |
| Stile | 1 3⁄4" minimum |
| Fasteners | All mounting screws are concealed. Uses all machine screws for device and latch. |
| End caps | Durable zinc die cast, powder coated. |
| Vertical rods | 1' standard |
| ANSI | Certified ANSI A156.3 2001 Grade 1 standards. |
| Hurricane | 1490 devices are used for hurricane rated door openings. Consult door manufacturer’s listing. |
