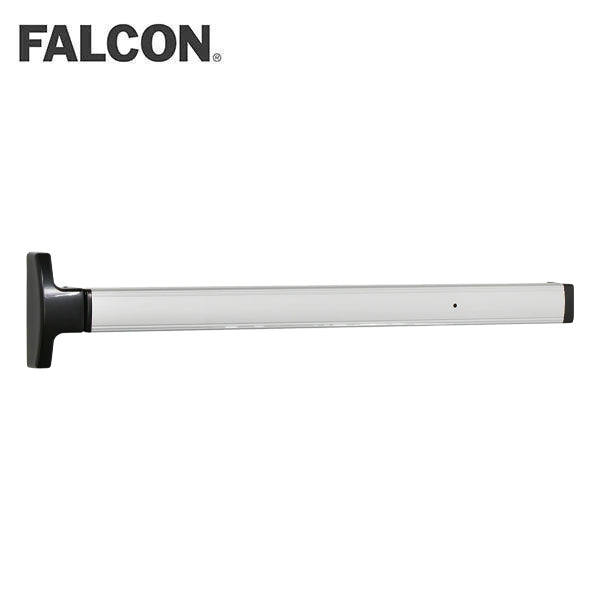

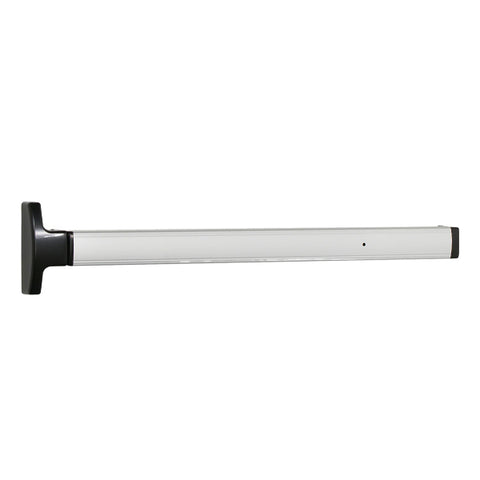

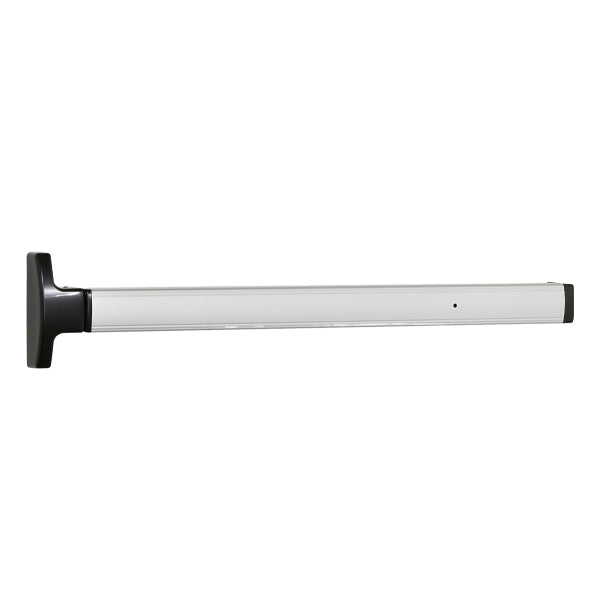

Falcon - 1690 - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad 36" Device Exit Only - Motorized Electric Latch Retraction - Field Reversible - US28 - Satin Aluminum Clear Anodized
Available to Order
SKU:
FLC-MEL1690EO-36IN-US28
NSID:
75836
- $979.52
-
$1,175.42 - $979.52
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1690 Series design is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring ideal operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 Series may also be used to retrofit a 1990 Series crossbar device.
Features:
- Cast metal cover plates and end caps provide durability in demanding applications
- Various options, functions, trims, and finishes allow for tailoring to any facility's needs
- Designed for medium to high use and abuse in institutional applications like schools, hospitals, and government facilities
Specifications:
| For Door Thickness | 1-3/4 in |
| Door Width | 36 in |
| Fits Stile Width | 1-3/4 in minimum |
| Door Height | 84 in |
| Exit Device | Concealed Vertical Rod |
| Door Handing | Right Hand Reversible |
| Finish | Satin Aluminum Clear Anodized |
| Fire Rated | No |
| Item | Concealed Vertical Rod |
| Electrical/Mechanical | Mechanical |
| Input Voltage | 12 or 24V DC |
| Standards | UL 305 |
| ADA Compliant | Yes |
| Lockdown Type | Hex Key Dogging |
| Grade | 1 |
| Hand Orientation | Non-Handed |
Downloads:
