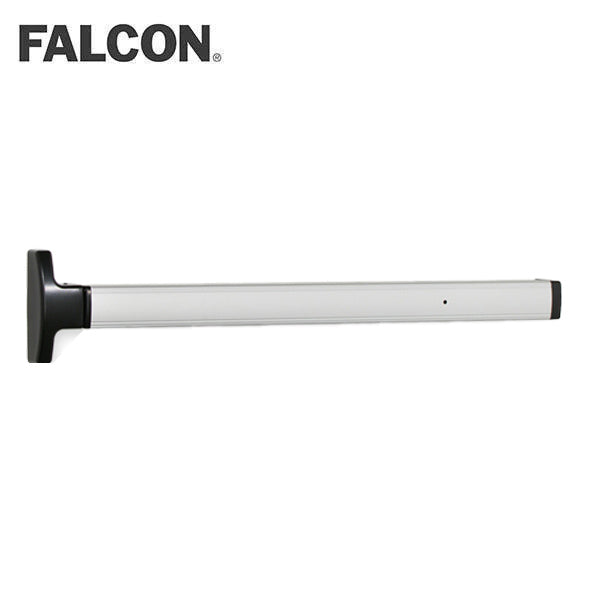

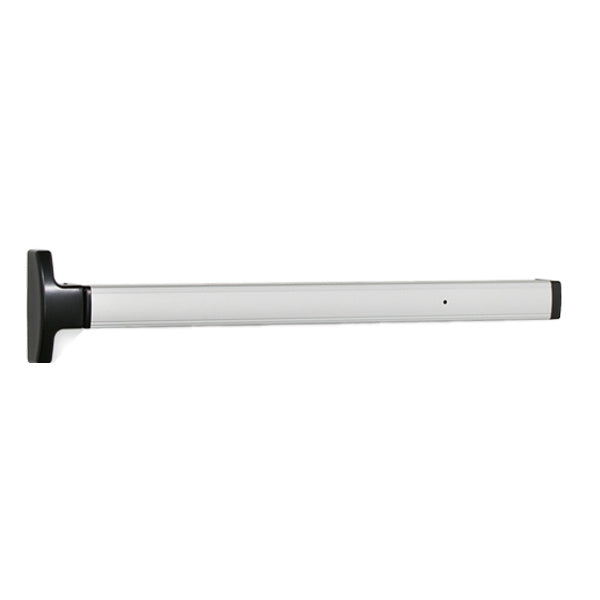

Falcon - 1690 - Vertical Rod Pushpad Exit Device - 36" - Exit Only - US28 - Satin Aluminum Clear Anodized
- $390.10
-
$468.12 - $390.10
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1690/1790 Series narrow stile touch bar exit devices provide safe and reliable egress that is ideal for aluminum doors. Both series are certified ANSI/BHMA A156.3 Grade 1 products and boast a 10-year limited warranty. The 1690 Series design is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring ideal operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 Series may also be used to retrofit a 1990 Series crossbar device.
Features:
- Cast metal cover plates and end caps provide durability in demanding applications
- Various options, functions, trims, and finishes allow for tailoring to any facility's needs
- Designed for medium to high use and abuse in institutional applications like schools, hospitals, and government facilities
Specifications:
| Color |
Satin Aluminum Clear Anodized |
|
Color Code |
628/US28 |
|
Device Length |
36 In. |
|
Fire Rated |
No |
|
Device Type |
Concealed Vertical Rod |
|
Dogging Options |
Hex Key Dogging |
|
Includes Trim |
No |
|
Physical Appearance |
Narrow Stile Pushpad |
|
Product Type |
Panics |
|
Strikes |
PB48 top |
|
Fasteners |
All machine screw mounting. Device mounting fasteners |
|
End caps |
Black powder-coated metal end caps |
|
Vertical rods |
7' standard |
|
ANSI |
Certified ANSI A156.3 grade 1 standards |
|
Hurricane |
690 devices are used for hurricane rated door openings |
