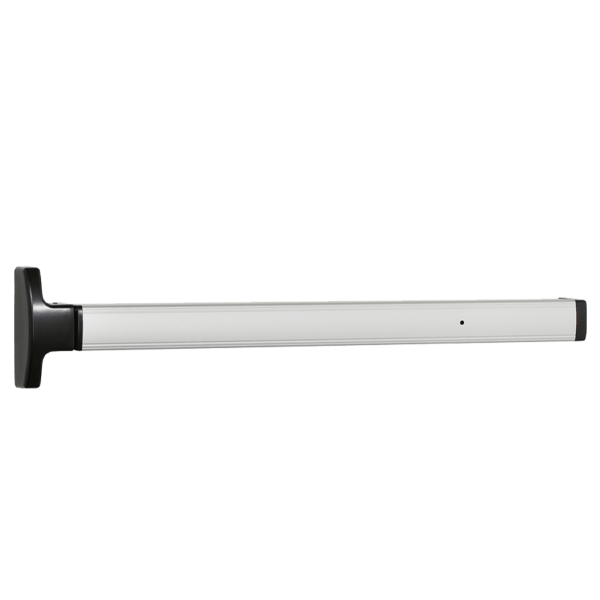

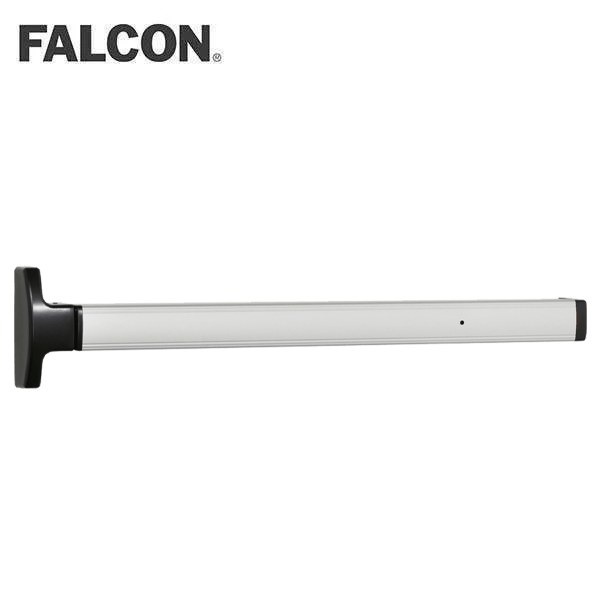

Falcon - 1692NL-OP - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 42" - Grade 1 - US28 - Satin Aluminum Clear Anodized
Available to Order
SKU:
FAL-1692NL-OP/HB-OP-42IN-US28
NSID:
79783
- $521.33
-
$625.60 - $521.33
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1690 Series narrow stile touch bar exit devices provide safe and reliable egress that is ideal for aluminum doors. It's an ANSI/BHMA A156.3 certified and a Grade 1 product. The 1690 Series design is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring ideal operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 Series may also be used to retrofit a 1990 Series crossbar device.
Features:
- Narrow Stile Compatibility: Designed specifically for narrow stile aluminum doors with 1-3/4" thickness for optimal fit and performance
- Concealed Vertical Rod Design: Vertical rods and latch mechanisms are concealed within the door stile for enhanced security and a clean appearance
- Grade 1 Durability: ANSI/BHMA A156.3 grade 1 certification ensures heavy-duty performance for demanding institutional applications
- Cast Metal Construction: Cast metal cover plates and end caps provide exceptional durability in high-abuse environments
- Night Latch/Hold Back Function: key extracts latch and holds latch back for controlled access without unlocking the exit device
- Single-Point Dogging: Quick dogging feature in housing deactivates device for unrestricted traffic flow during designated periods
- Tamper-Resistant Design: Streamlined construction with no openings eliminates tampering risks and forced entry attempts
- 10-Year Limited Manufacturer's Warranty: Comprehensive manufacturer's warranty provides long-term protection and confidence
- Designed for medium to high use and abuse in institutional applications like schools, hospitals, and government facilities
Specifications:
| Specification | Details |
|---|---|
| Brand | Falcon |
| Finish | US28 - Satin Aluminum Clear Anodized |
| Handing | Field reversible, non-handed |
| Doors | 1 3⁄4" thick metal doors |
| Fasteners | All machine screw mounting. Device mounting fasteners are concealed, and latch fasteners are exposed to the egress side. |
| End Caps | Black powder-coated metal end caps. |
| Projection | 3 3⁄8" in neutral position, 2 3⁄8" in dogged position. Pushbar height is 2 1⁄2" |
| Stile | 1 3⁄4" minimum |
| Device Type | Concealed Vertical Rod Exit Devices |
| Device Length | 42" Inch |
| Dogging Options | Hex key dogging standard, except EL where must use hold back feature on outside cylinder. |
| Strikes | PB48 top |
| Latchbolt | Standard top - SU latch. Standard bottom - hex bottom bolt |
| Standards | Certified ANSI A156.3 grade 1 standards |
