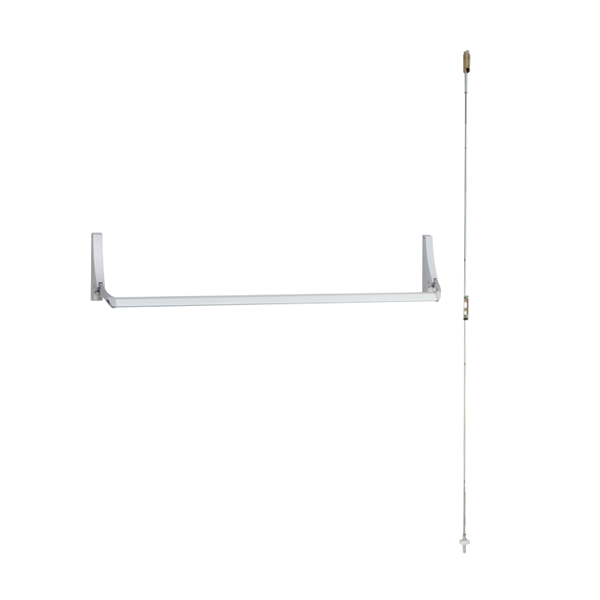

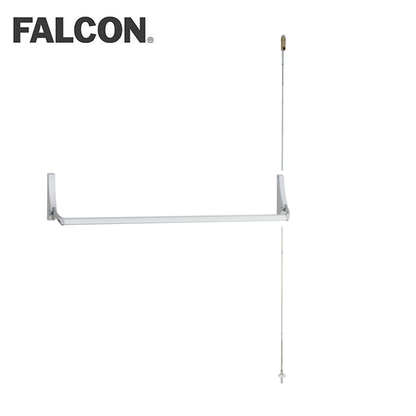

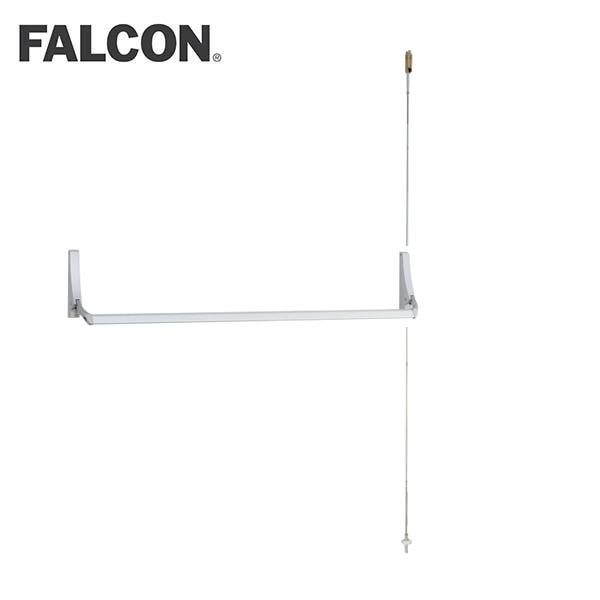

*Discontinued* Falcon - 1992NL - Concealed Vertical Rod Crossbar Device - 44" - 689 - Satin Aluminum - Non Handed

*Discontinued* Falcon - 1992NL - Concealed Vertical Rod Crossbar Device - 44" - 689 - Satin Aluminum - Non Handed

Discontinued
SKU FLC-1992NL-OP-HB-OP-44IN-P28 NSID 16917
$476.00

The 1990 Series narrow stile cross bar exit device provides safe and reliable egress that is ideal for aluminum doors. The 1990 Series concealed vertical rod is designed for double door applications and is certified to ANSI/BHMA A156.3 Grade 1 standards. It also includes a 10-year limited warranty.

More Information Below:


View full details

Details

Handing Field reversible, non-handed
Functions Cylinder only, Night Latch Function
Finish P28 689 Satin Aluminum
Strikes PB48 top
Latches Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). The device needs to be fewer bottom rod (LBR)
Dogging feature Hex dogging standard
Cylinder Rim, key entry (NL) or hold back (HB) available (field selectable)
Sizes Field adjustable width, 44" crossbar
Doors: 1 3⁄4" thick metal doors
Projections 4 3⁄8" extended, 2 1⁄2" depressed
Doors 1 3⁄4" thick metal doors
Stile 1 3⁄4" minimum
Fasteners All mounting screws are concealed
ANSI Certified ANSI A156.3 grade 1 standards
UL UL305 listed
Vertical rods 7' standard, extension rod kits available up to 10'
