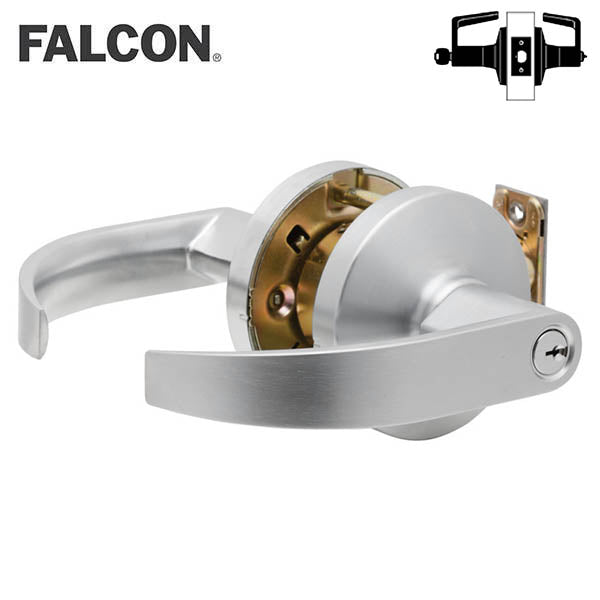

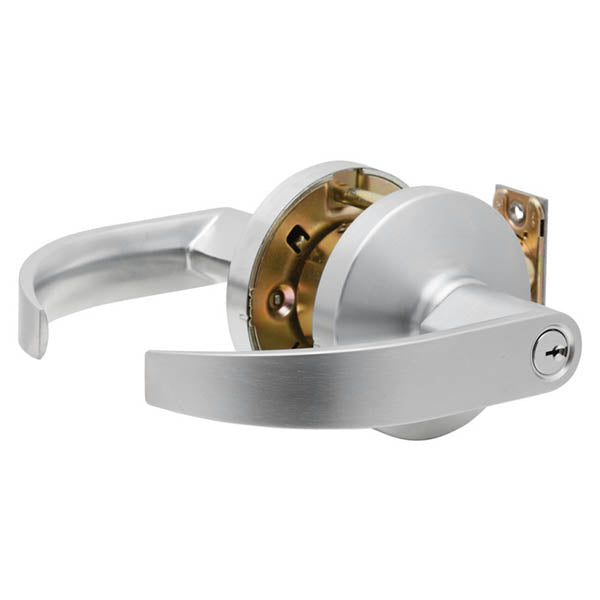

Falcon - K511PD - Cylindrical Leverset - Quantum Lever - Entry/Office - 2 3/4" Backset - Satin Chrome - Grade 2
Available to Order
SKU:
FAL-K511PD-Q-626
NSID:
68001
- $161.00
-
$193.20 - $161.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
When you need a tough, reliable lock at the right price point for a retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series lock options include an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.
Feature
- All lever designs meet ADA requirements
- Heavy wrought brass or bronze roses over steel through-bolted rose inserts
- UL Listed 3 hour
- Cylinder housings and plugs machined from solid brass
- Entry/Office - Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
- Brass or cold-formed steel construction with zinc dichromate plating for rust resistance
Specifications
| Function | Entry /Office |
| Finish | 626 - Satin Chrome |
| Screws | Wood or metal doors |
| Door thickness | 1 3⁄8" to 2" |
| Backset | 2 3⁄4" |
| Lever Style | Quantum |
| Handing |
Non-handed |
| Rose | 3-1/4" diameter |
| Latches | 3-1/4" |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | Certified ANSI/BHMA A156.2, Series 4000, Grade 2, UL Listed |
| Manufacturer's Warranty | Limited Lifetime |
