Falcon - MA101-QG - Cylinder Mortise Lock - Passage - Quantum Lever - 626 - Satin Chrome - Optional Handing - Fire Rated - Grade 1
Available to Order
SKU:
FLC-MA101-QG-626
NSID:
- $241.11
-
$289.33 - $241.11
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

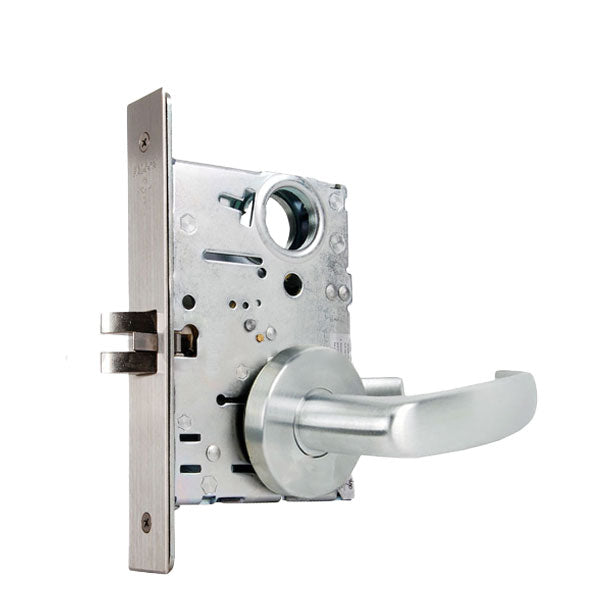

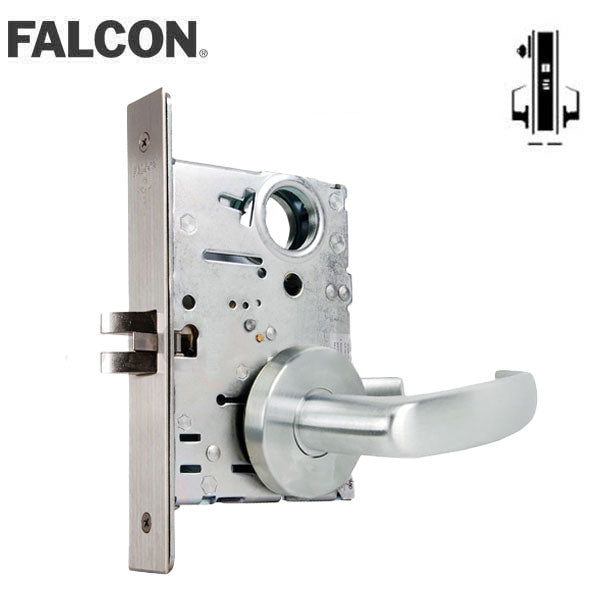

Falcon: Passage Door Mortise Lock, Quantum Lever, Gala Rose, Satin Chrome
The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon's toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications.
Features:
- Forged escutcheon for added strength
- 1" stainless steel deadbolt with security roller pins
- Two piece stainless steel anti-friction latch bolt
- Solid brass cylinder and plug
- Two piece stainless steel anti-friction latch bolt
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
- Reversible handing without opening lock chassis case*
- All lever designs meet ADA requirements
Functionality:
Latch bolt operated by knob/lever from either side at all times. Inside knob/lever always free for immediate egress.
Specifications:
| Lock Function | MA101 ANSI F01 Passage/Closet Lock |
| Handing | Right Hand Reverse |
| Levers | Quantum Lever Style |
| Rose | Falcon Gala Style |
| Door Thickness | Only accepts door thicknesses of 1 3⁄4" - 1 7⁄8" |
| Cylinder | Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. |
| Backset | 2 3⁄4" only |
| Rose Dimensions | 2 9⁄16" |
| Latch | Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection |
| Strike | Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Finish | 626 - 26D - Satin Chrome |
| Fire Rated | Listed 3-hour fire door, A label |
| ANSI | F01 |
| Certifications | Certified ANSI/BHMA 156.13, Series 1000, Grade 1 |
