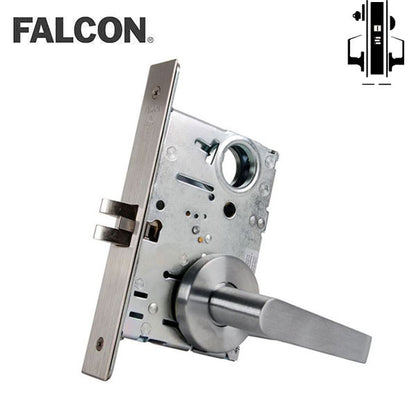

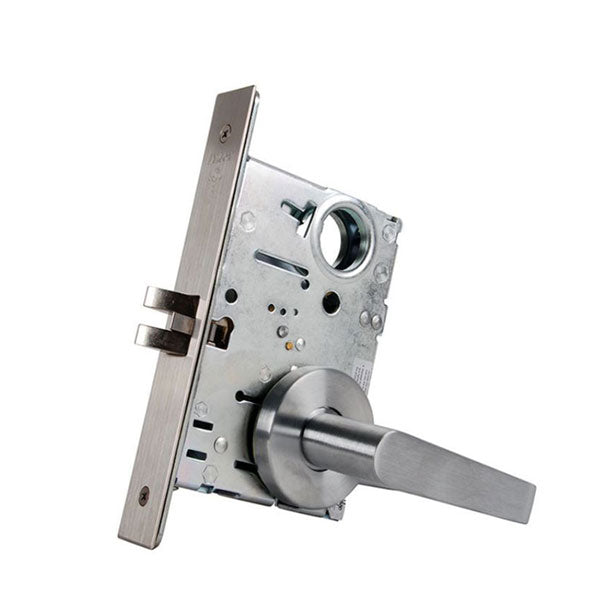

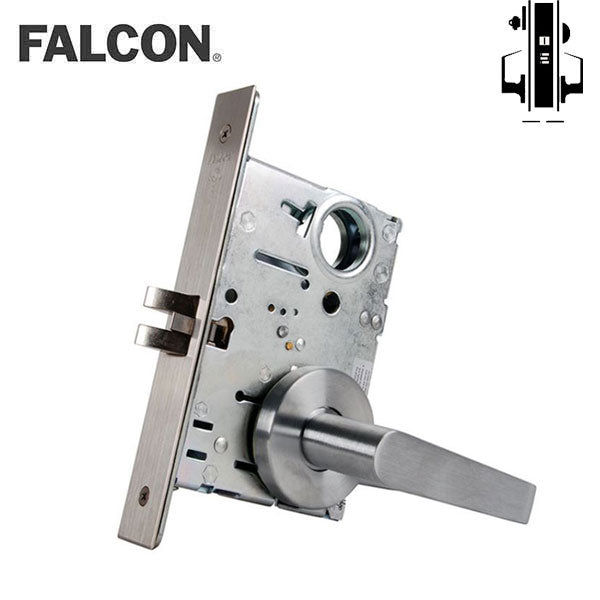

Falcon - MA521B - Cylinder Mortise Latch Bolt - Entrance - Right Handed - SFIC - Dane Lever - GALA Rose Trim - Satin Chrome - Fire Rated - Grade 1

Falcon - MA521B - Cylinder Mortise Latch Bolt - Entrance - Right Handed - SFIC - Dane Lever - GALA Rose Trim - Satin Chrome - Fire Rated - Grade 1

Available to order
SKU FLC-MA521B-DG-626 NSID 21243
$467.51
Please Note: This product ships within 7 Days



The Falcon MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specifications:


    Door thickness 1-3/4" (44mm) - 1-7/8" (47.6mm) standard
    Backset 2-3/4" (70mm)
    Strike Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed
    Latch Bolt Two-piece stainless steel, mechanical anti-friction latch bolt. 3⁄4" projection
    Dead Bolt 1" throw, stainless steel with two 13⁄16" diameter hardened steel, free-turning, saw-resistant roller
    Cylinder SFIC Less Core Prep
    Case Cold formed steel, zinc dichromate plated, .090”
    thick. Optional lead wrapping available
    Handing Right Handed -  Field Reversible
    Keyways Falcon “G” keyway standard on standard
    cylinder. “A” keyway standard on I/C cylinder.
    Fire Rating
    		 “A” Label 3 Hour Fire Doors Positive Pressure Rated
    Certifications ANSI A156.13, Grade 1, UL10B, UL10C
