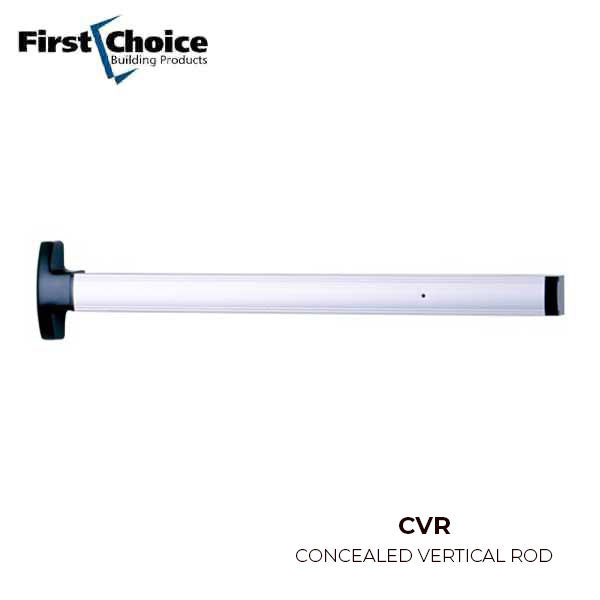

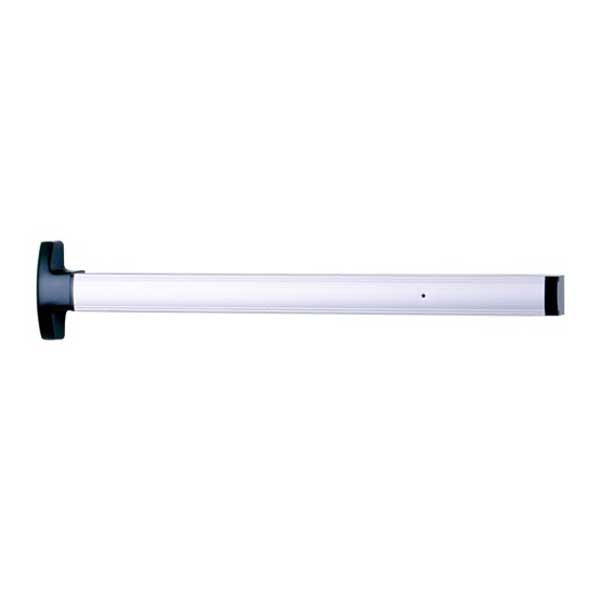

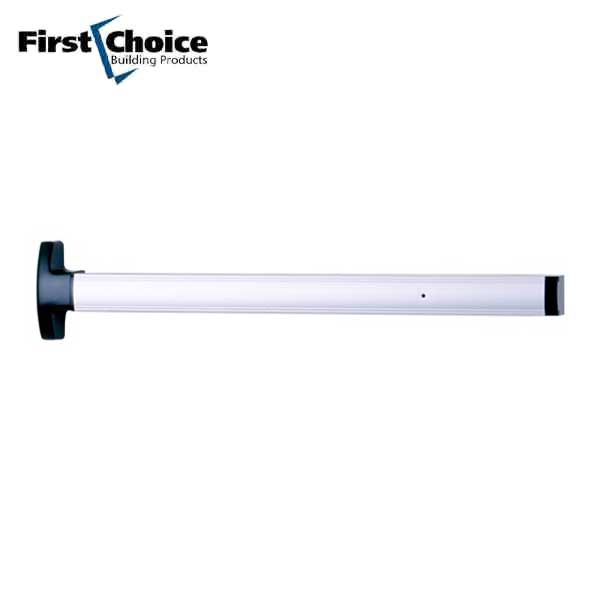

First Choice - 3690 - Concealed Vertical Rod Exit - 36" - Electric Latch Retract - Exit Only - No Trim - 24 VDC - Aluminum Anodized Finish - Grade 1
First Choice - 3690 - Concealed Vertical Rod Exit - 36" - Electric Latch Retract - Exit Only - No Trim - 24 VDC - Aluminum Anodized Finish - Grade 1
$2,566.22$3,079.46On Sale
You save $513.24 (17%)
Please Note:
This product ships within 2 Days
Quantity
Couldn't load pickup availability
Sleek and attractive, the First Choice 3690 is ANSI Grade 1 (500,000 cycles) and UL listed. With durable anodized finishes and high-performance coatings on solid metal end caps, these devices are made for tough, high traffic conditions
Features:
- Exit Device shall be First Choice series 3600 Concealed Vertical Rod.
- Designed for use on aluminum storefront doors only and not intended for wooden doors.
- Narrow Stile model utilizing low profile touch bar projecting 3” from face of door.
- Device shall use 3/8” steel vertical rods with steel latch bolts engaging stainless steel strikes to lock two points in the opening.
- Electric Latch Retract
View full details
Details
Specifications
| Trim | No Trim - Exit Only |
| Application | Narrow Stile Application |
| Bolt | 1/2” Bottom Latch Bolt Throw |
| Device lengths | 36" (1219 mm) |
| Door Width | 36" (1219 mm) |
| Hand | non-handed |
| Electric Latch Retraction | 24VDC, 16A |
| Limited Manufacturer Warranty | 2 Years |
| Fire Rated | No |
| Dimensions |
2 1/2” Push Bar Height 41 5/16” Centerline Height Typical Center Case Cover - 6 5/8” Tall by 1 1/4” Wide |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
Downloads
