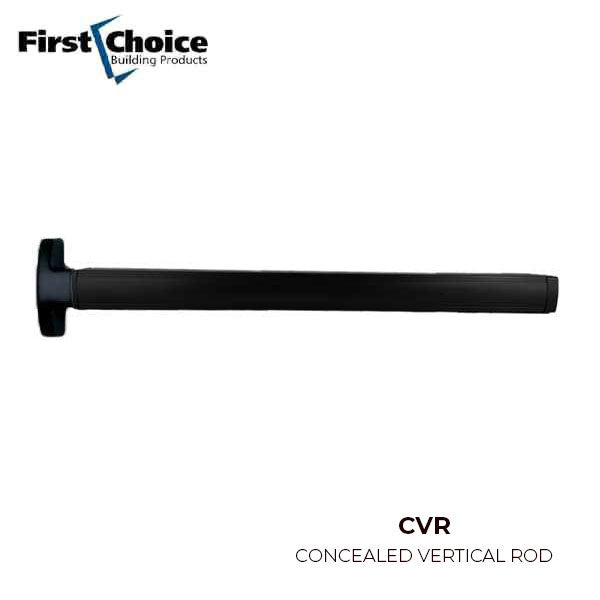

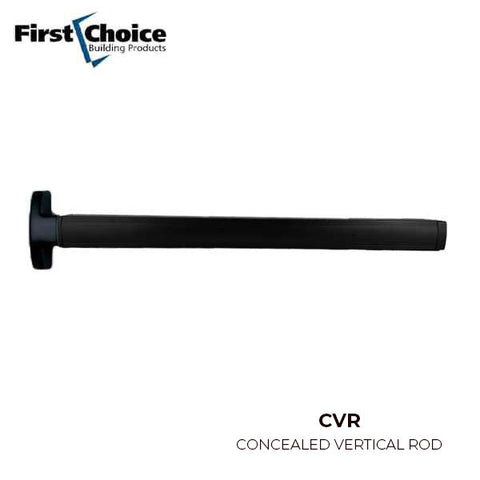

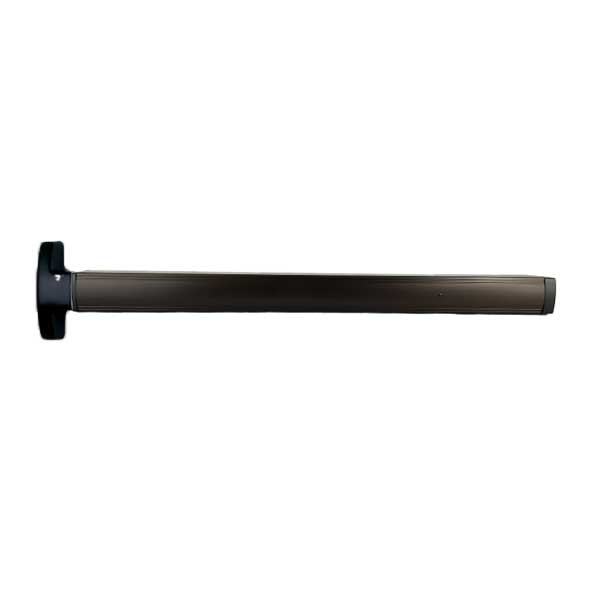

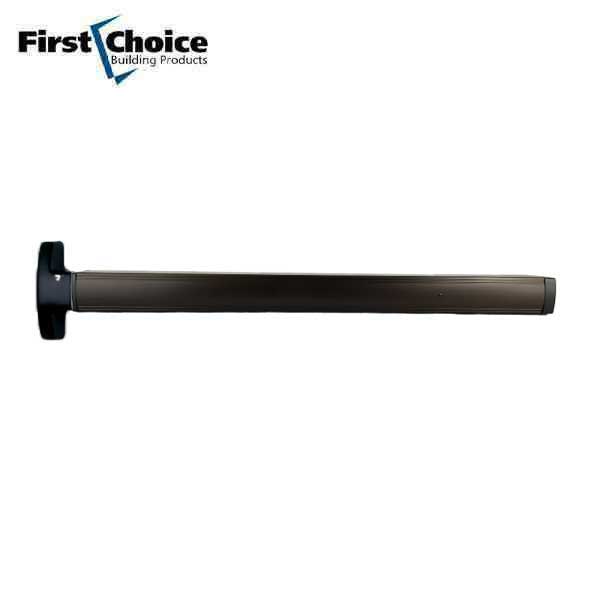

First Choice - 3692 - Concealed Vertical Rod Exit - 36"- 42" - Cylinder Prep Kit without Key Cylinder - Dark Bronze Anodized - Grade 1

First Choice - 3692 - Concealed Vertical Rod Exit - 36"- 42" - Cylinder Prep Kit without Key Cylinder - Dark Bronze Anodized - Grade 1

In stock
SKU FCH-369236-BR NSID 20410
$397.80$477.36On Sale You save $79.56 (17%)
Get it shipped Today! Order within:
Size

FCH-3692XX-BR

Sleek and attractive, the First Choice 3692 is ANSI Grade 1 (500,000 cycles) and UL listed. With durable anodized finishes and high-performance coatings on solid metal end caps, these devices are made for tough, high traffic conditions.

Features:

  • Exit Device shall be First Choice series 3600 Concealed Vertical Rod.
  • Designed for use on aluminum storefront doors only and not intended for wooden doors.
  • Narrow Stile model utilizing low profile touch bar projecting 3” from face of door.
  • Device shall use 3/8” steel vertical rods with steel latch bolts engaging stainless steel strikes to lock two points in the opening.

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Key Cylinder Preparation Include Cylinder Prep. Kit /without Key Cylinder
Application  Narrow Stile Application
Bolt 1/2” Bottom Latch Bolt Throw
Device lengths 36" - 42"
Door Width  36" - 42"
Hand non-handed
Limited Manufacturer Warranty 2 Years
Fire Rated  No
Dimensions 2 1/2” Push Bar Height
41 5/16” Centerline Height Typical
Center Case Cover - 6 5/8” Tall by 1 1/4” Wide
Certifications ANSI A156.3 – 2008 Grade 1.
