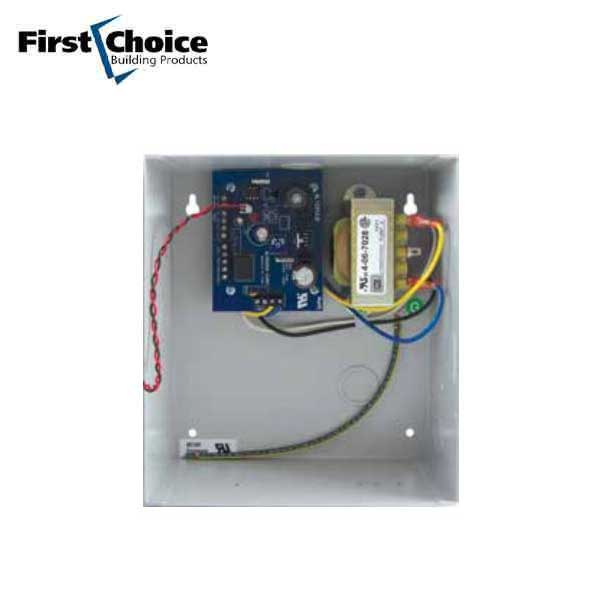

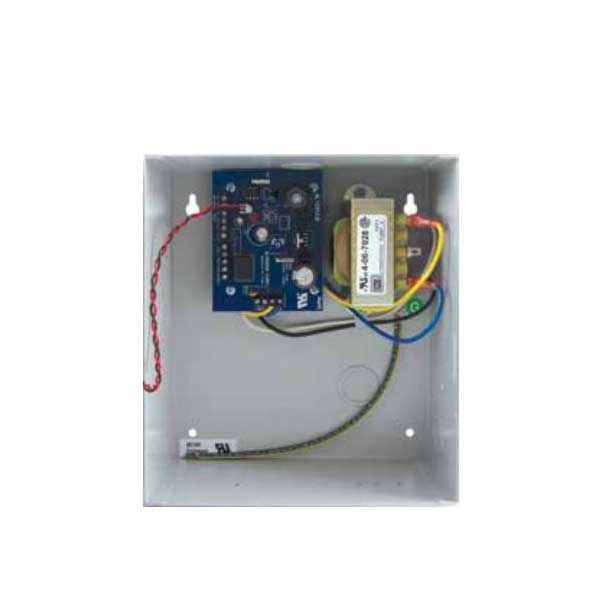

First Choice - PSMEL1500-1 - Single Motorized Panic Device Power Controller - 12/24V - 1 AMP - UHS Hardware
First Choice - PSMEL1500-1 - Single Motorized Panic Device Power Controller - 12/24V - 1 AMP - UHS Hardware

First Choice - PSMEL1500-1 - Single Motorized Panic Device Power Controller - 12/24V - 1 AMP

In Stock
SKU: FCH-PSMEL1500-1
NSID: 20423

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$934.50
$1,168.13
$934.50

The PSMEL1500 Operates one door and one low current exit device.

  • PSMEL1500 shall operate up to one (1) 24VDC panic hardware device.
  • In addition, an auxiliary power output shall provide power for accessory devices such as card readers, key-pads, REX PIRs, electronic timers, relays, etc.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications


Visual Indicators
• Green AC Power LED indicates 115/AC present
• Red LED indicates presence of 24VDC
Battery Backup • Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails
• Maximum charge current .4 amps
• 4AA batteries will make emergency stand-by at least 30 minutes
Input Input 115VAC 60Hz, 2.5 amp or 230VAC, 50Hz, 1.5 amps
• One (1) N.O. Trigger Inputs
Outputs • 12 VDC or 24VDC selectable outputs
• 1 amp supply current
• One (1) Fail-Safe (lock +) supplies power when unit is not being triggered
• One (1) Fail-Secure (strike +) supplies power when unit is being triggered
• (Com –) supplies negative power
Dimensions 8.5" x 7.5" x 3.5" (H x W x D)
Code / Agency Listings • UL File for Access Control Systems Units (UL 294)
• CUL Listed – CSA Standard C22.2 No. 205-M983, Signal Equipment's
• CSFM – California State Fire Marshal Approved
