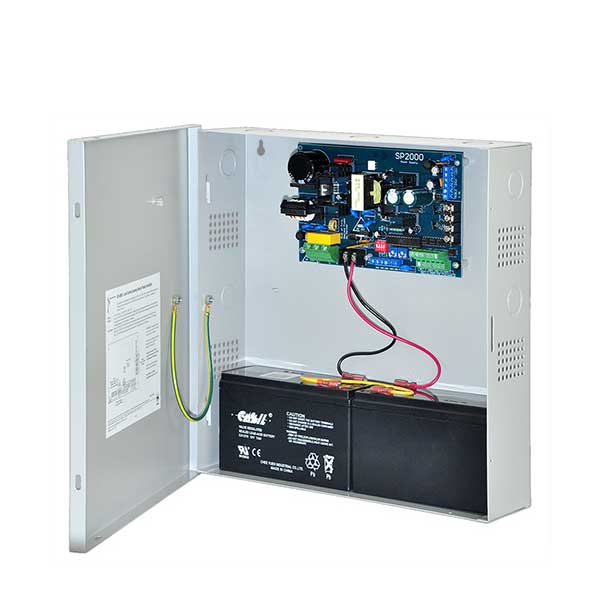

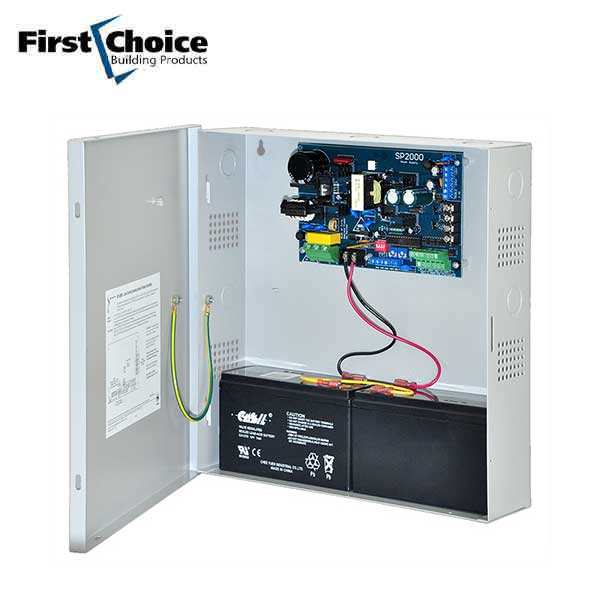

Details
Specifications
| Smart Visual Indicators | • Output 1 & 2 = Red (ON) input LEDs indicate panic device status is energized (rapid blink/short or over current) (slow blink/open circuit) • FAI = Green (ON) FACP Input Triggered (Alarm Condition) • Battery Trouble = Red (ON) Battery Normal (slow blink/bad battery or no battery) • AC Trouble = Green (ON) AC normal (slow blink/AC low or missing) |
| Visual Indicators |
• Output 1 (On/Over/Open) • Output 2 (On/Over/Open) • FAI (On/Off) • Battery (On/Off) • AC Trouble (On/Low or Missing) • AC Power (On/Off) |
| Battery Backup | • Built-in charger for sealed lead acid or gel type batteries • Automatic switch over to stand-by battery when AC fails • Maximum charge current .65 amps • 4AA batteries will make emergency stand-by at least 30 minutes |
| Input |
• Input 115VAC 60Hz, 2.5 amp or 230VAC, 50Hz, 1.5 amps • Two (2) N.O. Trigger Inputs |
| Outputs | • Two (2) 24 VDC individually controlled lock outputs rated @ 1 amp each. Load connected not to exceed 1 amp. • One (1) 24VDC @ .08 amps filtered regulated auxiliary output. (Not affected by FACP trigger) • One (1)12 VDC @ .05 amp filtered regulated auxiliary output. (Not affected by FACP trigger) Note: Total combined current for the 24VDC outputs may not exceed 1.75 amp. • Two (2) follower N.O. outputs for controlling ADA actuators/ accessories • Two (2) momentary operator activation outputs • Trouble output relay for indicating low/AC Voltage and battery trouble. |
| Dimensions | 13" x 12.5" x 3.5" (H x W x D) |
| Code / Agency Listings | • UL File for Access Control Systems Units (UL 294) • CUL Listed – CSA Standard C22.2 No. 205-M983, Signal Equipment's • CSFM – California State Fire Marshal Approved |
Notes
Note: Total combined current for the 24VDC outputs may not exceed 1.75 amp. Two (2) follower N.O. outputs for controlling ADA actuators/ accessories Two (2) momentary operator activation outputs Trouble output relay for indicating low/AC Voltage and battery trouble.
