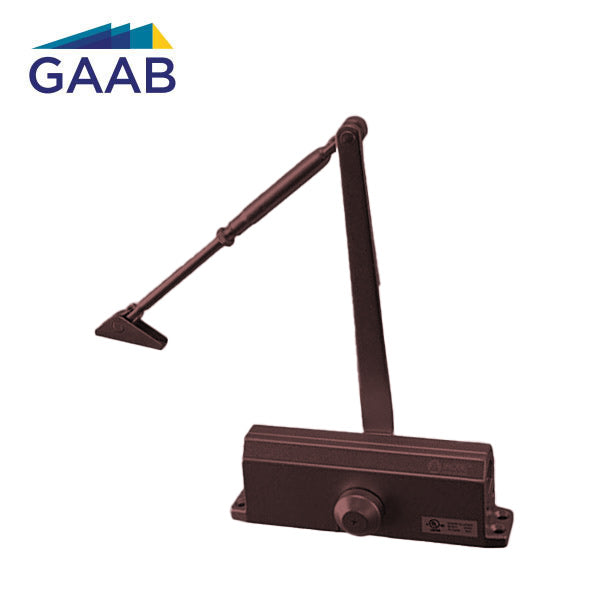

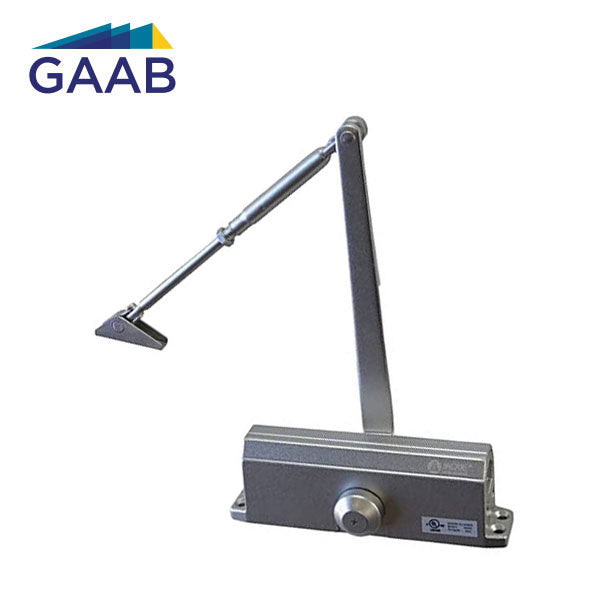

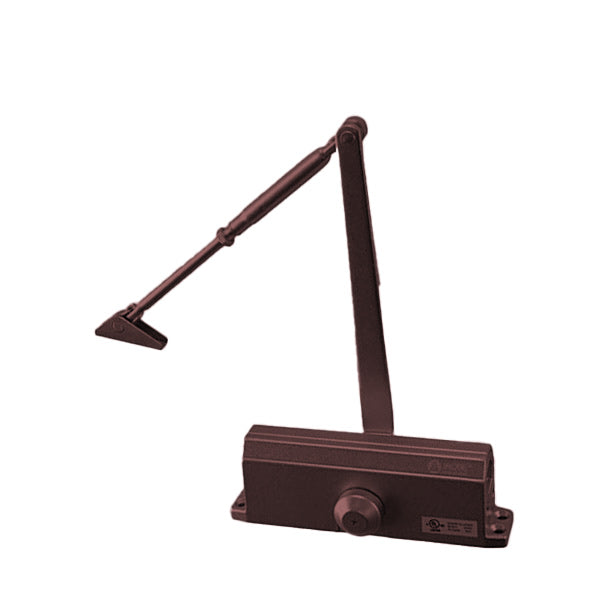

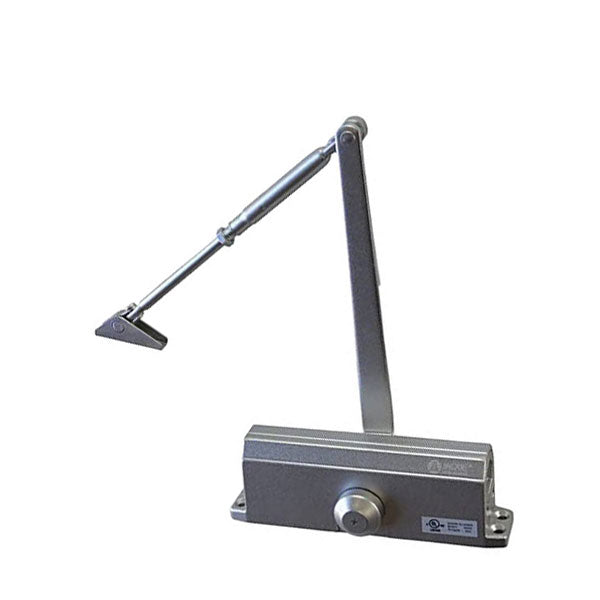

GAAB - R402-00 - Hydraulic Door Closer - Heavy Duty - Adjustable Arm - PA Bracket/Regular/Top Jamb - Adjustable Sizes 1-6 - Plastic Cover - Optional Finish - Fire Rated - Grade 1
In Stock
SKU:
GAB-R402-00
NSID:
31939
67802
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $55.50
-
$66.60 - $55.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Since 1965 GAAB has been contributing to the hardware industry with their knowledge, expertise, and the premise of constant evolution that guarantees the quality recognition of there products. This R402-00 model Door Closer is no exception and is only the latest in there commitment to innovation. These heavy-duty door closers are built to withstand millions of life cycles and are proven to stand the test of time.
Features:
- Easy Installation
- 2 Million life cycles
- ADA: 5016 with Barrier Fee (BF) function for elderly / handicapped
- UL/cUL listed for use on fire rated doors
- Multi size, adjustable spring force from 1-4 to 3-6
- Rock and pinion mechanism contained in a high tensile precision cast aluminium housing
- Universal application: non-handed for standard, top-jamb, or parallel arm installation.
- Recommended type for Fire Doors UL 10C Certified
Specifications:
| Finish: | Satin Stainless Steel, Dark Bronze |
| Material: | Aluminum |
| Max Open Angle: | 180º |
| Temperature: | -22ºF to 140ºF |
| Included Components: | Bracket and Plastic inclined cover |
| Application: | Universal |
| Measurements: | Length 9.69", Width 1-3/4", Height 2.74" |
| Fire Rating: | 3 Hours |
| Certifications: |
UL Certified, Grade 1, ADA Compliant, ANSI 156.4 Grade. |
