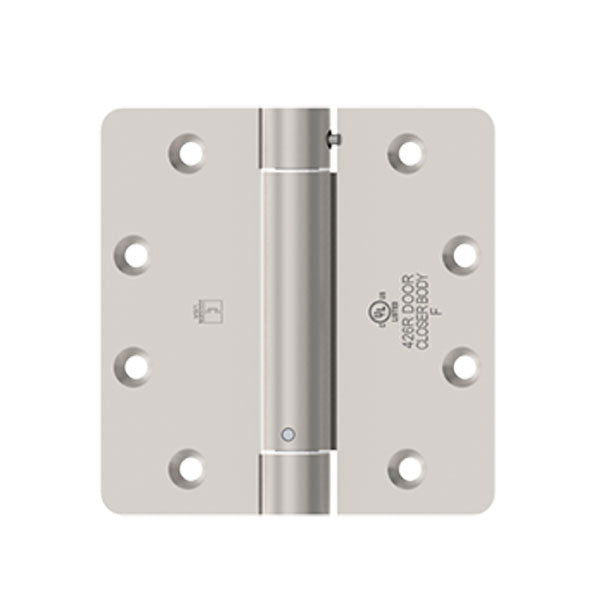

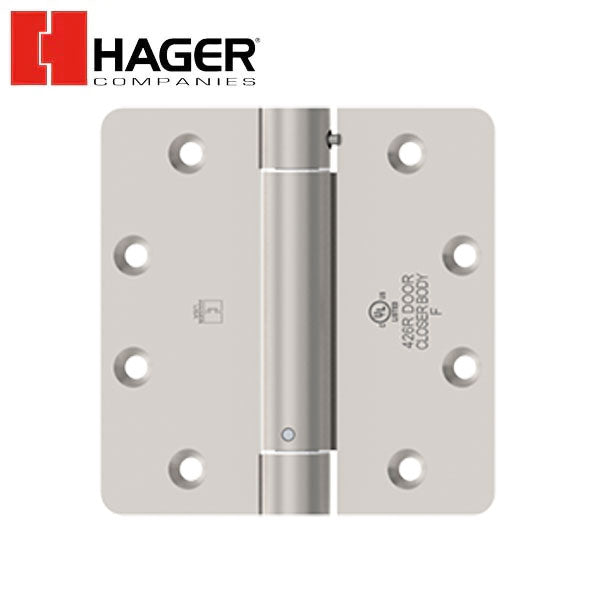

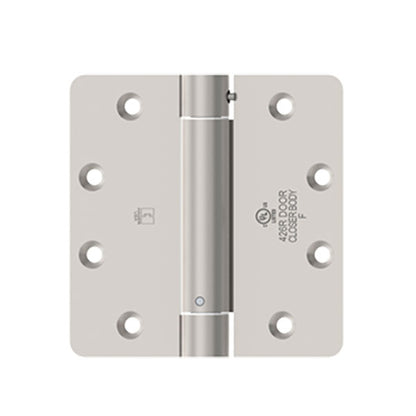

Hager - 1251 - Full Mortise - Spring Hinge - Standard Weight - 1/4" Radius - 4.5" x 4.5" - Satin Chrome
Hager - 1251 - Full Mortise - Spring Hinge - Standard Weight - 1/4" Radius - 4.5" x 4.5" - Satin Chrome

Hager - 1251 - Full Mortise - Spring Hinge - Standard Weight - 1/4" Radius - 4.5" x 4.5" - Satin Chrome

In Stock
SKU: HGR-125100045004526D
NSID: 69596

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
$40.10
$48.12
$40.10

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • ANSI K81071F
Package
  • 1 Hinge
Knuckles
  • 3
Material
  • Steel with Steel Components
Notes
  • Hager does not recommend using spring hinges on doors over 7'0".
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
Options
  • Available with hospital tip (HT) - voids UL.
  • Available with raised barrel (RBB/RBS) - UL approved.
Product Description
  • Full Mortise, Spring Hinge, Standard Weight, 1/4" Radius Corner



Hinge Size (inches) Hinge Size (mm) Gauge of Metal Hole Count Screw Size (Machine) Screw Size (Wood)
4 1/2 x 4 1/2 114 x 114 0.134 8 1/2 x 12-24 1 1/4 x 12v
