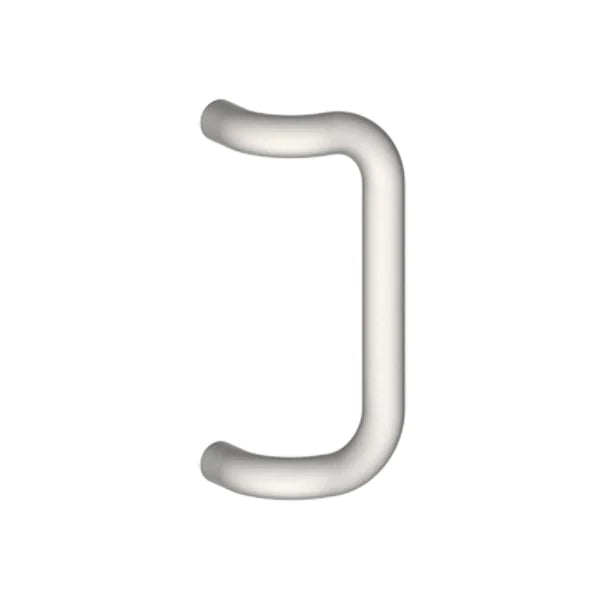

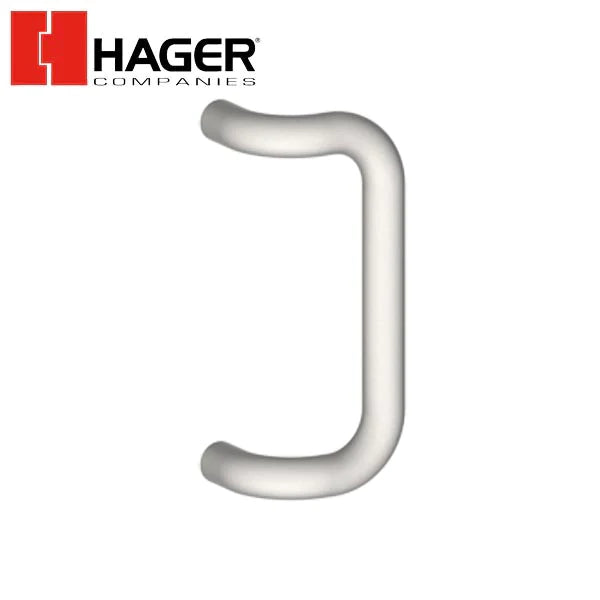

Hager - 12J - 90° Offset Pull - Round - Satin Stainless Steel
Hager - 12J - 90° Offset Pull - Round - Satin Stainless Steel

Hager - 12J - 90° Offset Pull - Round - Satin Stainless Steel

Available to Order
SKU: HGR-012J00000000032D
NSID:

Please Note: This product has a lead time

$117.13
$149.60
$117.13


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • EPD
  • Meets ANSI A156.6 for J402 Pulls
Fasteners
  • Two 5/16" - 18 thru-bolts with washers
Clearance
  • 1-3/4"
Door Thickness
  • 1-3/4" (45 mm)
Material
  • Aluminum, Brass, Bronze, Stainless Steel
Notes
  • Back to back - see model 22
Offset
  • 3" (76 mm)
Optional Features
  • For 45° offset, add prefix "X" to number (i.e. X12E). If ordered with tempered glass, specify glass thickness and hole size. Other centers, sizes and finishes available via special order.
Product Description
  • 90° Offset Pull - Round
Projection
  • 2-3/4" (70 mm)
Pull Diameter
  • 1" (25 mm)
Pull Clearance
  • 1-3/4" (45 mm)


Downloads:

Note: Back to back - see model 22
Compatibility

Compatible With

Downloads
Notes
Note: Back to back - see model 22
