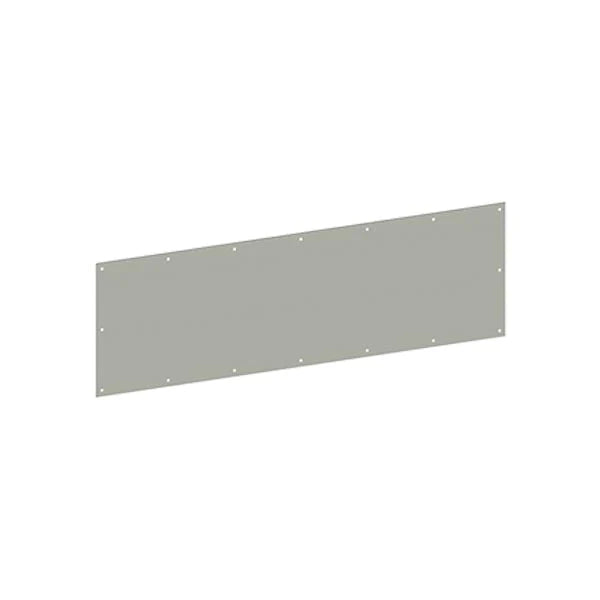

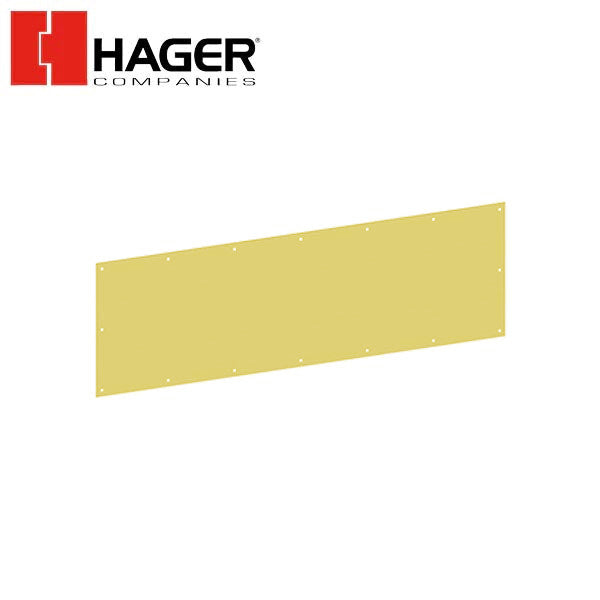

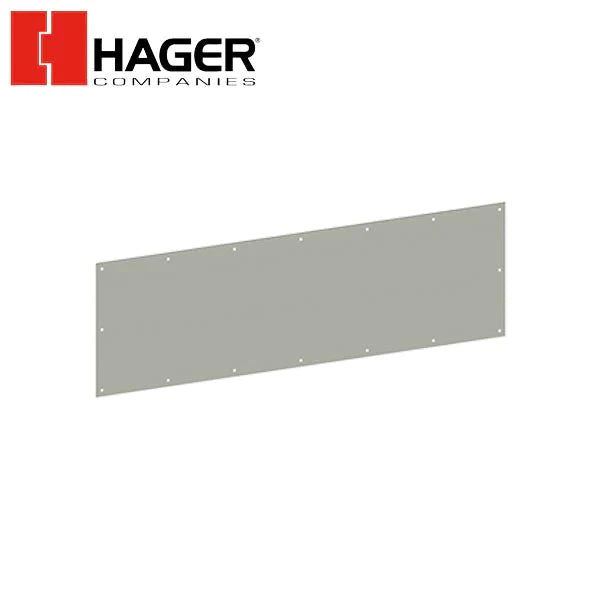

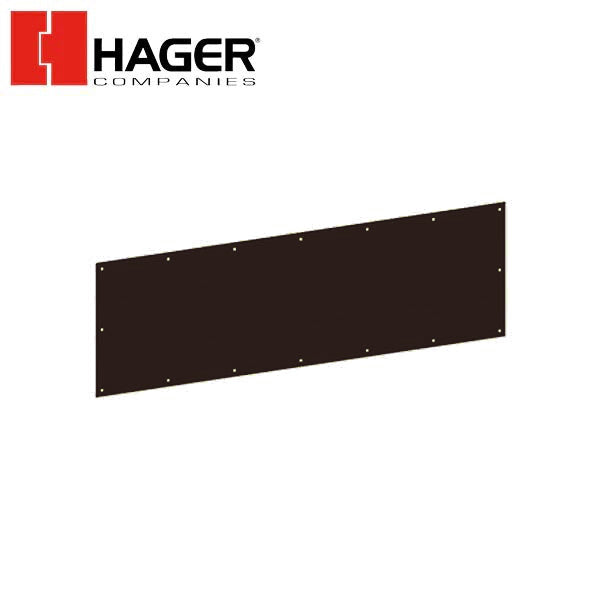

Hager - 190S - Protection Plate - Optional Size - Optional Finish

Details

Certifications	EPD NFPA 80 Standards 6.4.5 Protection Plates 6.4.5.1 Factory installed protection plates shall be installed in accordance with the listing of the door 6.4.5.2 Field installed protection plates shall be labeled and installed in accordance with their listing 6.4.5.3 Labeling shall not be required where the top of the protection plate is not more than 16" (406 mm) above the bottom of the door Meets ANSI A156.6 for J101 Metal Armor Plate, J102 Metal Kickplate, and J103 Metal Mop Plate
Features	4 Beveled Edges
How to Order	Plates are sized on even inches. Odd sizes available and priced to next larger size.
Material	Aluminum, Brass, Bronze, Stainless Steel
Notes	Furnish item number, height, width, and finish (i.e., 190S – 6'' x 30'', US32D) May be ordered with countersunk holes (specify "CSK") at extra charge
Options	UL listed for US32 and US32D with screw fasteners (must specify UL stamp) Self-adhesive tape available on all plates Spanner head screws Torx head screws Round corners - specify 196R Wrap around side and bottom return 0.125" material
Product Name	Door Protection Plate
Thickness	0.050" (1 mm)
