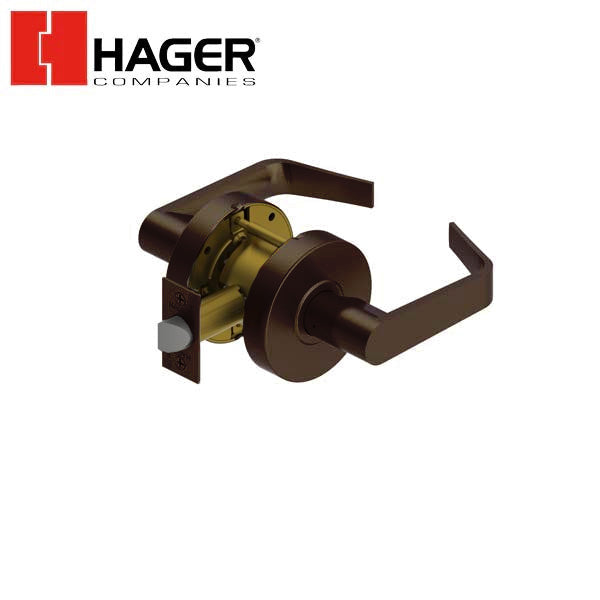

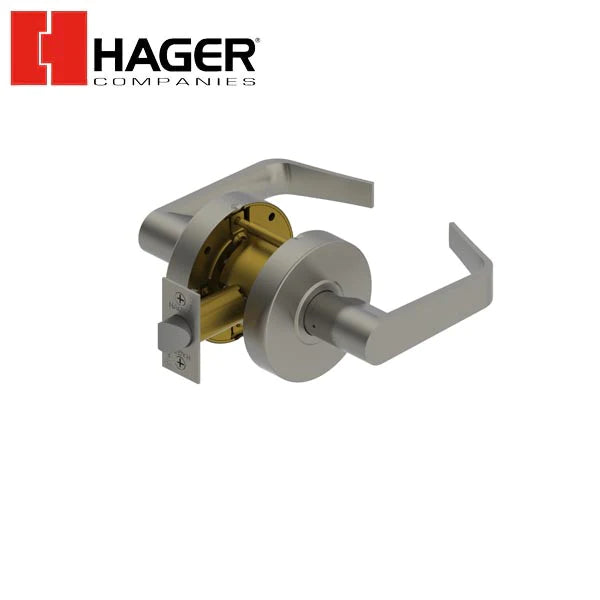

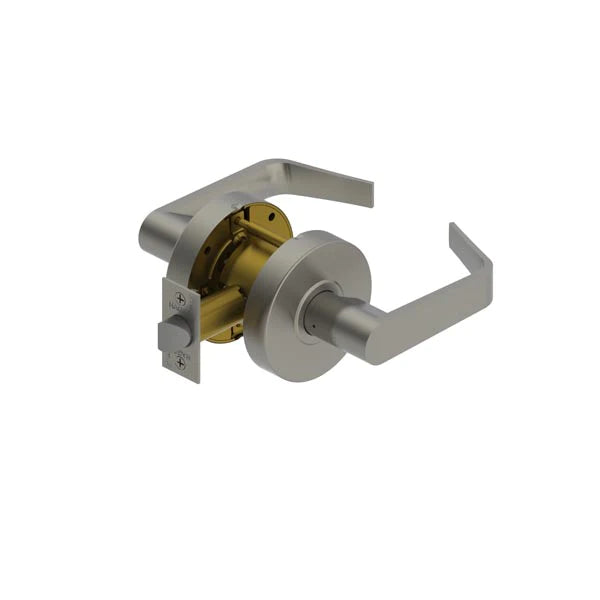

Hager - 2510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Lever

Hager - 2510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Lever

In stock
SKU HGR-251002N26D000W00A NSID 65535
$93.71$112.45On Sale You save $18.74 (17%)
Get it shipped Today! Order within:
Finish
Lever


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • Meets BHMA A156.2 Grade 2 test standards
    Functions
    • Passage (F75)
    Lever Options
    • Archer and Withnell
    Backsets
    • 2-3/4" (70 mm) standard
    • 2-3/8" (60 mm) optional
    Door Thickness
    • 1-3/8" - 2" (35mm - 51mm)
    Exposed Trim
    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols
    Features
    • No exposed mounting screws
    • Non-handed
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
    • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
    Options
    • Additional latchbolts and strikes available.
    Rose Diameter
    • 3-11/32" (85mm)
    Standard Door Prep
    • Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
    • Latch hole - 1" (25 mm) diameter (edge bore)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    Warranty
    • 5-year
