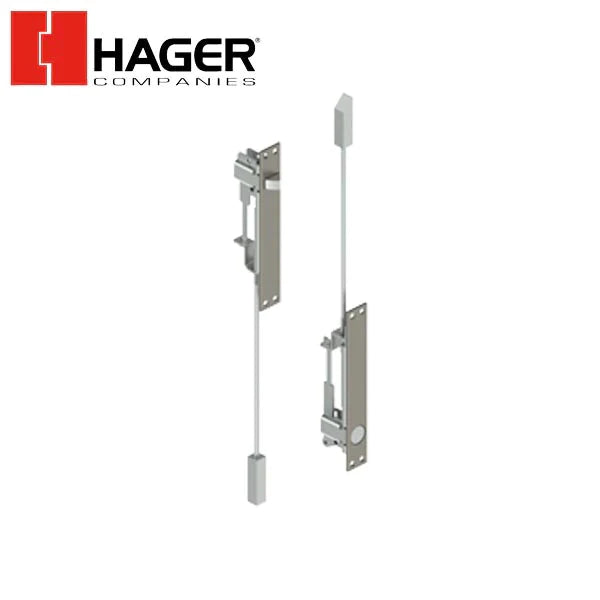

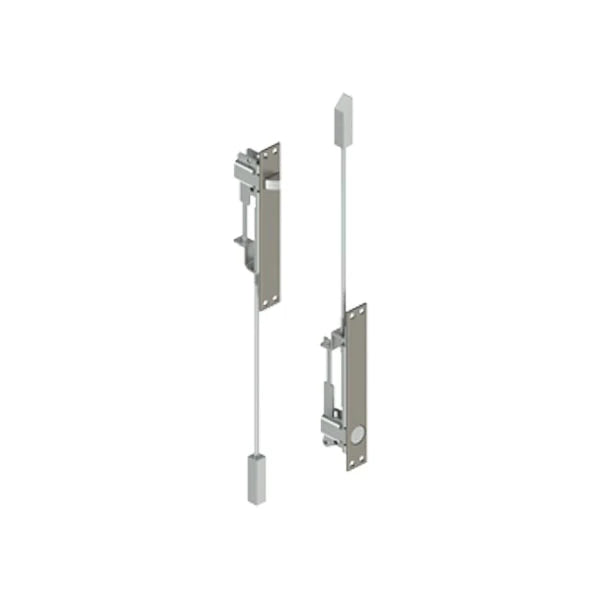

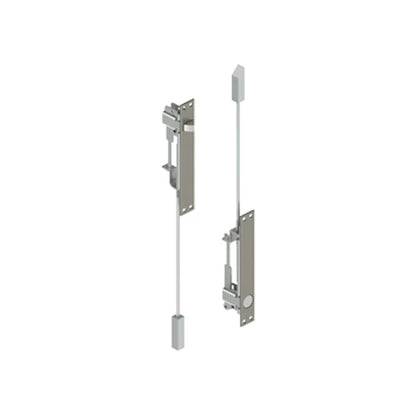

*Discontinued* Hager - 293D - Constant Latching Flush Bolt Set for Inactive Metal - Satin Stainless Steel

*Discontinued* Hager - 293D - Constant Latching Flush Bolt Set for Inactive Metal - Satin Stainless Steel

Discontinued
SKU HGR-293D00000000032D
$126.91$152.29On Sale You save $25.38 (17%)


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    View full details

    Details

    Specs

    Certifications
    • 3 hour fire rating on metal doors up to 4' wide x 9' tall (A, B, C, D, and E label rating)
    • ANSI A156.3 Type #27
    Fasteners
    • Eight #8 x 1'' combination screws
    • 1-1/8" x 2-3/4" (28 mm x 70 mm)
    Bolt Throw
    • 3/4" (19 mm)
    Bolt
    • Backset: 3/4" (19 mm)
    Faceplate
    • 1" x 6-3/4" (25 mm x 172 mm)
    Material
    • Stainless steel and brass with steel components
    Notes
    • Thermal lock automatically locks inactive door under high fire/heat conditions
    • 280X dust proof strike are recommended for use with these sets
    • 3-hour fire rating for metal doors up to 4 feet wide x 9 feet tall
    • Consists of one 292S and one 293S for two point latching
    • Inactive door remains latched until active door is opened, releasing the automatic bottom bolt
    • Top bolt can be manually released by pressing plunger
    • Inactive door will re-latch automatically when closed
    • Non-handed
    • Bolt head rods are adjustable
    • To only be used with non-beveled doors
    Product Description
    • Constant Latching Flush Bolt Set for Inactive Metal Doors
