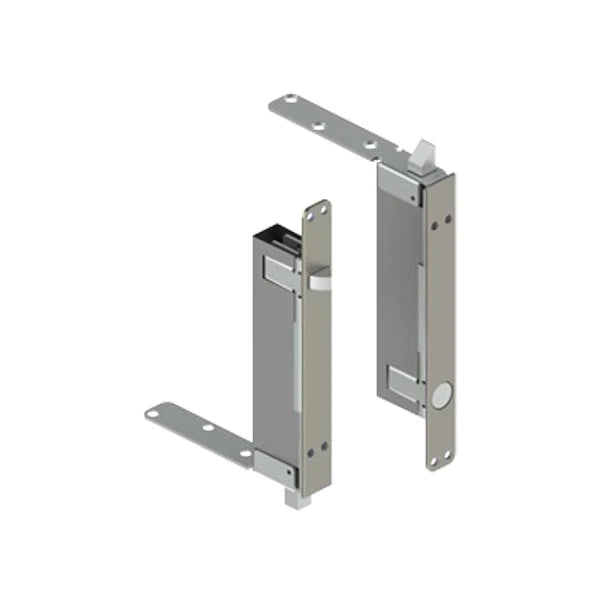

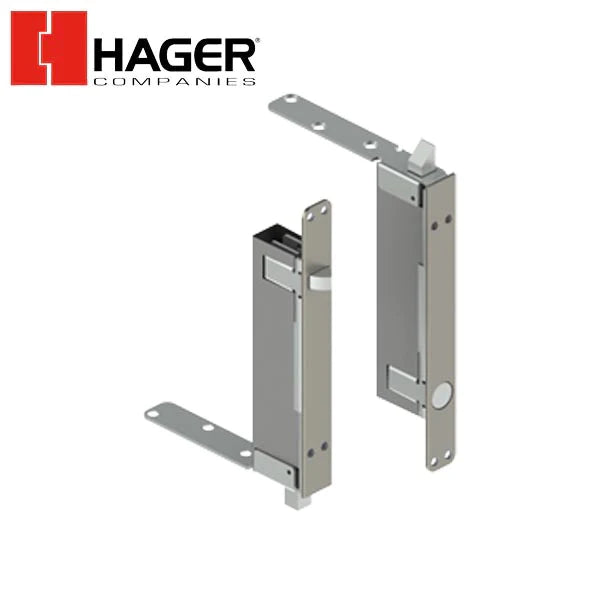

Hager - 294D - Constant Latching Flush Bolt Set for Wood Doors - Satin Stainless Steel
Hager - 294D - Constant Latching Flush Bolt Set for Wood Doors - Satin Stainless Steel

Hager - 294D - Constant Latching Flush Bolt Set for Wood Doors - Satin Stainless Steel

Available to Order
SKU: HGR-294D00000000032D
NSID:

Please Note: This product has a lead time

$136.80
$221.98
$136.80


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • 1-1/2 hour fire rating for wood doors up to 4' wide x 9' tall (B, C, D, and E label rating)
  • ANSI A156.3 Type #27
Fasteners
  • Three #10 x 1'' SMS, Four #8 x 1" combo screws, Two plastic anchors
  • 1-1/8" x 2-3/4" (28 mm x 70 mm)
Bolt Throw
  • 3/4" (19 mm)
Bolt
  • Backset: 3/4" (19 mm)
Faceplate
  • 1" x 8-1/2" (25 mm x 216 mm)
Material
  • Stainless steel and brass with steel components
Notes
  • One set consist of one 291S and one 294S for two point latching
  • Thermal lock automatically locks inactive door under high fire/heat conditions
  • 280X dust proof strikes are recommended for use with these sets
  • Inactive door remains latched until the active door is opened, releasing the automatic bottom bolt
  • Top bolt can be manually released. Inactive door will re-latch automatically when closed
  • Non-handed
  • Bolt head rods are adjustable
  • To only be used with non-beveled doors
Product Description
  • Constant Latching Flush Bolt Set for Wood Doors


Downloads:

Note: One set consist of one 291S and one 294S for two point latching, Thermal lock automatically locks inactive door under high fire/heat conditions, 280X dust proof strikes are recommended for use with these sets, Inactive door remains latched until the active door is opened, releasing the automatic bottom bolt, Top bolt can be manually released. Inactive do.or will re-latch automatically when closed, Non-handed, Bolt head rods are adjustable, To only be used with non-beveled doors
Compatibility

Compatible With

Downloads
Notes
Note: One set consist of one 291S and one 294S for two point latching, Thermal lock automatically locks inactive door under high fire/heat conditions, 280X dust proof strikes are recommended for use with these sets, Inactive door remains latched until the active door is opened, releasing the automatic bottom bolt, Top bolt can be manually released. Inactive do.or will re-latch automatically when closed, Non-handed, Bolt head rods are adjustable, To only be used with non-beveled doors
