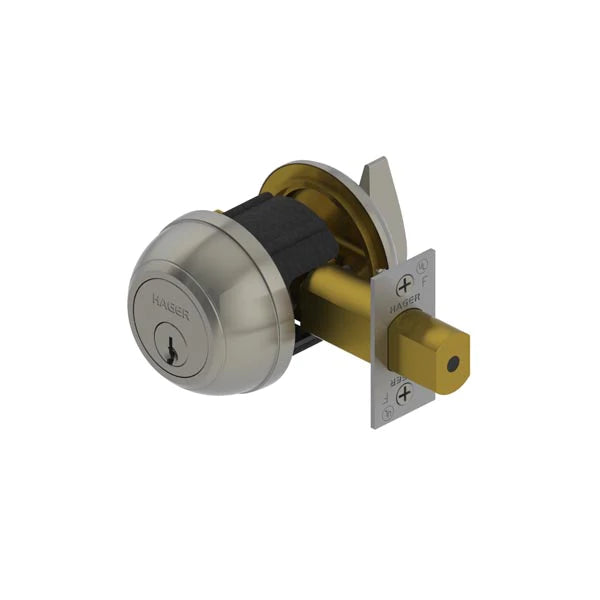

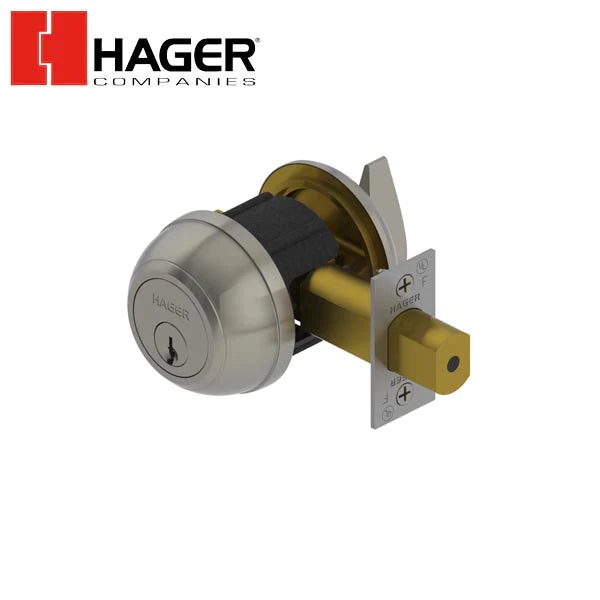

Hager - 3118 - Deadbolt - Classroom - 2-3/4" - Satin Chrome - Optional Keyway
Hager - 3118 - Deadbolt - Classroom - 2-3/4" - Satin Chrome - Optional Keyway

*Discontinued* Hager - 3118 - Deadbolt - Classroom - 2-3/4" - Satin Chrome - Optional Keyway

Out of Stock
SKU: HGR-311802N26D00000N000C
NSID:
$157.48
$188.98
$157.48


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

$157.48
$188.98
$157.48
Keyway: SFIC No Core
Description
Description
x

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.36, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #18-0816.08
Functions
  • Classroom (E2171)
Cylinders/Cores
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Backsets
  • 2-3/4" (70 mm) Standard
  • 2-3/8" (60 mm) Option
Deadbolt
  • 1" (25 mm) throw, brass with concealed hardened steel roller
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
Door Thickness
  • 1-3/4" - 2" (45 mm - 51 mm) - Standard
  • 2-1/4" (57 mm) - Optional for conventional keyed only
Exposed Trim
  • Wrought Brass or Bronze
Keys
  • Two operating keys supplied per lock
Keyway
  • Schlage C - Standard, other keyways available
Notes
  • SFIC option available (Cores are sold separately - standard)
  • Handing is field reversible
Options
  • Split Finish
  • Additional Deadbolts and strikes available
Strikes
  • 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike standard
  • Optional ASA strike available
Warranty
  • Lifetime


Downloads:

Note: SFIC option available (Cores are sold separately - standard), Handing is field reversible
