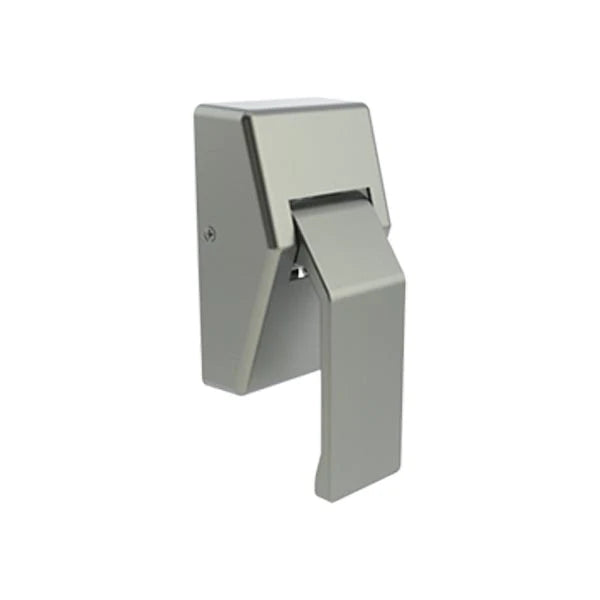

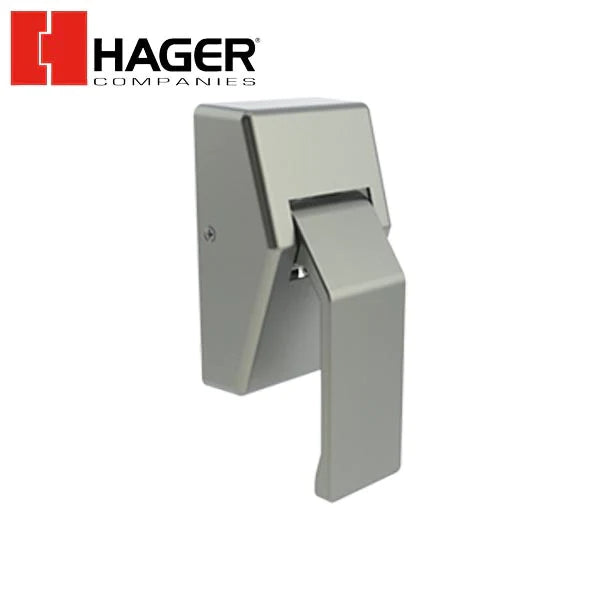

Hager - 311H - Push/Pull Hospital Latch - 5" - Satin Chrome

Hager - 311H - Push/Pull Hospital Latch - 5" - Satin Chrome

In stock
SKU HGR-311H00050000026D NSID 68013
$186.88$224.26On Sale You save $37.38 (17%)
Get it shipped Today! Order within:


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specs

    Certifications
    • ANSI A156.2 closest equivalent (bored latch- series 4000- grade 2)
    Bolt Diameter
    • 3/4" (19 mm)
    Bolt Throw
    • 1/2" (13 mm)
    Door Thickness
    • 1-3/4" (45 mm)
    Escutcheons
    • 3-1/16" x 5" (78 mm x 127 mm)
    Material
    • Zinc, Stainless Steel
    Notes
    • 5" (127 mm) backset
    • Non-handed
    Optional Features
    • Engraving Handed: A (standard) - "PUSH" down; "PULL" down. B - "PUSH" up; "PULL" down. C - "PUSH" up, 'PULL" up. D - "PUSH" down, "PULL" up.
    Product Description
    • Push/Pull Hospital Latch
    Projection
    • 2-5/8"
    Push and Pull Levers
    • 1-15/16' x 4-1/2" (49 mm x 114 mm)
    Strike Size
    • 1-1/8" x 2-3/4" (57 mm x 29 mm) T-strike and 1-1/4" x 4-7/8" (124 mm x 32 mm) ASA strike are both included
