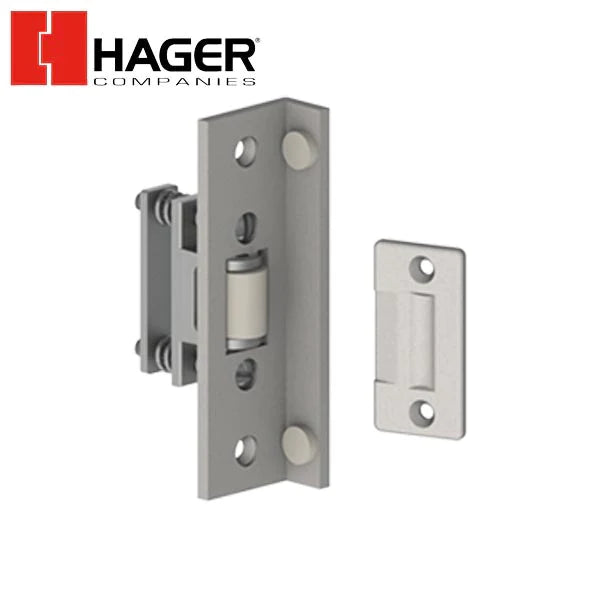

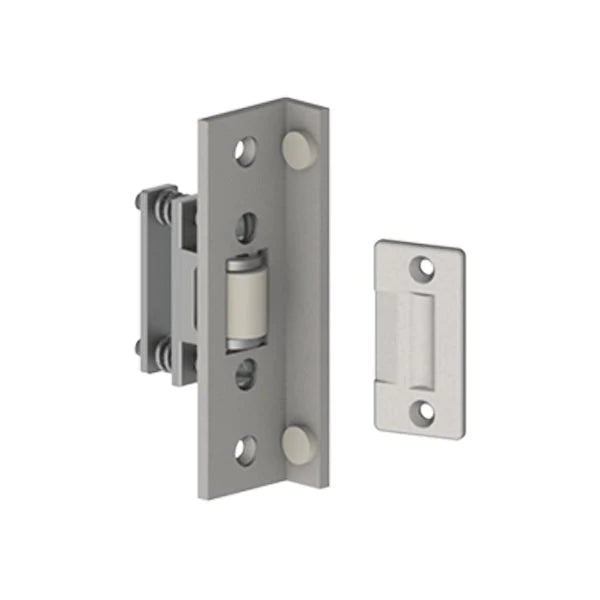

Hager - 318S - Roller Latch with Stop - Satin Chrome
Hager - 318S - Roller Latch with Stop - Satin Chrome

Hager - 318S - Roller Latch with Stop - Satin Chrome

Available to Order
SKU: HGR-318S00000000026D
NSID:

Please Note: This product has a lead time

$37.90
$61.50
$37.90


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • Meets ANSI 156.16 for E0911
Fasteners
  • Two #8 x 1" FPHWS, Two #8 - 32 x 3/4" FPHMS, Two #10 x 1-1/2" FPHWS
Faceplate
  • Roller faceplate 1-7/16" wide x 4-7/16" high x 11/16" angle (37 mm x 111 mm x 18 mm)
Material
  • Cast Brass
Notes
  • Adjustable spring tension with nylon roller
  • Projection of roller is easily adjusted using screws on faceplate
  • Max projection of the roller is 3/8" (9.5 mm) allowing for variance in door and frame clearance
  • Strike gauge is .063" (2 mm)
Product Description
  • Roller Latch with Stop
Projection
  • 3/8"
Strike Size
  • 1-1/8" x 2-1/4" (29 mm x 57 mm)


Downloads:

Note: Adjustable spring tension with nylon roller, Projection of roller is easily adjusted using screws on faceplate, Max projection of the roller is 3/8" (9.5 mm) allowing for variance in door and frame clearance, Strike gauge is .063" (2 mm).
Compatibility

Compatible With

Downloads
Notes
Note: Adjustable spring tension with nylon roller, Projection of roller is easily adjusted using screws on faceplate, Max projection of the roller is 3/8" (9.5 mm) allowing for variance in door and frame clearance, Strike gauge is .063" (2 mm).
