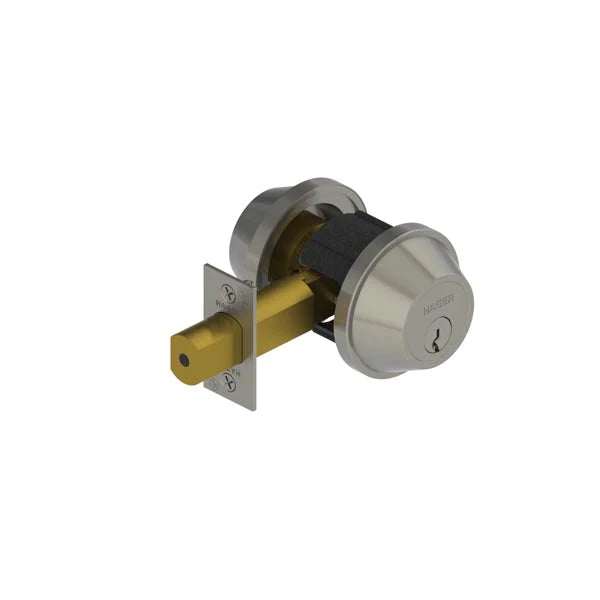

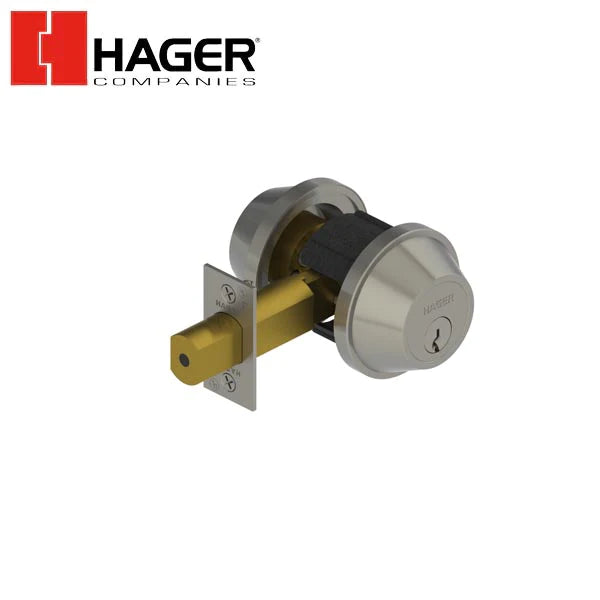

Hager - 3214 - Deadbolt - Double Cylinder - 2-3/4" - Schlage C Keyway - Optional Finish
Hager - 3214 - Deadbolt - Double Cylinder - 2-3/4" - Schlage C Keyway - Optional Finish

*Discontinued* Hager - 3214 - Deadbolt - Double Cylinder - 2-3/4" - Schlage C Keyway - Optional Finish

Out of Stock
SKU: HGR-321402N26D0000CD
NSID:
$99.82
$119.78
$99.82


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

$99.82
$119.78
$99.82
Finish: Satin Chrome
Description
Description
x

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.36, Grade 2
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #17-1226.23
Functions
  • Double Cylinder (E2142)
Cylinders/Cores
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Backsets
  • 2-3/4" (70 mm) Standard
  • 2-3/8" (60 mm) Optional
Deadbolt
  • 1'' (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting
  • 1-1/8'' x 2-1/4'' (29 mm x 57 mm) square corner faceplate
Door Thickness
  • 1-3/8" - 1-3/4" (35 mm - 45 mm) - Standard
  • 2-1/4" (57mm) - Optional for conventionally keyed only
  • 1-3/4" (35 mm) only - 3214 SFIC and 3216
Exposed Trim
  • Wrought Brass, Bronze or Stainless Steel
Keys
  • Two operating keys supplied per lock
Keyway
  • Schlage C - Standard, other keyways optional
Notes
  • Non-handed
Options
  • Split Finish
  • Additional Deadbolts and strikes available
Strikes
  • 3930 - 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike - standard
  • 3929 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA deadbolt strike – optional
Warranty
  • Lifetime


Downloads:

Note: Non-handed
