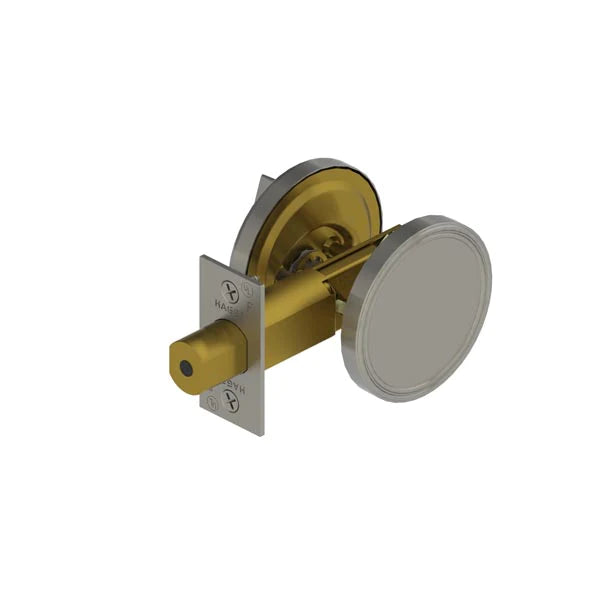

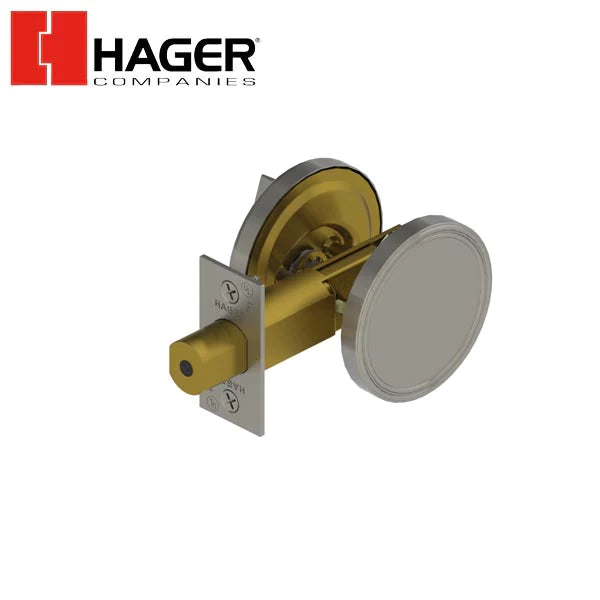

*Discontinued* Hager - 3220 - Deadbolt - Thumbturn Only With Blank Plate - Satin Chrome

*Discontinued* Hager - 3220 - Deadbolt - Thumbturn Only With Blank Plate - Satin Chrome

Discontinued
SKU HGR-322000R26D000
$60.39$72.47On Sale You save $12.08 (17%)


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    View full details

    Details

    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • BHMA Certified ANSI A156.36, Grade 2
    Functions
    • Thumbturn w/ Blank Plate (E21112)
    Backsets
    • Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
    Deadbolt
    • 1'' (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting
    • 1-1/8'' x 2-1/4'' (29 mm x 57 mm) square corner faceplate
    Door Thickness
    • 1-3/4" (45 mm)
    Exposed Trim
    • Wrought Brass, Bronze or Stainless Steel
    Notes
    • Non-handed
    Options
    • Split Finish
    • Additional Deadbolts and strikes available
    Strikes
    • 3930 - 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike - standard
    • 3929 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA deadbolt strike – optional
    Warranty
    • Lifetime
