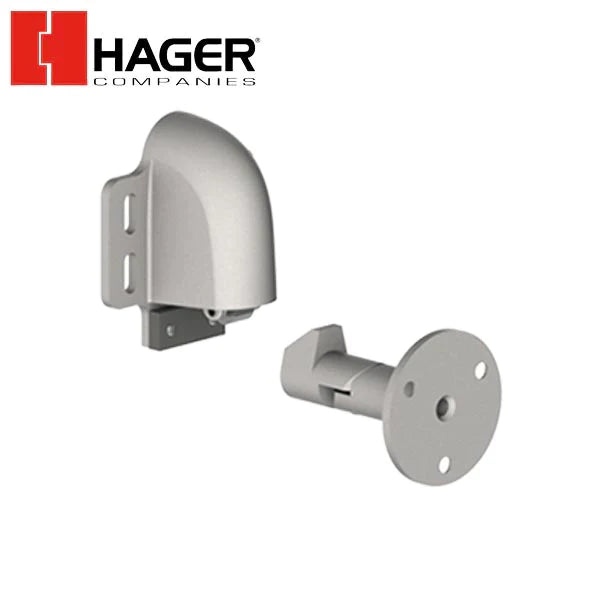

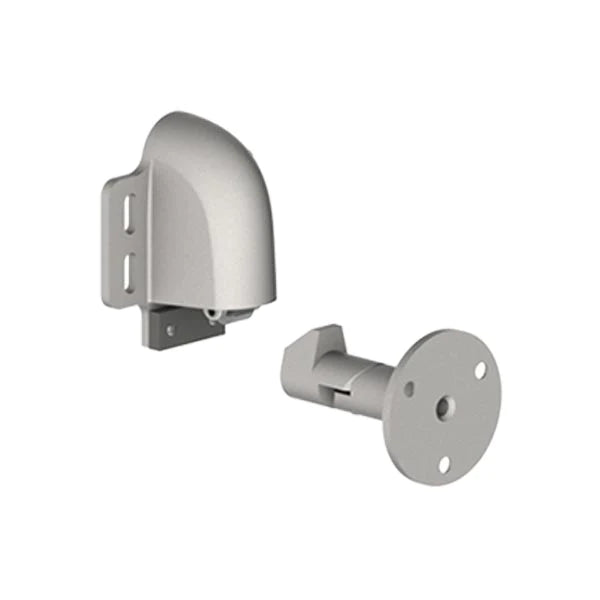

*Discontinued* Hager - 327W - Automatic Wall Stop & Holder - Satin Chrome

*Discontinued* Hager - 327W - Automatic Wall Stop & Holder - Satin Chrome

Discontinued
SKU HGR-327W00000000026D
$110.19$132.23On Sale You save $22.04 (17%)


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    View full details

    Details

    Specs

    Certifications
    • Meets ANSI A156.16 for L11290
    Fasteners
    • Three #14 x 1-1/2" FPHWS
    • Three 1/4-20 x 3/4" FPHMS
    • Four 12-24 x 1" TPHMS
    • Four #12 x 1" TPHWS
    • Three 1/4-20 lead anchors
    Engaged Projection
    • 3-1/2" (89 mm)
    Material
    • Cast Brass
    Notes
    • Strike is adjustable 45° left or right
    • For use with wood or metal doors and drywall or concrete walls
    • Holder has a vertical adjustment once mounted on the door
    • For doors up to 500 lbs.
    • Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)
    Product Description
    • Automatic Wall Stop & Holder
    Strike Projection
    • 3-1/16" (78 mm)
