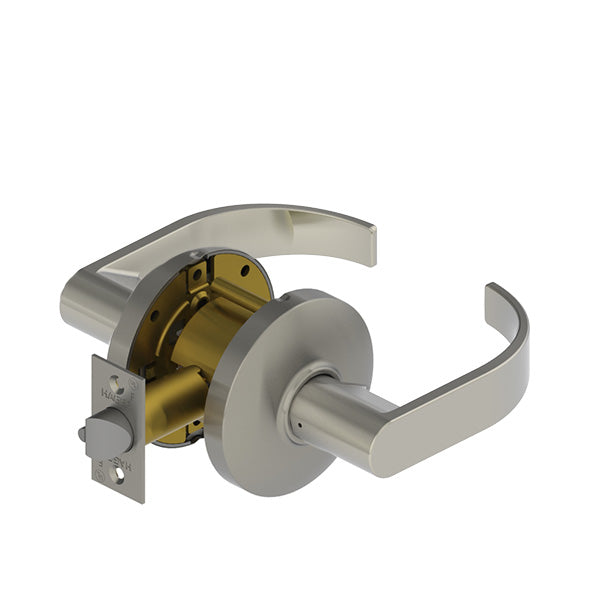

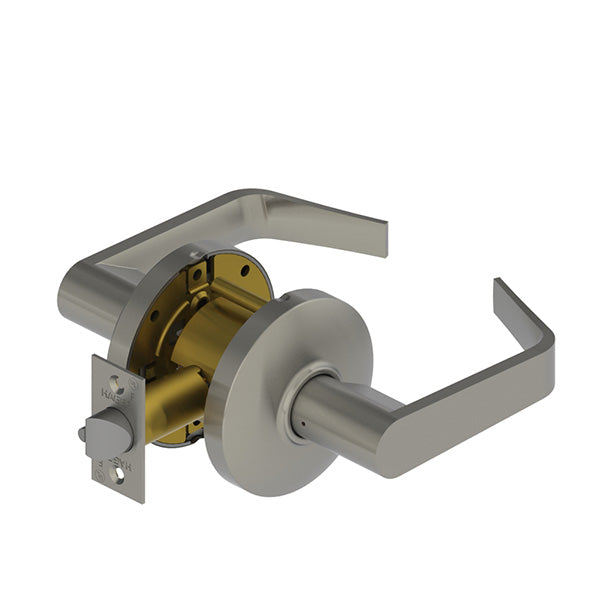

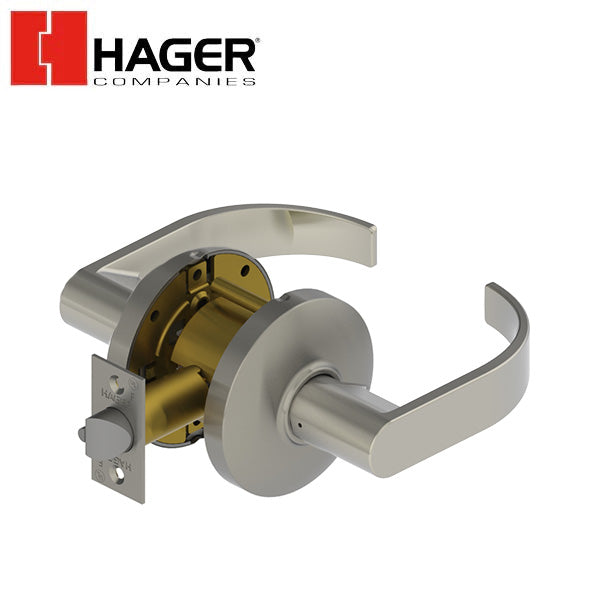

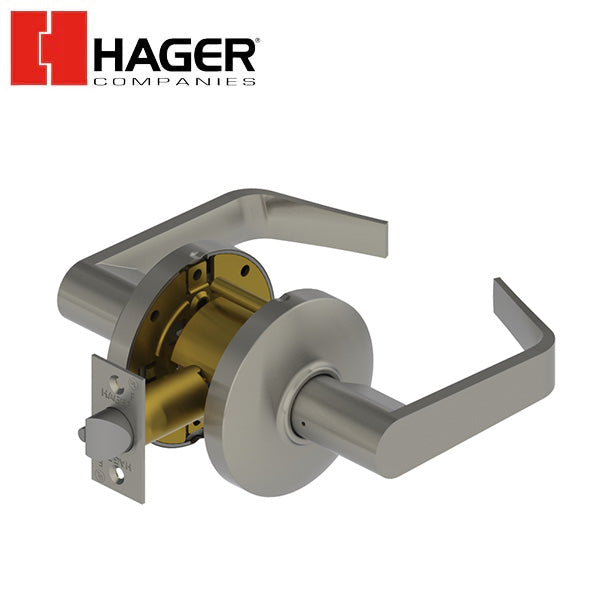

*Discontinued* Hager - 3410 - Lever - Passage - 2-3/4" - Satin Chrome - Optional Lever

*Discontinued* Hager - 3410 - Lever - Passage - 2-3/4" - Satin Chrome - Optional Lever

Discontinued
SKU HGR-341002N26D000A00A
$267.87$321.44On Sale You save $53.57 (17%)
Lever


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    View full details

    Details

    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.2, Series 4000, Grade 1
    • ANSI A250.13 Severe Windstorm Compliant
    • Miami Dade County, FL NOA #22-0816.08
    Functions
    • Passage (F75)
    Lever Options

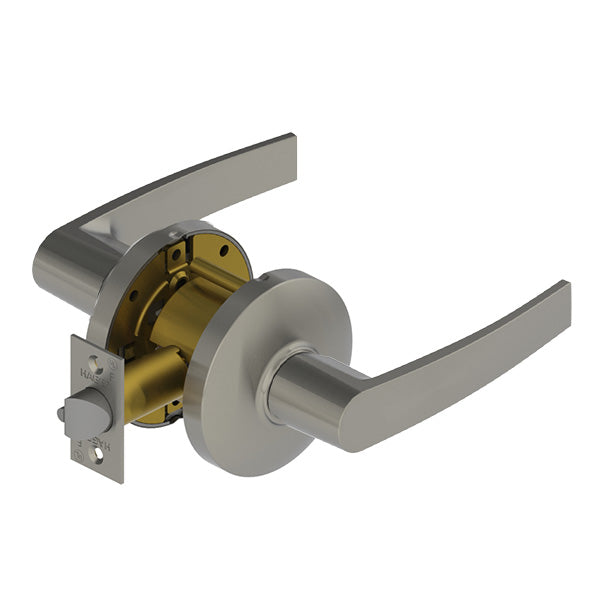

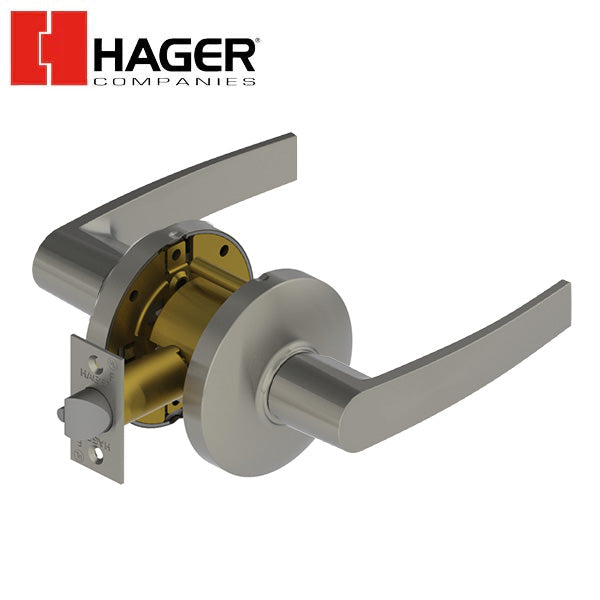

    • Archer, August and Withnell
    Backsets
    • 2-3/4" (70mm) - Standard
    • 2-3/8" (60mm) - Optional
    • 3-3/4" (94mm) - Optional
    • 5" (128mm) - Optional
    Door Thickness
    • 1-3/8" - 2" (35 mm - 51 mm)
    Exposed Trim
    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols
    Features
    • No exposed mounting screws
    • Non-handed
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
    • Square corner faceplates standard, round corner available
    Options
    • Lead Lining
    • Tactile Warning
    • Split Finish
    Rose Diameter
    • 3-17/32" (90 mm)
    Standard Door Prep
    • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
    • Latch hole - 1" (25 mm) diameter (edge bore)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Lifetime
