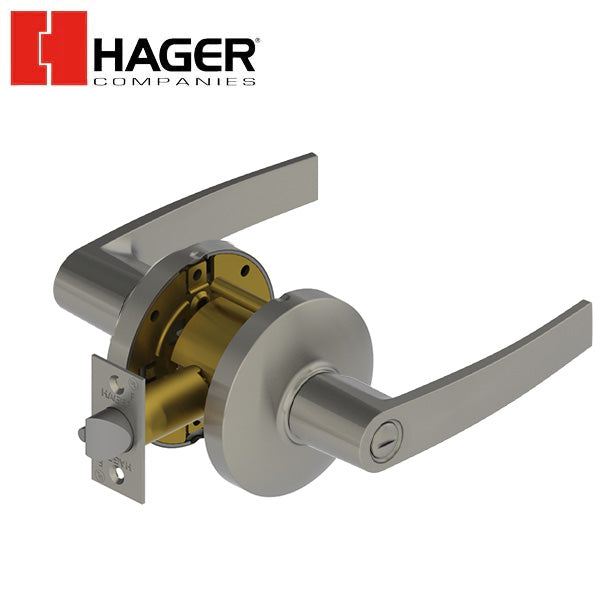

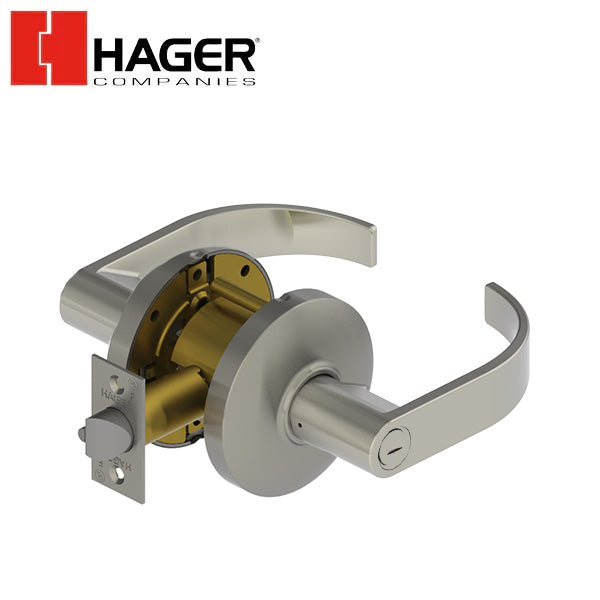

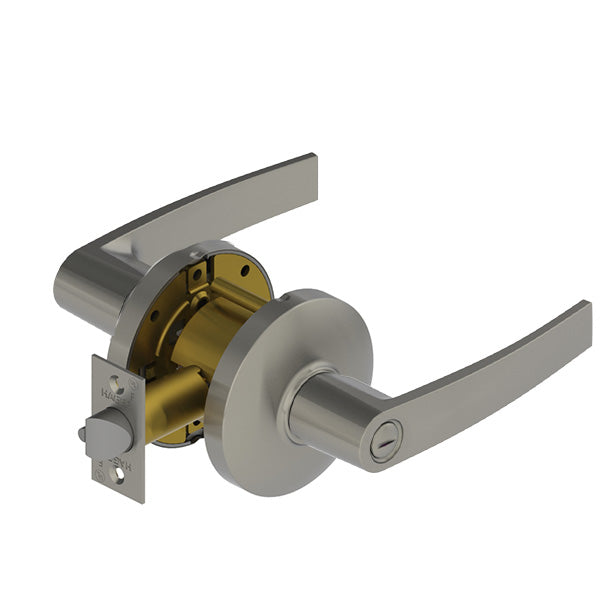

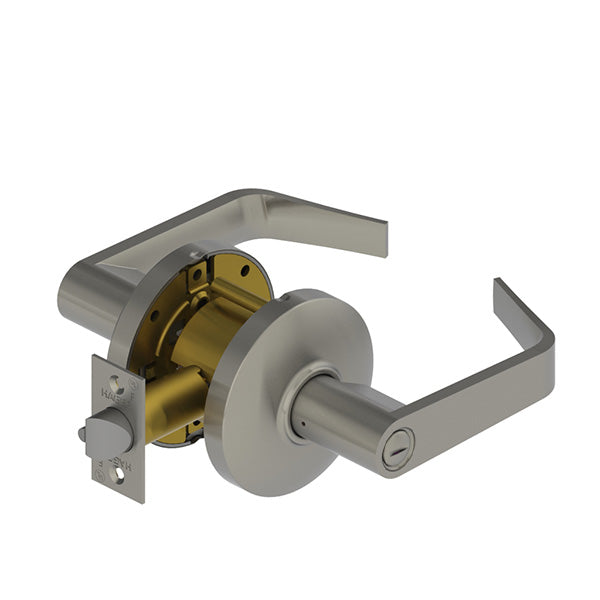

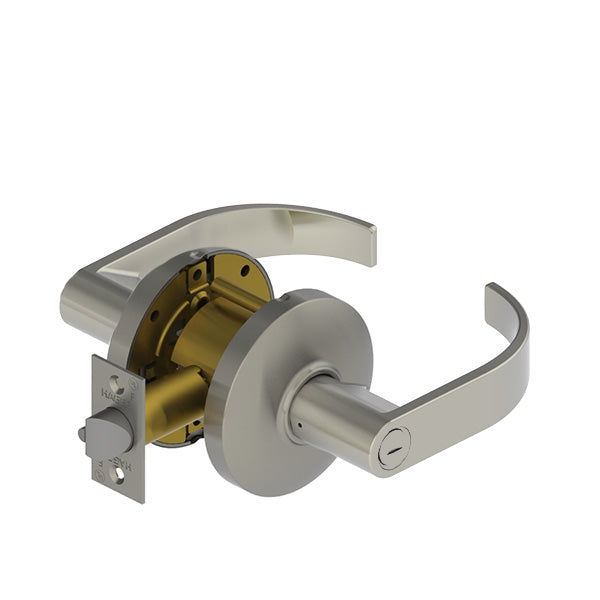

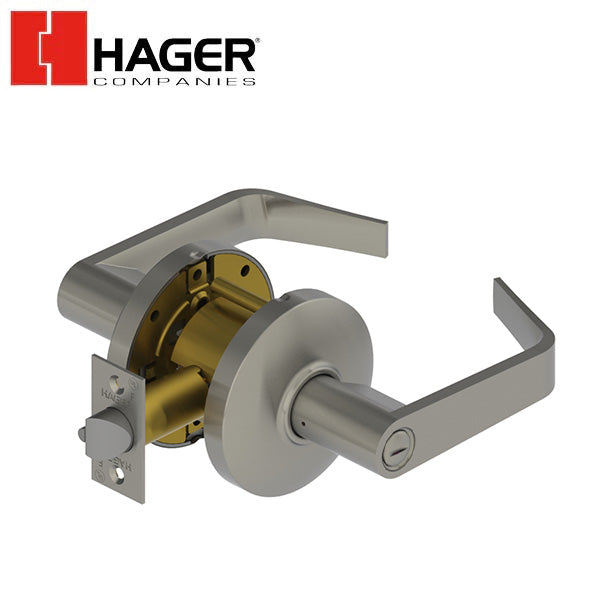

Hager - 3440 - Lever - Privacy - 2-3/4" Satin Chrome - Optional Lever

In Stock
SKU: HGR-344002N26D000A00A
NSID:

Get it shipped ! Order within:

$308.49
$370.19
$308.49
Lever: Archer


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #22-0816.08
Functions
  • Privacy (F76A)
Lever Options
  • Archer, August and Withnell
Backsets
  • 2-3/4" (70mm) - Standard
  • 2-3/8" (60mm) - Optional
  • 3-3/4" (94mm) - Optional
  • 5" (128mm) - Optional
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols
Features
  • No exposed mounting screws
  • Non-handed
  • Free wheeling levers
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
Options
  • Lead Lining
  • Tactile Warning
  • Split Finish
Rose Diameter
  • 3-17/32" (90 mm)
Standard Door Prep
  • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Lifetime
