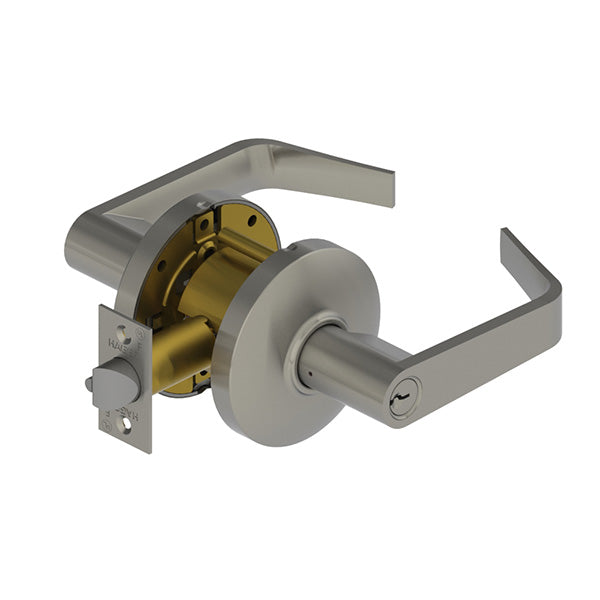

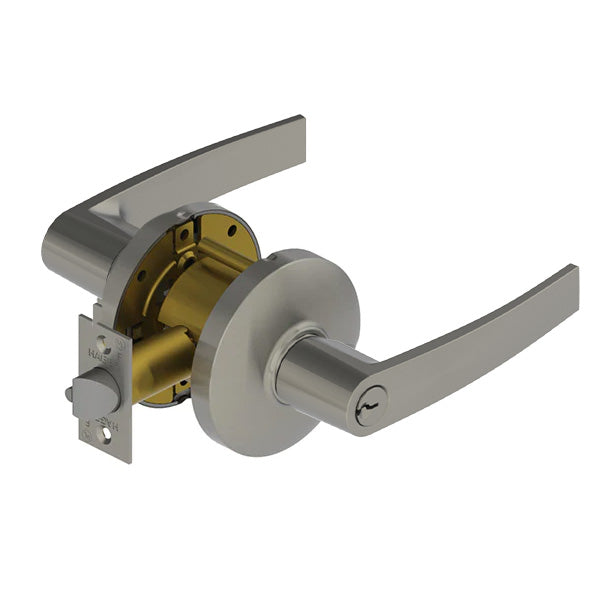

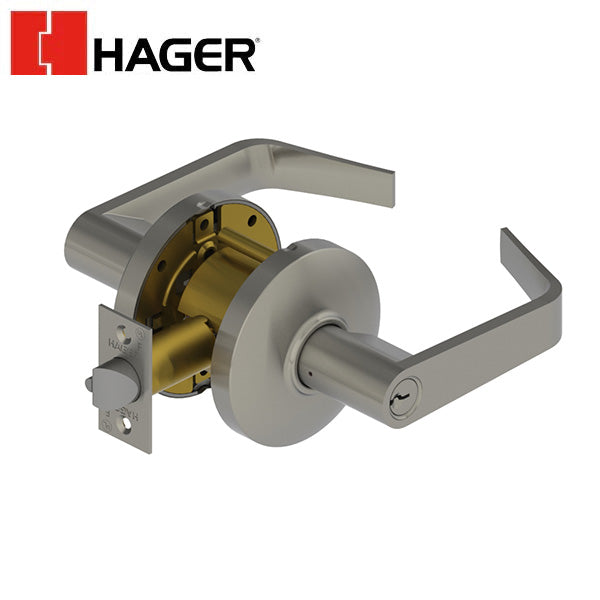

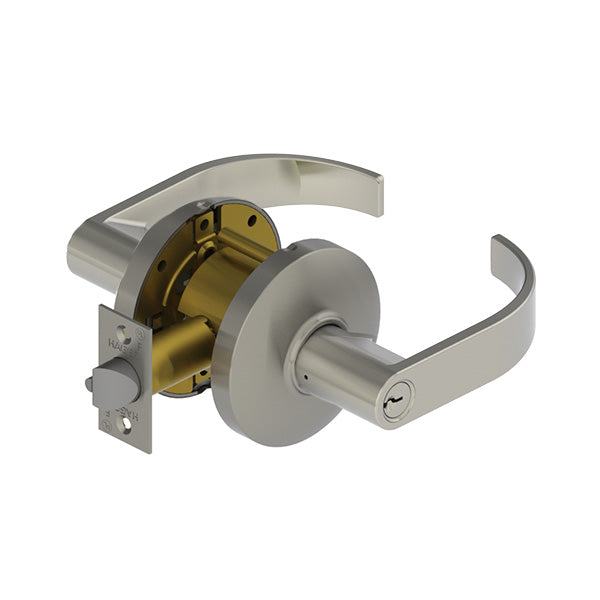

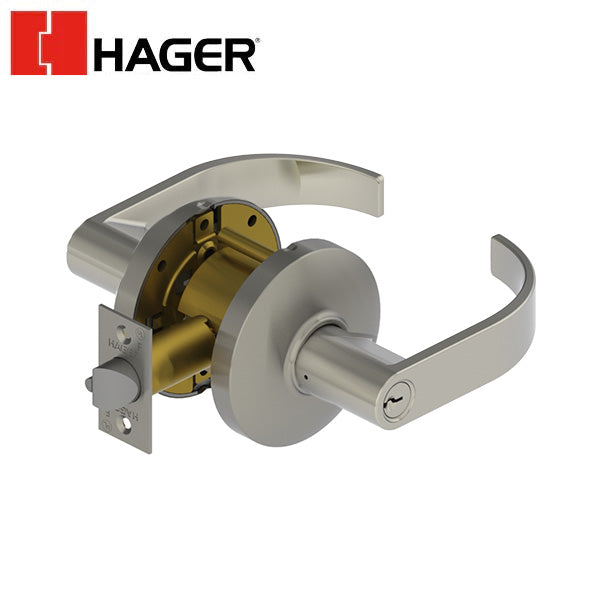

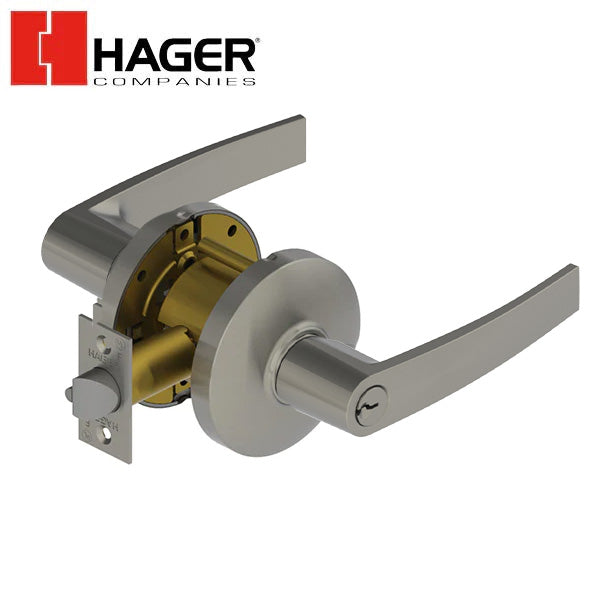

Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway
Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway
Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway
Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway
Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway
Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway

*Discontinued* Hager - 3470 - Lever - Classroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway

Out of Stock
SKU: HGR-347002N26D000ACDA
NSID:
$359.27
$431.12
$359.27


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

$359.27
$431.12
$359.27
Lever: Archer
Keyway: Schlage C
Description
Description
x

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #22-0816.08
Functions
  • Classroom (F84)
Lever Options
  • Archer, August and Withnell
Cylinders/Cores
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
  • LFIC Zero-BIt or combinated, brass 6 pin cores sold separately
Backsets
  • 2-3/4" (70mm) - Standard
  • 2-3/8" (60mm) - Optional
  • 3-3/4" (94mm) - Optional
  • 5" (128mm) - Optional
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols
Features
  • No exposed mounting screws
  • Non-handed
  • Free Wheeling Levers
Keyway
  • Schlage C - Standard; Other keyways optional
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Deadlocking latchbolt prevents manipulation when door is closed
  • 3/4" (19 mm) throw latchbolt available
Notes
  • SFIC option available (Cores are sold separately - standard)
  • LFIC option available (Cores sold separately - standard)
Options
  • Lead Lining
  • Tactile Warning
  • Split Finish
Rose Diameter
  • 3-17/32" (90 mm)
Standard Door Prep
  • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Lifetime


Downloads:

Note: SFIC option available (Cores are sold separately - standard), LFIC option available (Cores sold separately - standard)
