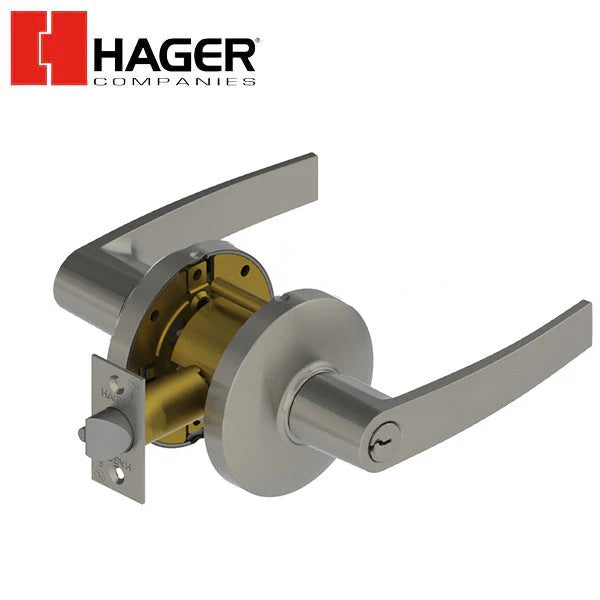

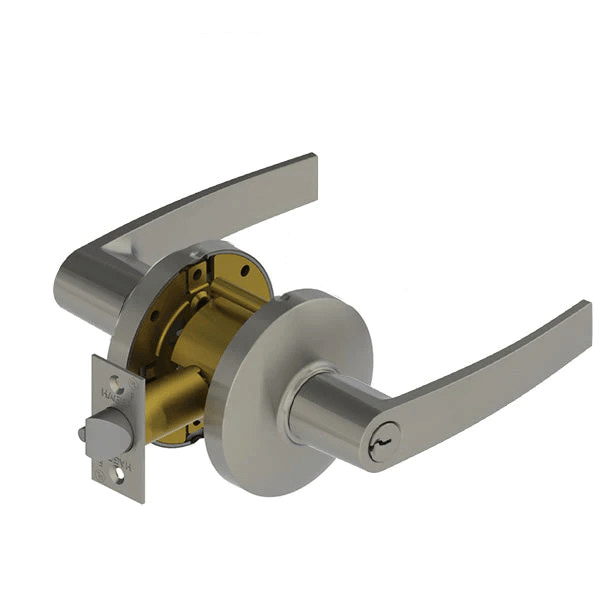

Hager - 3480 - Lever - Storeroom - 2-3/4" - Satin Chrome - Archer - Schlage C
Hager - 3480 - Lever - Storeroom - 2-3/4" - Satin Chrome - Archer - Schlage C

Hager - 3480 - Lever - Storeroom - 2-3/4" - Satin Chrome - Archer - Schlage C

In Stock
SKU: HGR-348002N26D000A0NA00CL
NSID: 75906

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
$548.37
$402.29
$548.37

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


Specifications:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description
Backsets
  • 2-3/4" (70mm)
Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #17-1226.23
Cylinders/Cores
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6-pin keyed, are available from the factory
  • Zero-bit cylinders will be 6-pin keyed
  • SFIC uncombinated or combinated, brass 6-pin or 7-pin cores sold separately
  • LFIC 0-BIt or combinated, brass 6-pin cores sold separately
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, bronze, and stainless steel
  • The Lever is zinc-based and plated to match BHMA symbols
Functions
  • Storeroom (F86)
Keyway
  • SFIC No Core, Schlage C
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Deadlocking latch bolt prevents manipulation when the door is closed
Lever Options
  • Archer
Rose Diameter
  • 3-17/32" (90 mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike, Square Corner
Voltage
  • 3480EL/3480EU
  • 12-24V AC/DC (250mA Max in rush, 10mA Max holding)
  • 125 VAC (3 AMP maximum current)
  • 30 VDC (2 AMP maximum current)
  • Wire leads (22 AG current)
Warranty
  • Lifetime Manufacturer's warranty on mechanical components
