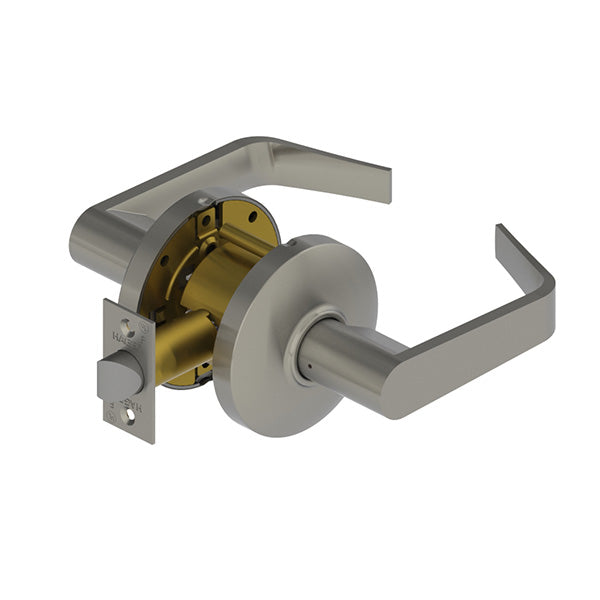

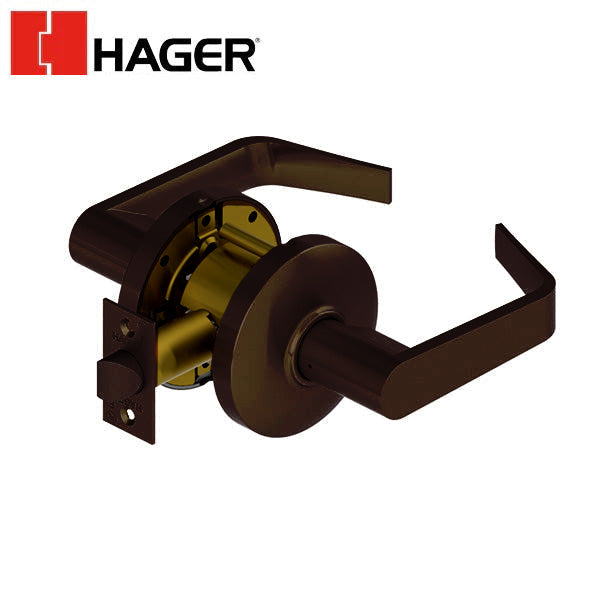

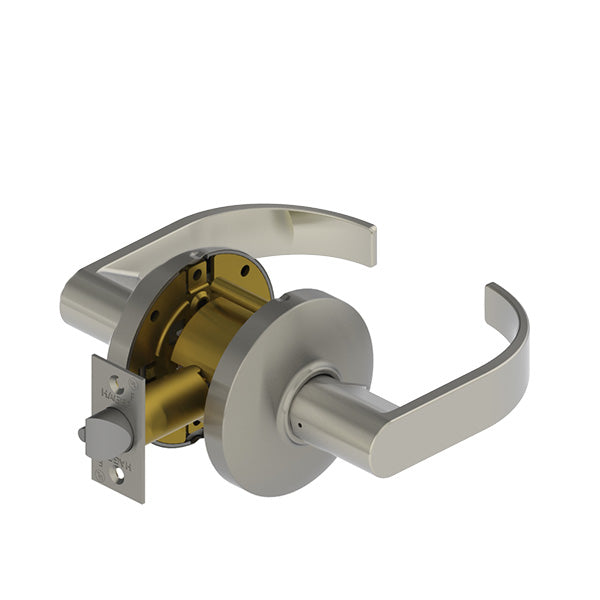

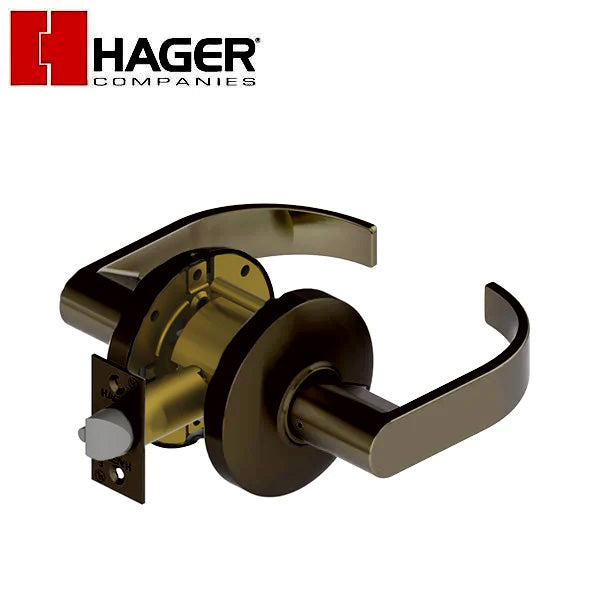

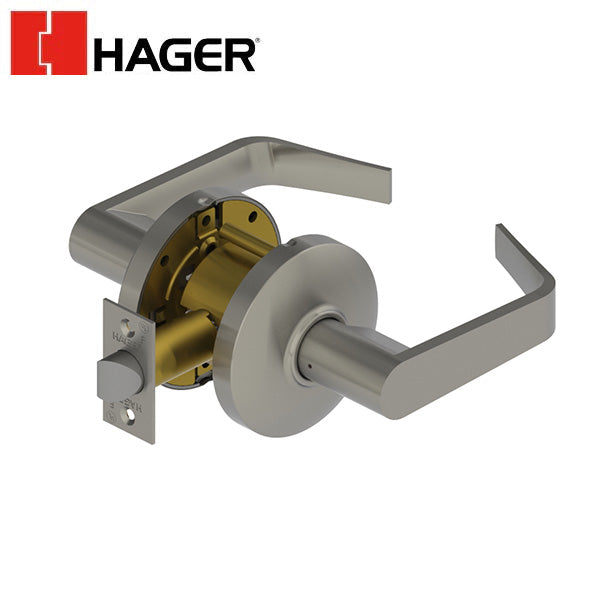

Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trim

Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trim

In stock
SKU HGR-351002N26D000A00A NSID 65592
$153.64$184.37On Sale You save $30.73 (17%)
Get it shipped Today! Order within:
Finish
Lever


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specs

    Certifications
    • BHMA Certified ANSI A156.2, Series 4000 Grade 2
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • ANSI A250.13 Severe Windstorm ComponentUL10C Positive Pressure Rated
    Functions
    • Passage (F75)
    Lever Options

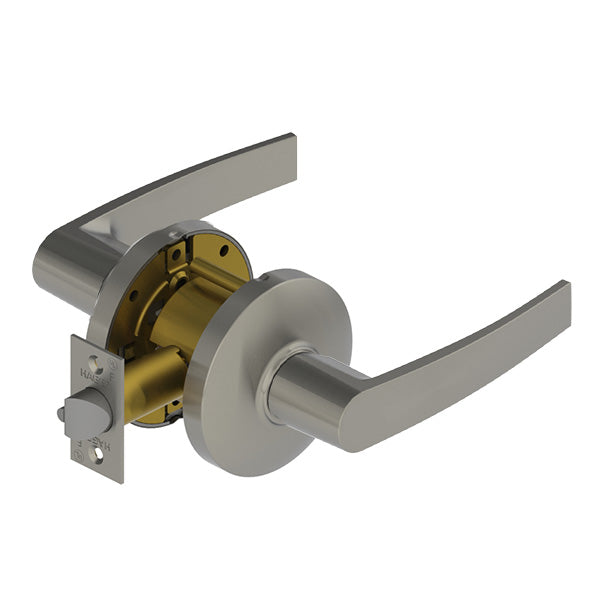

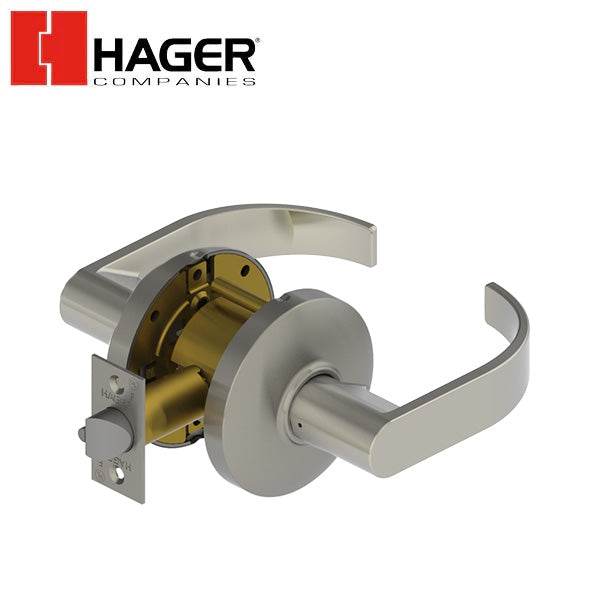

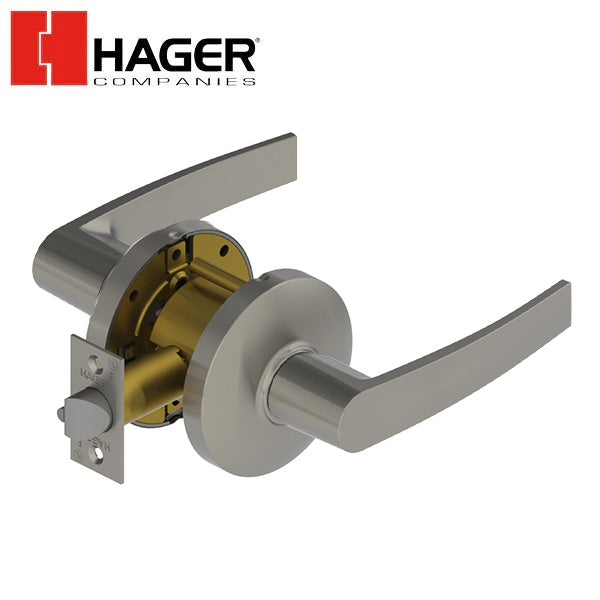

    • Archer, August and Withnell
    Backsets
    • 2-3/4" (70mm)
    • 2-3/8" (60mm)
    • 3-3/4" (94mm)
    • 5" (128mm)
    Door Thickness
    • 1-3/8" - 2" (35 mm - 51 mm)
    Exposed Trim
    • Wrought Brass, Bronze, and Stainless Steel
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
    • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
    Notes
    • No exposed mounting screws
    • Non-handed
    Options
    • Lead Lining
    • Tactile Warning
    • Split Finish
    Rose Diameter
    • 3-11/32" (85 mm)
    Strikes
    • 3935 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Lifetime
