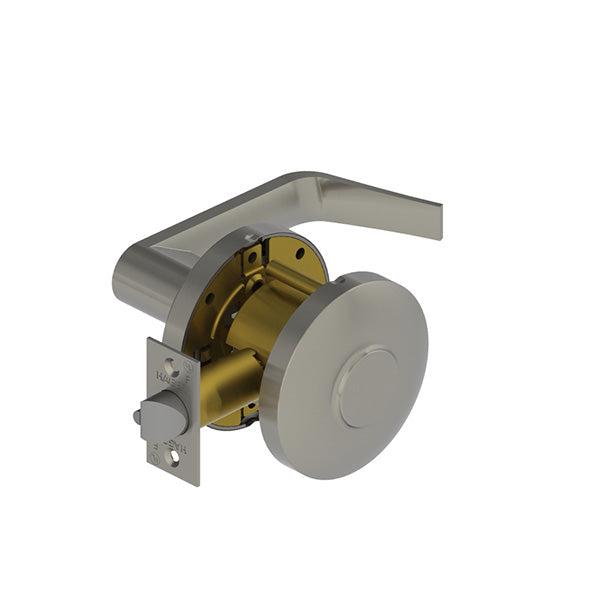

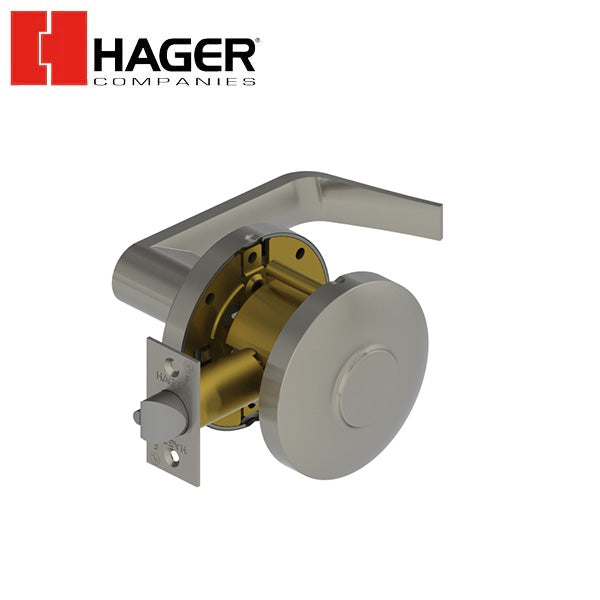

Hager - 3525 - Lever - Exit - 2-3/4" Satin Chrome - Withnell Lever
Hager - 3525 - Lever - Exit - 2-3/4" Satin Chrome - Withnell Lever

Hager - 3525 - Lever - Exit - 2-3/4" Satin Chrome - Withnell Lever

Available to Order
SKU: HGR-352502N26D000W00A
NSID:

Please Note: This product has a lead time

$93.07
$203.76
$93.07


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 2
Functions
  • Exit (F111)
Lever Options
  • Archer, August and Withnell
Backsets
  • 2-3/4" (70mm)
  • 2-3/8" (60mm)
  • 3-3/4" (94mm)
  • 5" (128mm)
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed
Notes
  • No exposed mounting screws
  • Non-handed
Options
  • Lead Lining
  • Tactile Warning
  • Split Finish
Rose Diameter
  • 3-11/32" (85 mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Lifetime


Downloads:

Note: No exposed mounting screws, Non-handed
Compatibility

Compatible With

Downloads
Notes
Note: No exposed mounting screws, Non-handed
