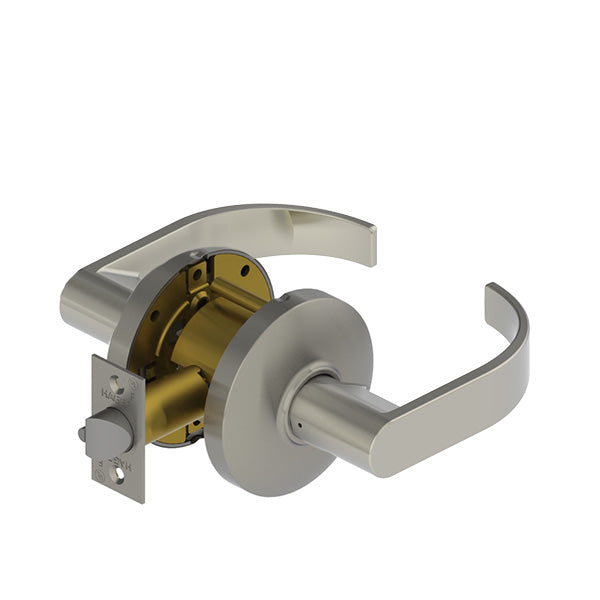

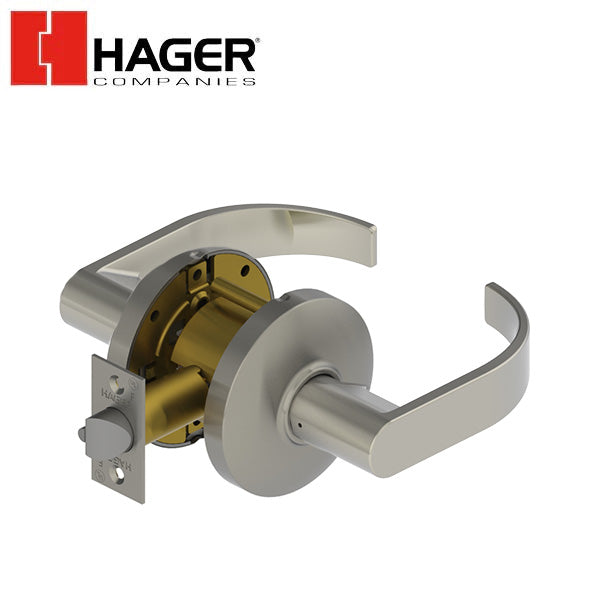

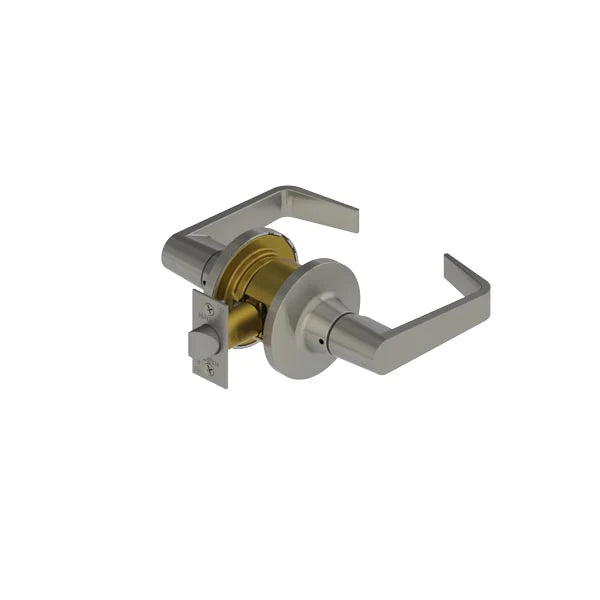

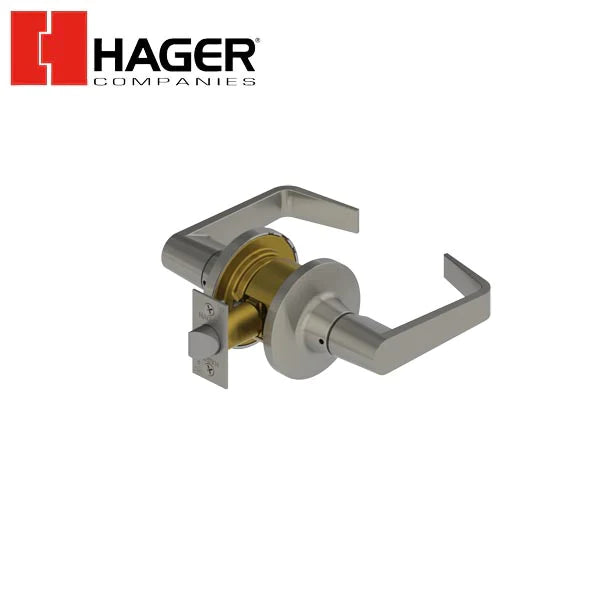

Hager - 3610 - Lever - Passage - Adjustable 2-3/8 To 2-3/4 Satin Chrome - Optional Lever

Hager - 3610 - Lever - Passage - Adjustable 2-3/8 To 2-3/4 Satin Chrome - Optional Lever

In stock
SKU HGR-361000R26D000A00A NSID 65629
$105.56$126.67On Sale You save $21.11 (17%)
Get it shipped Today! Order within:
Lever


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.2, Series 4000, Grade 2
    Functions
    • Passage (F75)
    Lever Options
    • Archer, August and Withnell
    Backsets
    • Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
    Door Thickness
    • 1-3/8" - 1-3/4" (35 mm - 45 mm)
    Exposed Trim
    • Rose - Wrought brass, bronze, and stainless steel
    • Lever - Zinc based, plated to match BHMA symbols
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1" x 2-1/4" (25 mm x 57 mm) faceplate
    • Square corner faceplate standard, round corner optional
    Notes
    • No exposed mounting screws
    • Non-handed
    Options
    • Split Finish
    Rose Diameter
    • 2-15/16" (75 mm)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Five-Year
