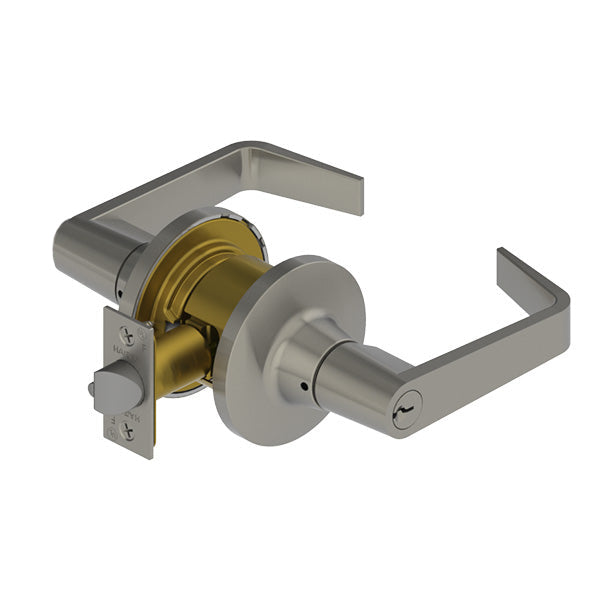

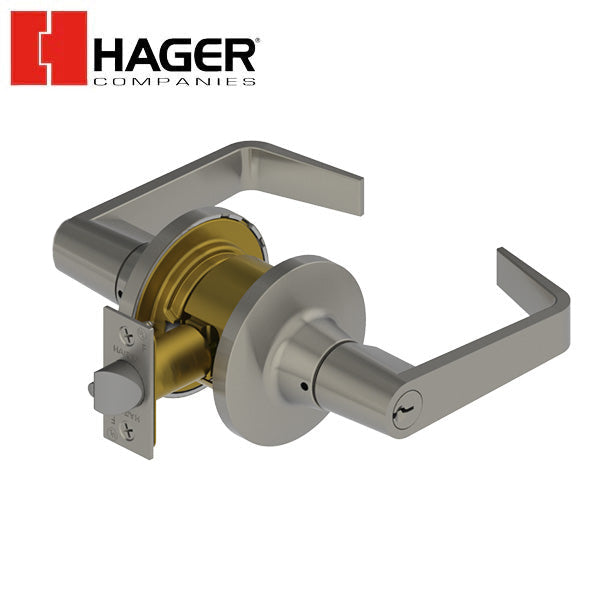

Hager - 3680 - Lever - Storeroom - 2-3/8-2-3/4 - Satin Chrome - Withnell Lever - Schlage C Keyway
Hager - 3680 - Lever - Storeroom - 2-3/8-2-3/4 - Satin Chrome - Withnell Lever - Schlage C Keyway

Hager - 3680 - Lever - Storeroom - 2-3/8-2-3/4 - Satin Chrome - Withnell Lever - Schlage C Keyway

In Stock
SKU: HGR-368000R26D000WCDA
NSID:

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
$143.46
$190.28
$143.46

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 2
Functions
  • Storeroom (F86)
Lever Options
  • Archer, August and Withnell
Cylinders/Cores
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Backsets
  • Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
Door Thickness
  • 1-3/8" - 1-3/4" (35 mm - 45 mm)
Exposed Trim
  • Rose - Wrought brass, bronze, and stainless steel
  • Lever - Zinc based, plated to match BHMA symbols
Keyway
  • Schlage C - Standard, other keyways optional
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate
  • Deadlocking latchbolt prevents manipulation when door is closed
  • Square corner faceplate standard, round corner optional
Notes
  • No exposed mounting screws
  • Non-handed
Options
  • Split Finish
Rose Diameter
  • 2-15/16" (75 mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Five-Year


Downloads:

Note: No exposed mounting screws, Non-handed
Compatibility

Compatible With

Downloads
Notes
Note: No exposed mounting screws, Non-handed
