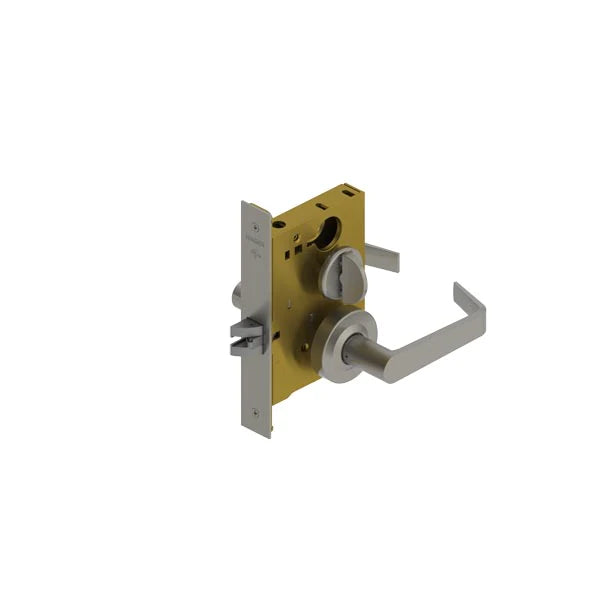

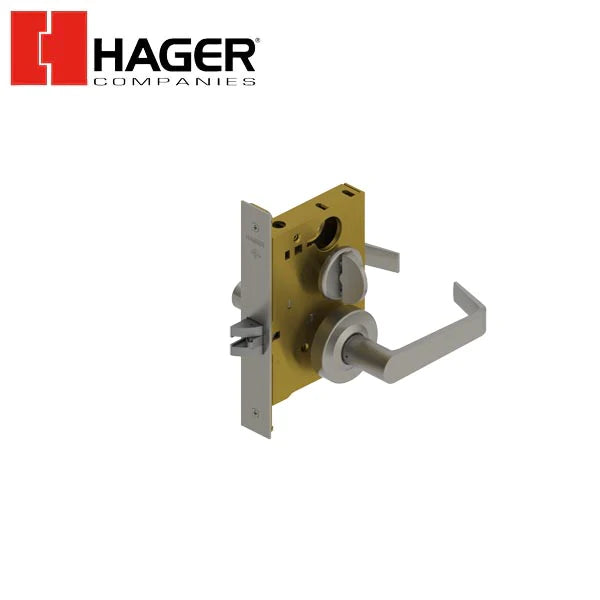

Hager - 3840 - Mortise Lever - Privacy - Sectional - Satin Chrome - Withnell

Hager - 3840 - Mortise Lever - Privacy - Sectional - Satin Chrome - Withnell

In stock
SKU HGR-3840S26D000W NSID 65637
$417.57$501.08On Sale You save $83.51 (17%)
Get it shipped Today! Order within:


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.13, Series 1000, Grade 1
    Functions
    • Privacy (F22)
    Lever Options
    • Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell
    CTC Length
    • 3-5/8" (92mm)
    Backsets
    • 2-3/4" (70mm)
    Door Thickness
    • 1-3/4" - 2" (45 mm - 51 mm) Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep
    Exposed Trim
    • Cast Zinc -Standard
    • Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only
    Latchbolt Type
    • 3/4" (19 mm) throw with anti-friction tongue, all stainless steel
    Notes
    • Emergency release on exterior side via supplied key
    • No exposed mounting screws
    • Concealed thru-bolts
    • Body is easily field reversible (shipped LHR by default)
    • Self adjusting case for beveled doors
    Options
    • Tactile Warning
    • Lead Lining
    • Split Finish
    • Factory Handing Available (if specified)
    Rose Diameter
    • 2-7/16" (62mm)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Lifetime
