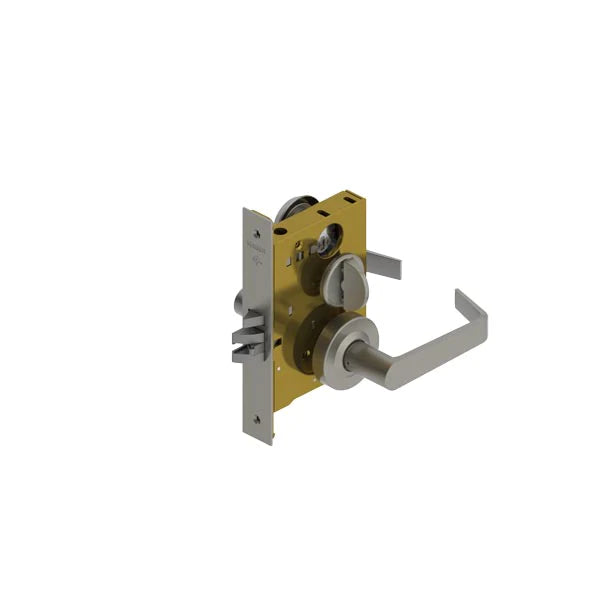

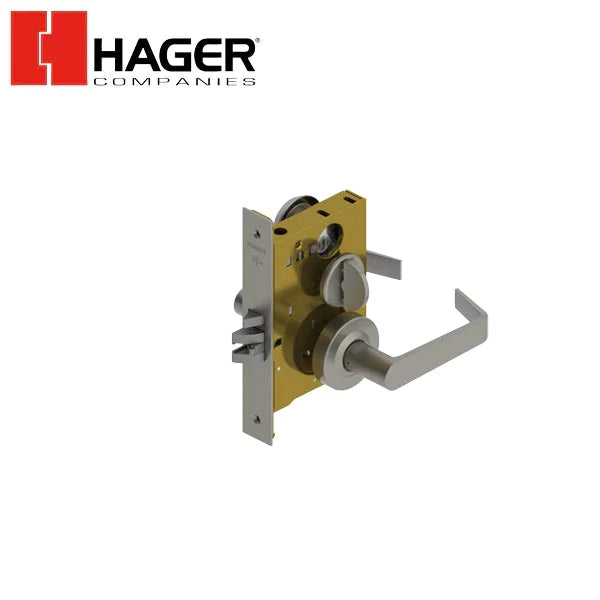

Hager - 3850 - Mortise Lever - Office - Sectional - Satin Chrome - Withnell
Hager - 3850 - Mortise Lever - Office - Sectional - Satin Chrome - Withnell

Hager - 3850 - Mortise Lever - Office - Sectional - Satin Chrome - Withnell

Available to Order
SKU: HGR-3850S26D000W
NSID:

Please Note: This product has a lead time

$254.06
$556.24
$254.06


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.13, Series 1000, Grade 1
Functions
  • Office
Lever Options
  • Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell
Cylinders/Cores
  • Brass - keyed different - Schlage C keyway - standard
  • Drilled 6-Pin, Keyed 5-Pin - standard
  • Other keying options, including keyed 6-pin, available from factory
  • Zero bit cylinders will be 6 pin keyed - standard
  • SFIC mortise housings available
  • SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately - standard
  • LFIC mortise housings available
  • LFIC zero bitted or combinated, brass 6-pin sold separately – standard. Schlage C keyway only.
  • Schlage "L" cam is used standard on Hager mortise locks
CTC Length
  • 3-5/8" (92mm)
Backsets
  • 2-3/4" (70mm)
Door Thickness
  • 1-3/4" - 2-1/2" (45 mm - 64 mm)
  • Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep
Exposed Trim
  • Cast Zinc -Standard
  • Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only
Keyway
  • Schlage C - Standard, other keyways optional
Latchbolt Type
  • 3/4" (19 mm) throw with anti-friction tongue, all stainless steel
Notes
  • No exposed mounting screws
  • Concealed thru-bolts
  • Body is easily field reversible (shipped LHR by default)
  • Self adjusting case for beveled doors
Options
  • Tactile Warning
  • Lead Lining
  • Split Finish
  • Factory Handing Available (if specified)
  • Request to Exit (RX)
Rose Diameter
  • 2-7/16" (62mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Lifetime
