Hager - 47KE - 4700 Series - Exit Trim - Withnell Lever - SFIC Prep - Aluminum Finish
Available to Order
SKU:
HGR-47KE-WTN-ALM-SFIC
NSID:
76481
- $198.65
-
$238.38 - $198.65
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

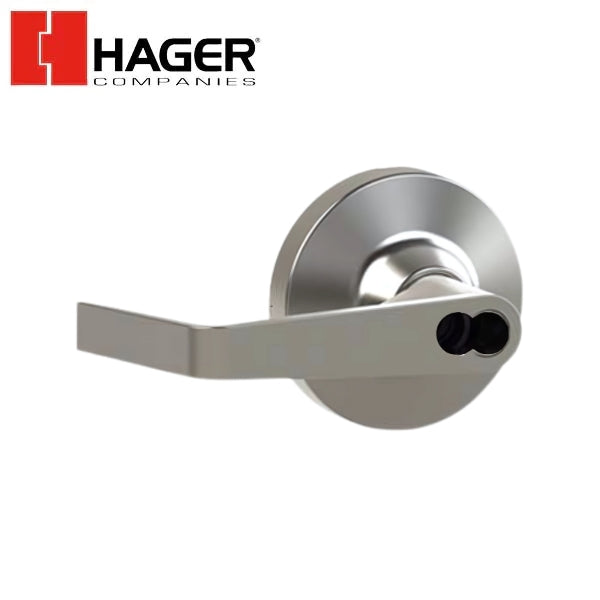

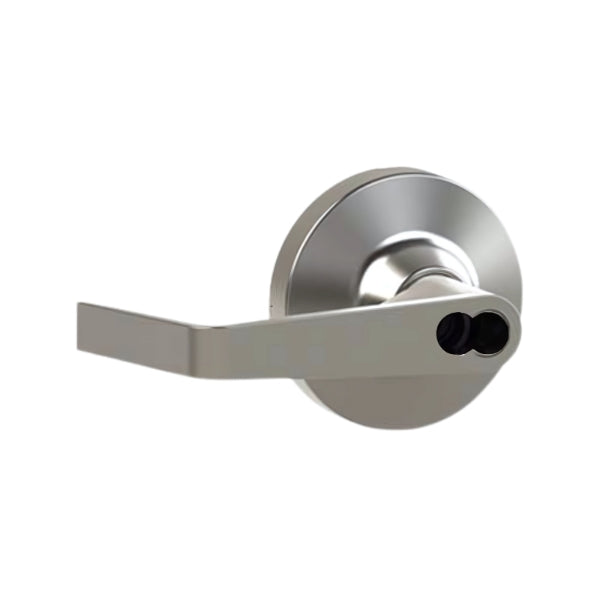

This Hager 47KE-WTN-ALM-SFIC is a key-in-lever entrance trim designed for use with Hager's 4700 Series exit devices. It features the Withnell lever style and is prepped for a Small Format Interchangeable Core (SFIC), though the core is not included. The trim comes in a sprayed aluminum finish, offering both durability and a sleek appearance.
Features:
- ANSI Function: 08 (Key locks or unlocks lever)
- Lever Design: WTN Withnell
- Rose Diameter: 3-3/8″
- Projection: 3-1/16″
- Standard Door Prep: 2-1/8″ diameter (cross bore), Turtle Prep compatible ANSI A156.115
| Specification | Details |
|---|---|
| Brand | Hager |
| Finishes | ALM Sprayed Aluminum |
| Function | Entry / Classroom |
| Usage | Medium Duty |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Lever Design | WTN (Withnell) |
| Cylinder | Housing for SFIC (Small Format Interchangeable Core) Less Core |
| Hand | Non-handed |
| Warranty | 5 Years |
